Tripp Lite series Standby UPS 450VA 255W – 8 5-15R Outlets, 120V, 50/60 Hz, 5-15P Plug, Desktop/Wall Mount

$90.78

Brand: Tripp Lite
Part Number (MPN): BC450
UPC / GTIN: 037332238283
Datasheet: PDF

Tripp Lite series Standby UPS 450VA 255W – 8 5-15R Outlets, 120V, 50/60 Hz, 5-15P Plug, Desktop/Wall Mount

Toronto Stock: 7 available
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
  • Battery backup allows time to save files and safely shut down during blackouts
  • Alarm remains silent in battery mode; sounds to report low battery and overloads
  • High >98% efficiency reduces BTU emissions, saves power and lowers energy costs

Features

Compact Desktop 450VA/255W Battery Backup for PCs, Home Theater and Digital SignageThe standby BC450 UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The eight-outlet 120V battery backup is ideal protection for your home office, media center or professional kiosk, security and small-business applications, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems, phone systems, wireless hotspots and digital signage equipment.
Allows Time to Back Up Critical Files During a Blackout Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the BC450 should keep an energy-efficient desktop computer with small LCD monitor powered as long as 18 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.

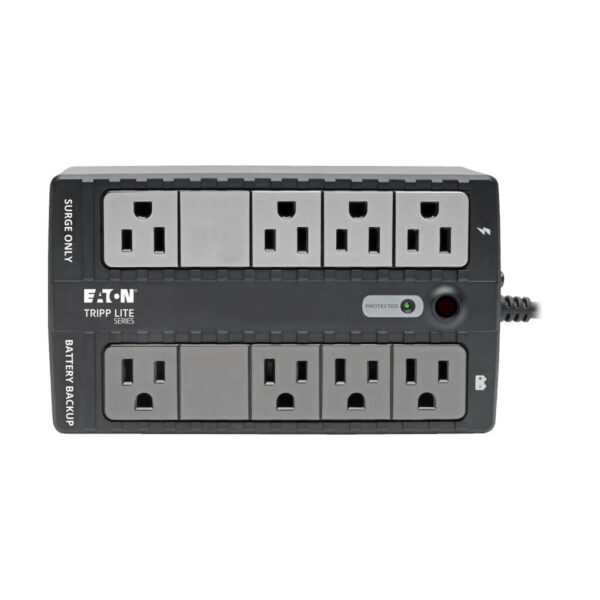

8 NEMA 5-15R Outlets Protect Your Computer and Other Connected ComponentsFour 5-15R outlets provide battery backup and surge protection for your computer, monitor and other crucial components. The other four 5-15R outlets provide surge suppression only for printers, scanners, speakers and other desktop equipment regarded as non-essential during a blackout.
316 Joules Fight Back Against Unexpected Power SurgesA 316-joule surge suppression rating protects connected components from the harmful effects of power surges.
Combats Electromagnetic Interference That Can Harm EquipmentVarious electromagnetic and radio sources found in virtually every home and business can cause disruptive interference on the AC line. Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a common cause of performance problems and can lead to incremental hardware damage, data corruption and audio/video transmission problems. The BC450 incorporates technology that filters out disruptive line noise so that it won’t affect your equipment.
Home-Friendly Alarm and Diagnostic LED Report Real-Time StatusThe UPS remains silent in both line and battery backup modes. The alarm sounds only to report low battery, excessive load or fault condition. An LED indicator points out operating mode and fault status at a glance.
High-Efficiency Operation Helps You Save Energy and Cut CostsA high >98% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.

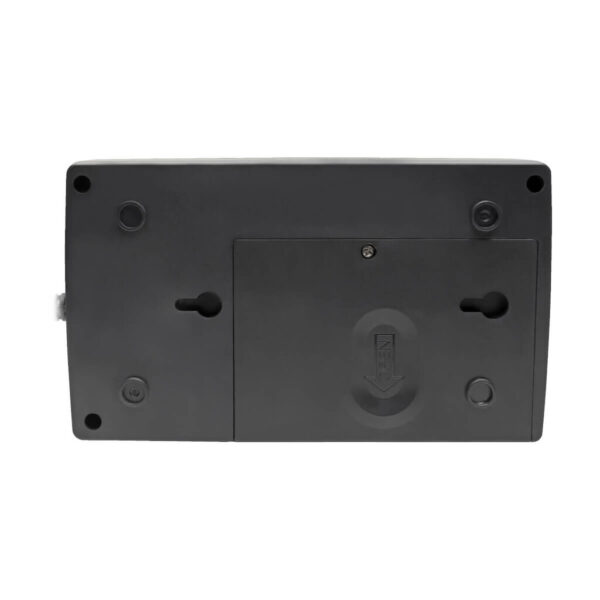

Compact Housing for Convenient Installation Almost AnywhereThe space-saving ABS housing fits on a desktop, shelf or anywhere else convenient to your workstation or home theater. Keyhole mounting tabs on the rear allow easy wall-mount installation. The five-foot power cord with NEMA 5-15P plug connects to any compatible AC outlet.

Package Includes

  • BC450 120V 450VA 255W Standby UPS with 8 Outlets
  • Owner’s manual
Weight 4.65 lbs
Dimensions 10.86 × 5.67 × 7.36 in
UPC Code

037332238283

Cord Length

4.92

Max Input Amps

6

Output (W)

255

Output VA

450

Joule Rating

316

Brand

UPS Type

Standby

Input Phase

Single-Phase

Rated input current (Maximum Load)

6A

Nominal Input Voltage(s) Supported

120V AC

UPS Input Connection Type

5-15P

Input Circuit Breakers

7A

UPS Input Cord Length (ft.)

5

UPS Input Cord Length (m)

1.5

Output Capacity (kVA)

0.45

Output Capacity (kW)

0.255

Nominal Voltage Details

120v nominal output in battery mode

Frequency Compatibility

50 / 60 Hz

Output Voltage Regulation (Line Mode)

120V (±20%)

Output Voltage Regulation (Battery Mode)

120V (±10%)

UPS Output Receptacles (Surge Suppression Only)

4 UPS outlets, 4 surge-only outlets

Output AC Waveform (AC Mode)

Pure Sine wave

Output AC Waveform (Battery Mode)

PWM sine wave

Nominal Output Voltage(s) Supported

110V; 115V; 120V

Output Receptacles

(8) 5-15R

Battery Type

Valve Regulated Lead Acid (VRLA)

Runtime Full Load (min.)

1.5 min. (255W)

Runtime Half Load (min.)

6.9 min. (128W)

DC System Voltage (VDC)

12

Battery Recharge Rate (Included Batteries)

6.5 hours (10% to 90%)

Battery Access

Battery access door

Battery Replacement Description

Replaceable internal batteries (see manual)

Switches

Power off/on switch

Audible Alarm

UPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace-battery conditions

LED Indicators

1 Status LED reports operating mode and fault status

EMI / RFI AC Noise Suppression

Yes

AC Suppression Joule Rating

316

AC Suppression Response Time

Instantaneous

Primary Form Factor

Desktop

Rack Height

0U

Installation Form Factors Supported with Included Accessories

Tower; Ultra-compact desktop; Wallmount

Primary UPS Depth (mm)

185

Primary UPS Height (mm)

105

Primary UPS Width (mm)

110

Shipping Weight (kg)

2.11

UPS Housing Material

ABS

UPS Power Module Weight (kg)

1.80

Unit Weight (kg)

1.80

Operating Temperature Range

32° to 104°F (0° to 40°C)

Storage Temperature Range

5° to 113°F (-15° to 45°C )

Relative Humidity

0-90% non-condensing

AC Mode BTU / Hr. (Full Load)

13.1

AC Mode Efficiency Rating (100% Load)

>98%

Network Management Card Description

Network management not supported

Communications Interface

None

Transfer Time

6 milliseconds typical (10 milliseconds max)

Low Voltage Transfer to Battery Power (Setpoint)

95

High Voltage Transfer to Battery Power (Setpoint)

145

Cold Start (Startup in Battery Mode During a Power Failure)

Cold-start operation supported

High Availability UPS Features

Surge/noise protection

Green Energy-Saving Features

Greater than 95% efficiency – GREEN UPS

UPS Applications

Computer/Peripherals; Retail/Point of Sale; Hospitality

Product Certifications

ICES (Canada); RETIE (Colombia); CSA (Canada); CAN/CSA-C22.2 No. 107.3 (Canada); UL 1778

Product Compliance

RoHS; FCC Part 15 Class B (USA)

Product Warranty Period (U.S. & Canada)

2-year limited warranty

Connected Equipment Insurance (U.S., Canada & Puerto Rico)

$100,000 Ultimate Lifetime Insurance
