Tripp Lite series HDBaseT HDMI Over Cat5e/6/6a Extender Kit with Serial and IR Control, 1080p, Up to 500 ft. (152.4 M), TAA

Quick Specs

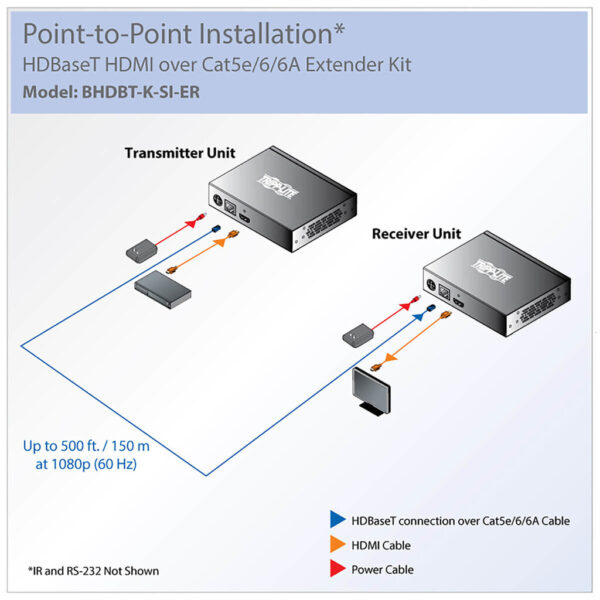

• Extends a 1080p @ 60 Hz signal up to 500 feet (150 m)
• Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
• Controls RS-232 serial devices at baud rates up to 115 Kbps
• Allows you to control a Blu-ray™ player from a remote monitor
• Plug and play—no software or drivers to install

Features

Supports the Latest Video and Audio Applications

• Extends a High Definition 1920 x 1080 (1080p) @ 60 Hz signal up to 500 feet (150 m)
• Accepts up to five BHDBT-TR-SI-ER transceivers and six total monitors to further expand the range up to 3,000 feet (900 m)
• Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio
• Supports 36-bit Deep Color (12 bits per channel), CEC pass-through, 3D video, EDID and HDCP

Allows You to Control Other Display Devices

• 2-way 39 KHz IR Remote Control functionality lets you control your Blu-ray player with its remote while standing at the remote monitor (and vice versa)
• RS-232 serial port supports 115 Kbps full-duplex baud rates for scanners and touchscreen monitors

Easy to Set Up and Use

• Plug-and-play engineering means no software or drivers to download and install
• Ready to use in minutes
• Included mounting hardware lets you install each unit on a wall, rack or pole

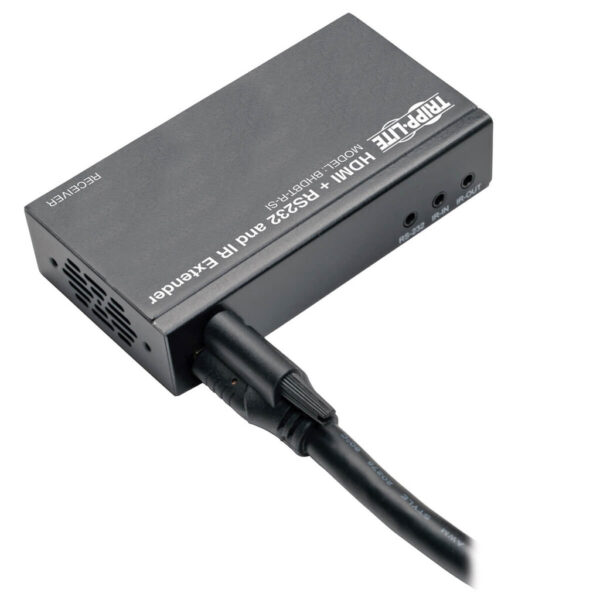

• Locking HDMI ports on both the transmitter and receiver prevent cables from coming loose or disconnected, ensuring an intact signal

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

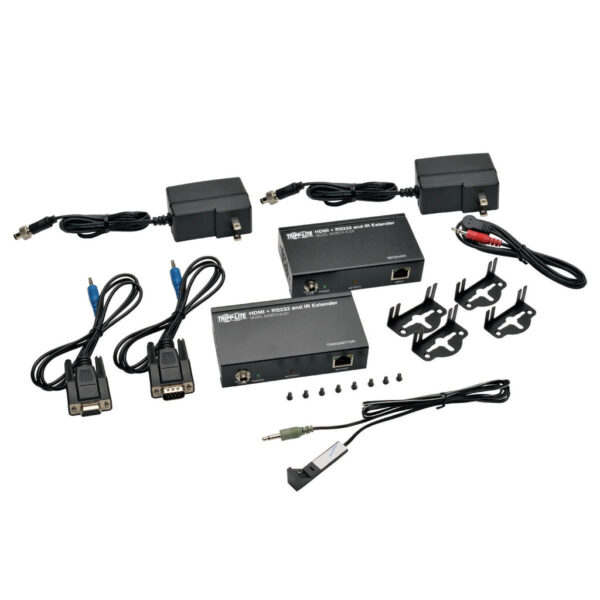

Package Includes

• Transmitter unit
• Receiver unit
• IR-IN cable
• IR-OUT cable
• 3.5 mm Male to DB9 Female adapter cable
• 3.5 mm Male to DB9 Male adapter cable
• (2) External Power Supplies with NEMA 1-15P Plug(Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V, 3A)
• Mounting hardware
• Owner’s manual
