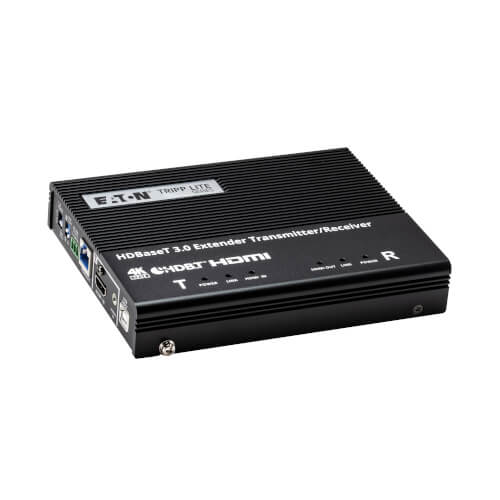

Tripp Lite series HDBaseT 3.0 Transmitter/Receiver, HDMI 4K 60 Hz (4:4:4), RS-232, IR Control, Up to 328 ft. (100 m), TAA

Quick Specs

• Latest HDBaseT 3.0 technology allows transmission or reception of 4K AV signals
• Supports UHD resolutions up to 4K @ 60 Hz (4:4:4) with High Dynamic Range (HDR)
• HDMI audio switch allows easy audio embedding/de-embedding and audio bypass
• Easy to install on a wall using the built-in mounting brackets
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Features

Designed with the Newest HDBaseT 3.0 Technology
This 4K video transceiver performs the functions of either a transmitter or receiver, depending on your AV solution. Using a single Cat6a cable (HDBaseT3 certified) with zero latency, the BHDBT3-TR extends true 4K uncompressed video and audio up to 328 feet (100 meters) with the latest HDBaseT standards. It also transmits Ethernet, RS-232 serial, USB and IR control up to 328 feet, making it ideal for conference halls, auditoriums, lecture halls, museums, exhibition rooms and anywhere else that requires high-quality transmission and an easy-to-use application.

Transmits 4K Video with HDR and 4:4:4 Color
Using an HDBaseT3-certified Cat6a cable with no latency, the BHDBT3-TR extends Ultra HD 4K resolutions up to 4096 x 2160 at 60 Hz. It supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.3 encryption allows you to stream 4K Amazon and Netflix content with no complications. This transceiver also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

One Transceiver Handles Multiple Functions for Streamlined Performance
In addition to 4K video, the BHDBT3-TR also extends bi-directional RS-232 serial, full-range IR remote control, Gigabit Ethernet and USB 2.0 up to 328 feet (100 meters). This allows connection of barcode scanners, Ethernet routers and a wide range of USB peripherals, among other components.

Stable HDMI Signal Transmission
The BHDBT3-TR is equipped with HDMI audio embedded/de-embedded functions, allowing you to flexibly adapt suitable audio/video combinations based on different environments. To ensure nonstop operation, a fanless fin heat sink prevents overheating and elevates the transceiver’s reliability.

Avoid Signal Disruptions with Extra-Secure Locking HDMI Connectors
Having a cable come loose accidentally can cause AV signal loss. Universal HDMI cable locks help prevent accidental disconnection and signal disruption. This is especially helpful for ensuring components stay attached in difficult-to-access installations.

Plug-and-Play Convenience and Easy Installation
The BHDBT3-TR requires no software or drivers to install, making setup simple. It mounts to a wall using the built-in brackets.

TAA-Compliant for GSA Schedule Purchases
The BHDBT3-TR is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

System Requirements

• Source device with HDMI port (Blu-ray player, laptop, PC)
• Display device(s) with HDMI port (HDTV, projector, monitor)
• HDBaseT3-certified Cat6a cable with zero latency is recommended to ensure maximum video quality

Package Includes

• BHDBT3-TR HDBaseT 3.0 Transceiver
• RS-232 terminal block
• (2) Wall-mount brackets
• (4) Foot pads
• USB-B to USB-A cable
• Power adapter
• C13 to NEMA 5-15P power cord
• C13 to BS1363 power cord
• C13 to Schuko power cord
• IR emitter
• IR receiver
• Owner’s manual
• Quick Start Guide
