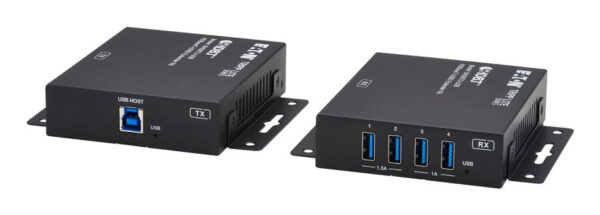

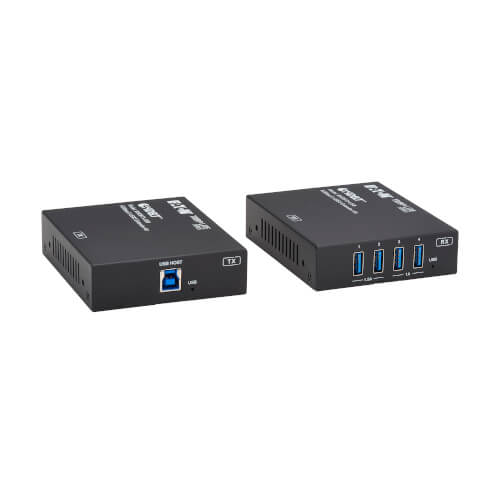

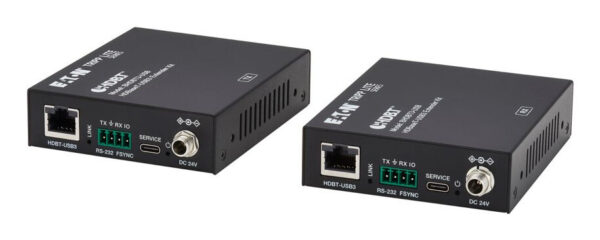

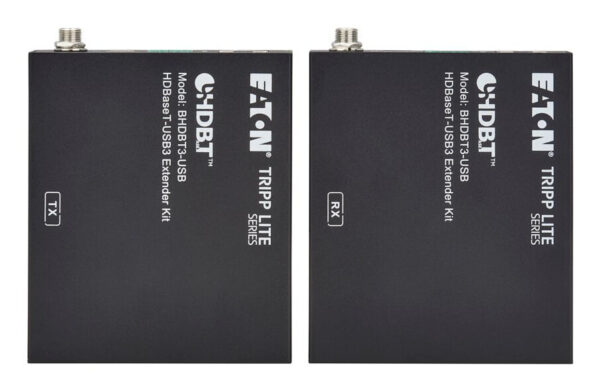

Tripp Lite series HDBaseT-USB3 over Cat6a Extender Kit, 4 USB-A 3.2 Gen 1 Ports, PoC, RS-232, Up to 328 ft. (100 m)

Quick Specs

• Latest HDBaseT technology allows placement of USB devices up to 100 m (328 ft.) from source

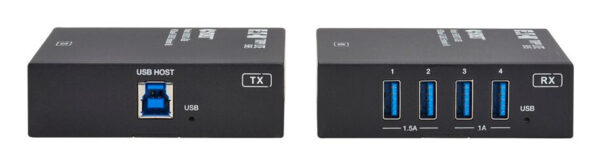

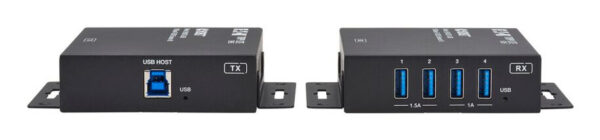

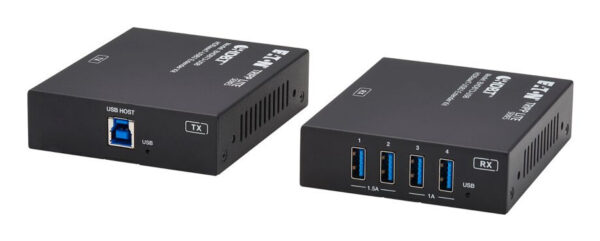

• 4 USB-A ports support USB 3.2 Gen 1 data transfer rates up to 5 Gbps
• Power over Cable (PoC) powers both the transmitter and receiver from either end

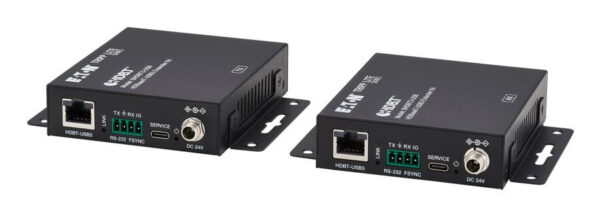

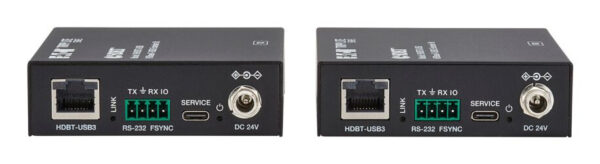

• Supports RS-232 passthrough and FSYNC GPIO passthrough for industry camera use
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Features

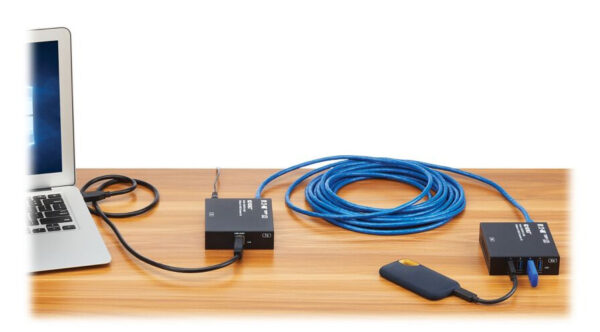

HDBaseT Extender Kit Allows Installation of USB Devices Up to 100 m (328 ft.) from the Source
This USB transmitter and receiver use HDBaseT technology to extend and expand the potential of your USB devices. Using a single Cat6a cable, the BHDBT3-USB extends four USB peripherals up to 328 feet (100 meters), giving you more flexibility in placing webcams, interactive whiteboards, security and surveillance equipment and external data storage devices, among others.

Designed with the Newest HDBaseT 3.0 Technology
The BHDBT3-USB extension kit uses the latest Valens chipset to provide a modern solution to USB extension. It supports USB 3.2 Gen 1 data transfer rates up to 5 Gbps and is backward compatible with previous USB generations. It also supports both RS-232 and FSYNC GPIO pass-through, making the BHDBT3-USB ideal for conference halls, auditoriums, lecture halls, museums, exhibition rooms and anywhere else that requires high-quality transmission across long distances.

Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
Bi-directional 24V Power over Cable (PoC) support powers the entire installation over Cat6a cable. Connect the included power supply at either the transmitter or the receiver end. LEDs on both the transmitter and transceiver light up to indicate the system is receiving power and a USB signal is being transmitted. PoC helps you avoid the hassle of a bulky power brick and gives you the freedom to place one end where needed without worrying about finding a nearby AC outlet.

Plug-and-Play Convenience and Easy Installation

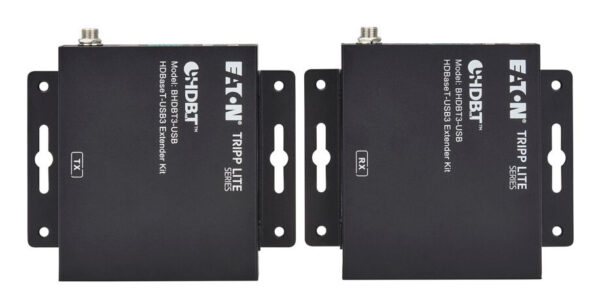

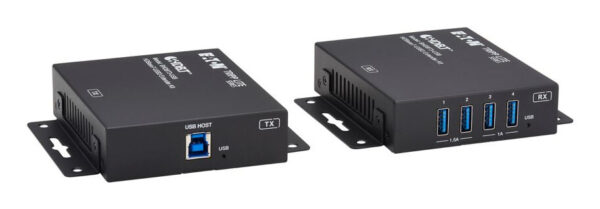

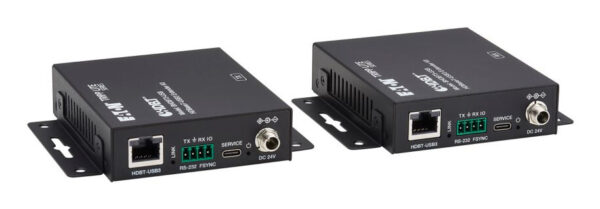

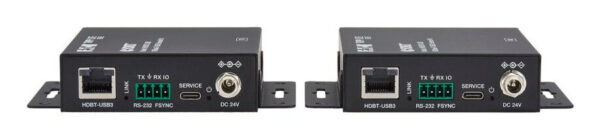

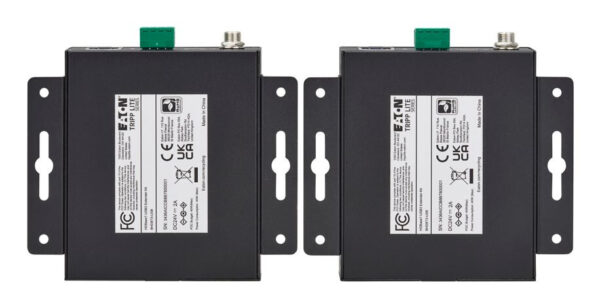

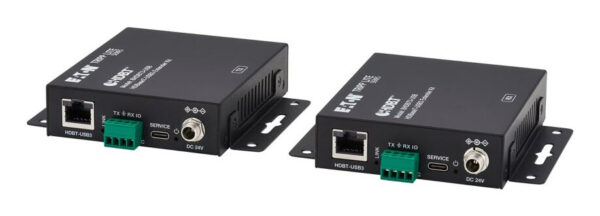

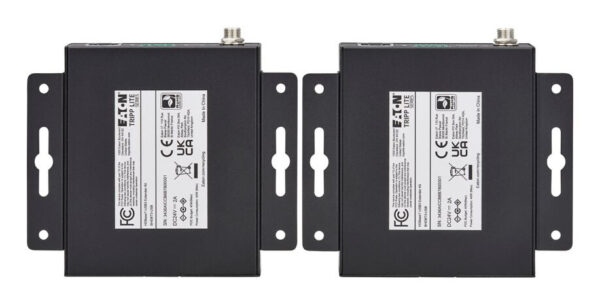

The BHDBT3-USB requires no software or drivers to install, making setup simple. The transmitter and receiver mount to a wall using the included brackets.

System Requirements

• USB 3.2 Gen 1 source device (all connected devices and cabling must support USB 3.2 Gen 1 standards to achieve USB 3.2 Gen 1 speeds)
• Cat6a F/FTP cabling up to 328 ft. (100 m)
• USB peripherals, such as webcams, interactive whiteboards, security and monitoring devices, remote data storage
• AC power outlet on a wall, PDU or UPS system

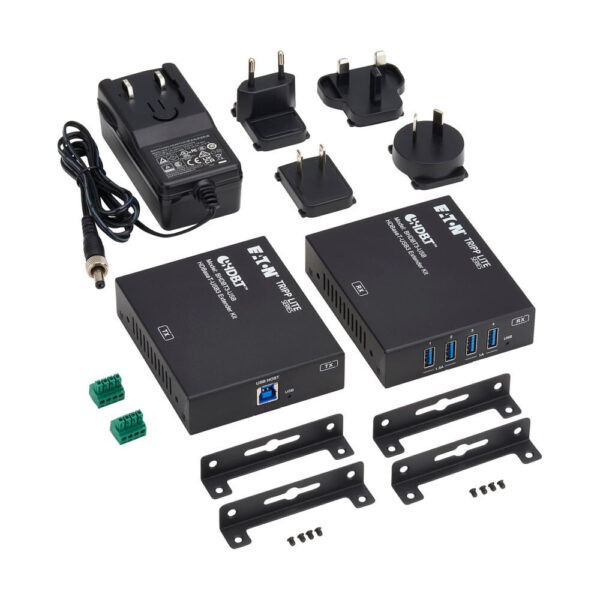

Package Includes

• USB 3.2 Gen 1 transmitter
• USB 3.2 Gen 1 receiver
• Locking power supply (Input: 100–240V, 50/60 Hz, 1.5A; Output: 24V 2A 48W) with 5 ft. (1.5 m) cord
• (4) International power adapters (North America, Australia, Europe, United Kingdom)

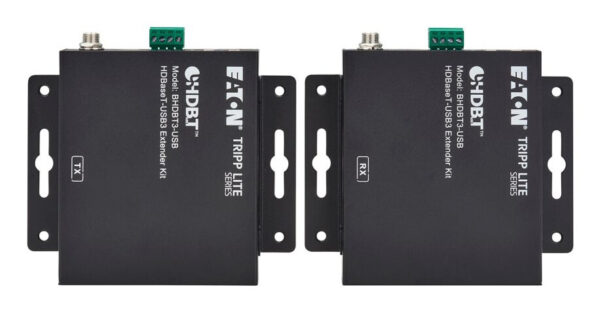

• (2) 3.5 mm Phoenix connectors
• Mounting hardware
• Owner’s manual
