Tripp Lite series External 192V 3U Rack/Tower Battery Pack for Select UPS Systems (BP192V12-3U)

$2,615.83

Brand: Tripp Lite
Part Number (MPN): BP192V12-3U
UPC / GTIN: 037332125903
Datasheet: PDF

Tripp Lite series External 192V 3U Rack/Tower Battery Pack for Select UPS Systems (BP192V12-3U)

Status: On Backorder (Contact us for lead times)
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Extends the runtime of expandable 192V DC UPS Systems
  • Included daisychain connector supports the addition of multiple compatible external battery packs
  • Supports 3U rack-mount installation; 4-post installation accessories included
  • Options for 2-post rack-mount and tower installation available

Overview

The BP192V12-3U rack/tower external battery pack offers extended battery runtime when used in conjunction with compatible UPS systems. Multi-use form factor supports configuration in rack-mount or stacking applications using only 3U. Upright tower configuration supported with optional 2-9USTAND accessory. Includes heavy-gauge cabling with high-current DC connectors for simple installation. Additional output connector allows multiple BP192V12-3U battery packs to be daisy-chained to the UPS for even longer extended run operation.COMPATIBLE UPS SYSTEMS – SU12KRT4UHW, SU5000RT4U, SU5000RT4UHV, SU5000RT4UTF, SU6000RT4U, SU6000RT4UHV, SU6000RT4UHVG, SU6000RT4UHVHW, SU6000RT4UTF, SU6000RT4UTFHW, SU8000RT4U and other UPS systems that specify the use of this battery pack.

Features

  • Offers extended-run UPS operation when used in conjunction with compatible UPS systems
  • Supports stacking or rack-mount installation using only 3 rack spaces (3U)
  • Supports upright tower installation with optional 2-9USTAND accessory (holds 3 battery packs in tower configuration)
  • Set of two input/output connectors allows multiple BP192V12-3U battery packs to be daisy-chained to the UPS for even longer extended run operation
  • Includes heavy-gauge cabling with high-current DC connectors for simple installation

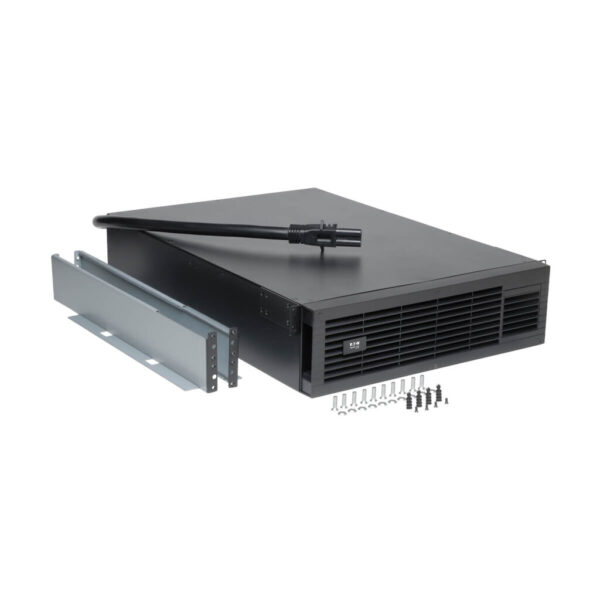

Package Includes

  • BP192V12-3U external battery pack
  • Mounting hardware
  • Warranty information
  • Instruction manual
Weight 200 lbs
Dimensions 33 × 23 × 11 in
UPC Code

037332125903
Cord Length

2.95
Rack Depth

31
Brand

Input Phase

Single-Phase
UPS Input Cord Length (ft.)

3
UPS Input Cord Length (m)

0.9
Overload Protection

50A DC output fuse
Expandable Runtime

Yes
DC System Voltage (VDC)

192
UPS Connection

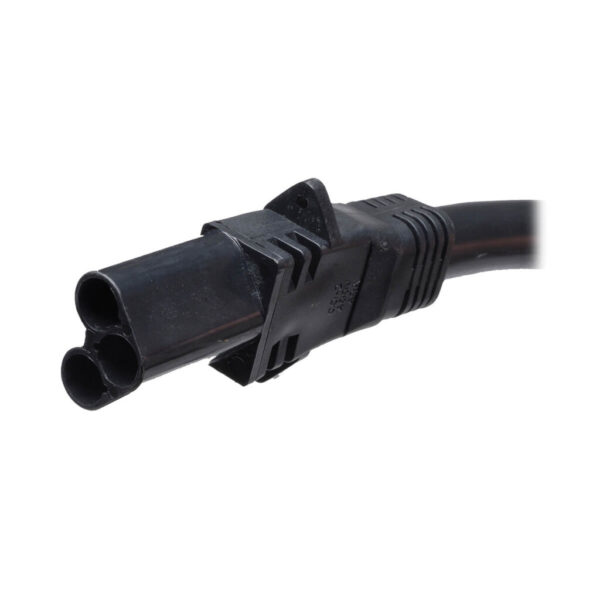

Detachable cable with UPS specific DC connector (90 cm length, 8 gauge)
Typical Battery Lifespan

4-6 years typical (North America)
Material of Construction

Steel
Rack Height

3U
External Battery Pack Form Factor

Rack/Tower
Installation Form Factors Supported with Optional Accessories

2 post rackmount ( 2POSTRMKITHD ); Tower ( 2-9USTAND )
Minimum Required Rack Depth (cm)

78.74
Shipping Dimensions (hwd / cm)

27.94 x 58.42 x 83.82
Shipping Weight (kg)

90.72
Unit Dimensions (hwd / cm)

13,3 x 44,5 x 71,1
Unit Weight (kg)

78.93
Product Compliance

CE (Europe); RoHS
Product Warranty Period (U.S. & Canada)

2-year limited warranty
Optional Coverage

3 year, 5 year, next day and on-site warranty coverage available
