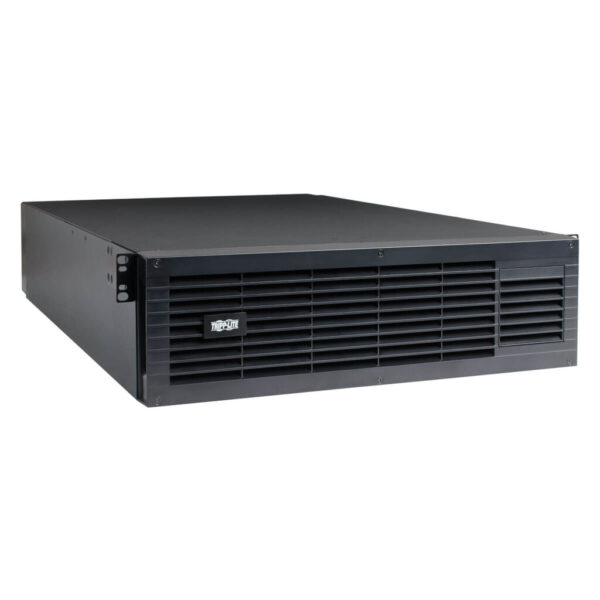

Tripp Lite series 192V External Battery Pack for Select UPS Systems, 3U Rack/Tower

Quick Specs

• Connects to compatible 5kVA/6kVA Unity PF UPS systems for extended runtime
• Smart pack communicates with UPS to automatically report battery temperature, accurate runtime, etc.
• Daisy-chain connector supports additional battery packs for even longer runtime
• Mounts in 3U of space in 19 in. rack using included 4-post installation hardware
• Supports 2-post rack or tower installation with optional accessories (sold separately)

Features

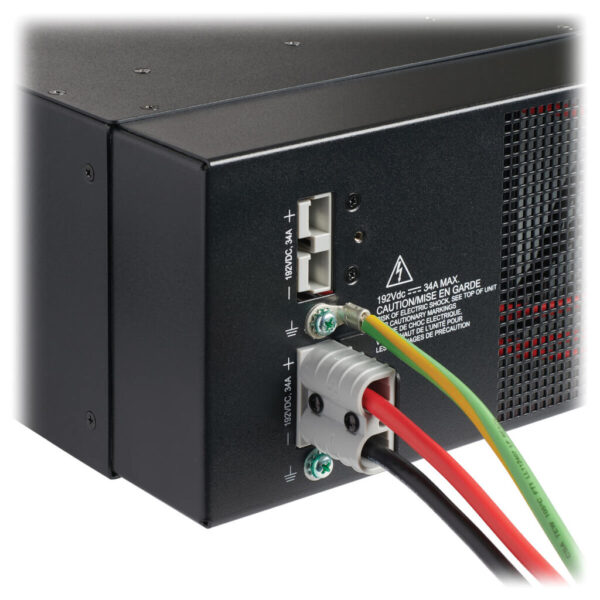

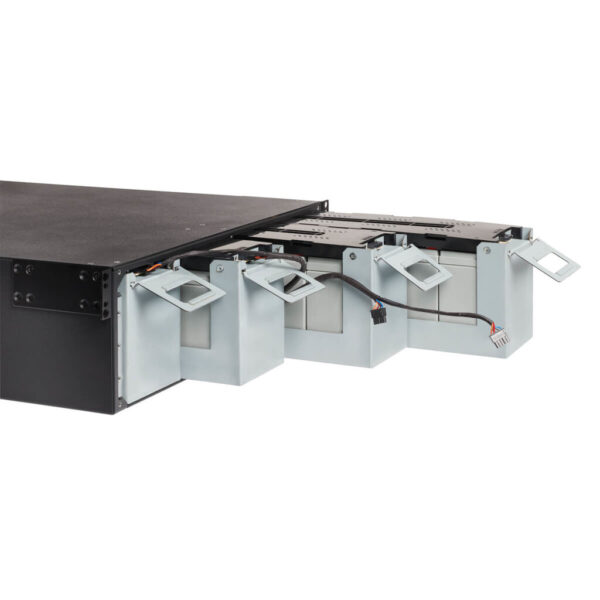

External Battery Pack Gives Your Compatible UPS System Extended Runtime The BP192V12RT3US is compatible only with UPS systems that specify the use of this battery pack (see System Requirements below). Not only does this external battery pack provide extended runtime, but it can also be daisy-chained using its input/output connectors to additional external battery packs for even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for simple installation. Smart Battery Communicates with Your UPS for Optimal Performance This external battery pack with included power and data cabling is automatically sensed by the UPS for highly accurate runtime reporting and ideal charge current settings. An additional data cable reports battery pack temperature to the UPS to enable temperature-compensated charging to extend battery lifespan and fast recharge. Mounts in 3U of Space in 19 in. 4-Post Racks This smart battery pack’s multi-use form factor supports stacking or mounting in 3U of space in EIA-standard 19-inch racks using the included 4-post rack-mounting brackets. The four replaceable internal battery trays can be easily removed to make the battery pack lighter for rack-mount installation. The BP192V12RT3US is also compatible with 2-9USTAND for upright tower configuration and 2POSTRMKITHD for 2-post racks (both accessories sold separately).

System Requirements

5kVA and 6kVA SmartOnline Unity Power Factor UPS systems only: SU5KRT3UG, SU5KRT3UHV, SU5KRT3UHW, SU5KRT3UTF, SU5KRT3UX, SU6KRT3UG, SU6KRT3UHV, SU6KRT3UHW, SU6KRT3UTF, SU6KRT3UX, SU5KRT3UGMB, SU5KRT3UHVMB, SU5KRT3UHWMB, SU5KRT3UTFMB, SU6KRT3UGMB, SU6KRT3UHVMB, SU6KRT3UHWMB, SU6KRT3UTFMB, SU6KRT3UXMB and other UPS systems that specify the use of this battery pack

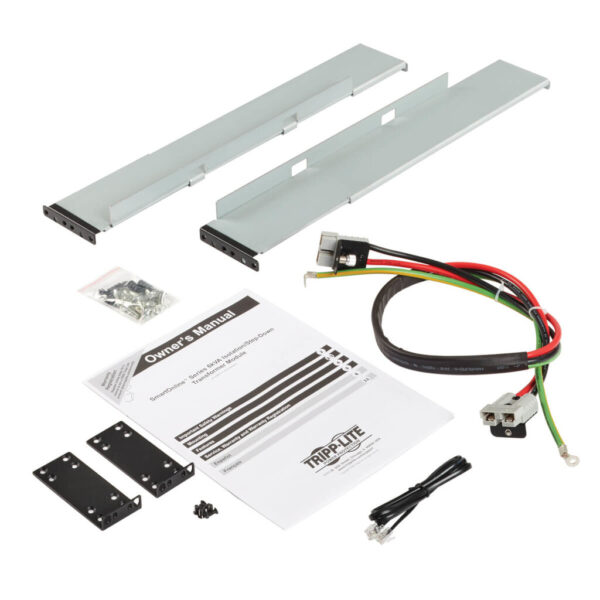

Package Includes

• BP192V12RT3US 192V External Battery Pack, 3U Rack/Tower
• Smart battery communication cable
• 4-post rack-mounting hardware
• Owner’s manual
