±120VDC External Battery Cabinet for Select 10-60K S3M-Series 3-Phase UPS – Requires 20x 100Ah Batteries (Not Included)

External battery pack provides extended backup runtime for select Tripp Lite 10-60K S3M-Series 3-phase UPS systems.

±120VDC Battery Cabinet Gives Your Compatible 3-Phase UPS Extended Runtime
This external battery pack connects to a compatible SmartOnline® S3M-Series 3-phase UPS system to provide long-lasting battery backup for data centers, telecommunications, networks, industrial facilities, security, emergency systems and other mission-critical applications that require high capacity, high availability and extended runtime. In addition to battery backup and extended runtime, the BP240V100-NIB can also be daisy-chained to other external battery cabinets for even longer extended-run operation.

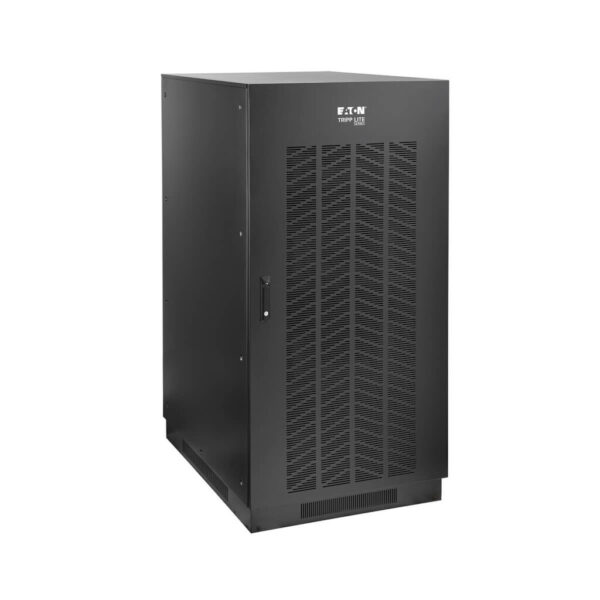

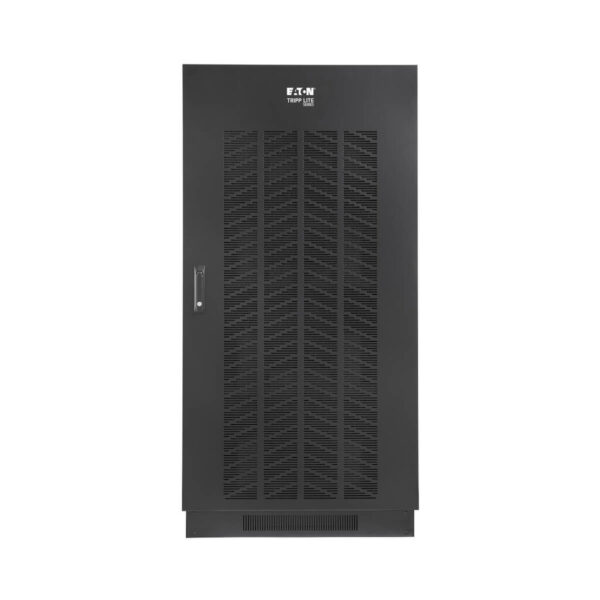

Rugged Steel Construction Designed to Last in Demanding IT Applications

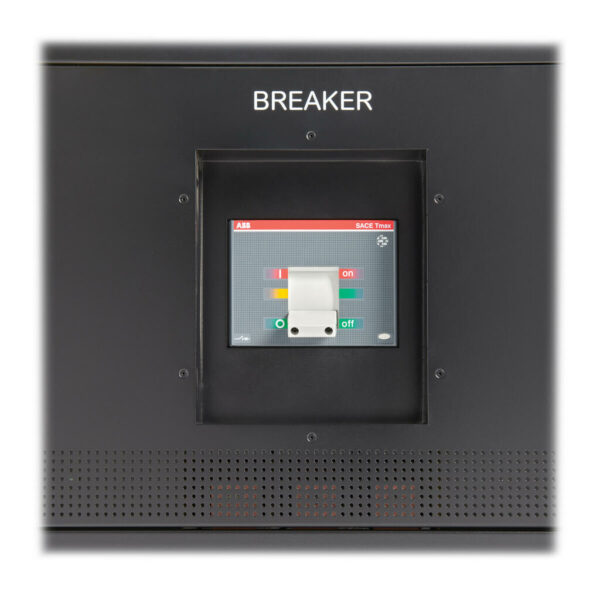

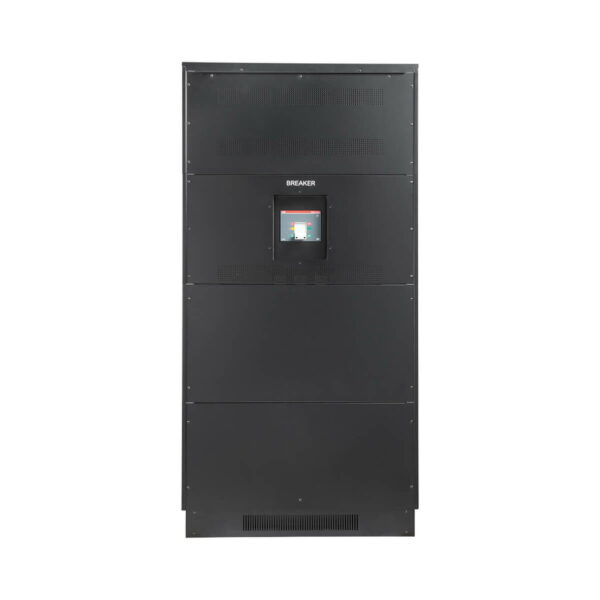

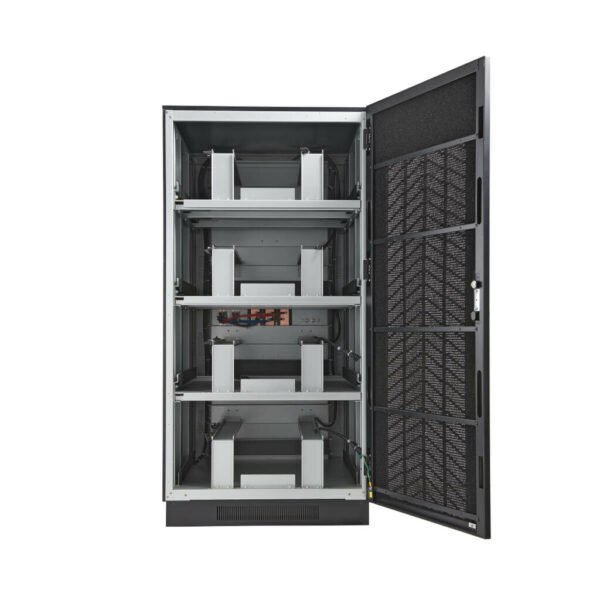

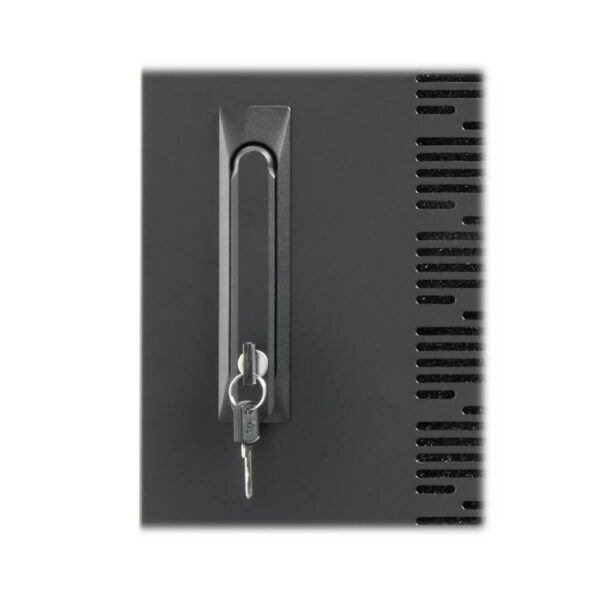

The cabinet is made from heavy-gauge steel with a baked powder-coated finish that helps prevent chipping and corrosion. The hinged front door provides easy access to the user-installed internal batteries. The door locks securely to help prevent damage, tampering or theft. Fuses and output breaker protect against potentially hazardous overcurrent.

Ships Ready for Immediate Battery Installation
All required internal battery cabling is included. External battery cables feed into the cabinet through conduit knockouts built into the bottom panel.

Typical Applications
– Extend the runtime of your compatible Tripp Lite UPS system to maintain operation during all power conditions
– Daisy-chain to additional battery cabinets to provide even longer extended-run operation for backing up essential equipment
– Customize your application with the internal batteries of your choice

System Requirements
Tripp Lite 3-phase 208V UPS models S3M10K-NIB, S3M15K-NIB, S3M20K-NIB, S3M25K, S3M30K, S3M50K, S3M60K or other UPS specifying compatibility.
