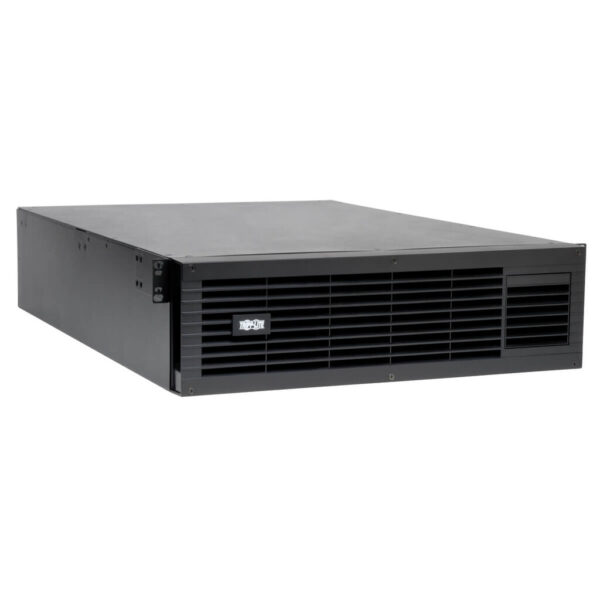

Tripp Lite series External 24V 3U Rack/Tower Battery Pack for Select UPS Systems (BP24V70-3U), TAA

Name: Tripp Lite series External 24V 3U Rack/Tower Battery Pack for Select UPS Systems (BP24V70-3U), TAA
Brand: Tripp Lite
SKU: BP24V70-3U
Price: 2367.72 CAD
Availability: InStock

$2,367.72

Brand: Tripp Lite

Part Number (MPN): BP24V70-3U

UPC / GTIN: 037332123305

Datasheet: PDF

Tripp Lite series External 24V 3U Rack/Tower Battery Pack for Select UPS Systems (BP24V70-3U), TAA

Manufacturer Warehouse: 6 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Extends the runtime of expandable 24V DC UPS Systems
Included daisychain connector supports the addition of multiple compatible external battery packs
Supports 3U rack-mount installation; 4-post installation accessories included
Options for 2-post rack-mount and tower installation available

Overview

BP24V70-3U rack/tower external battery pack offers extended battery runtime when used in conjunction with expandable 24V rack-mount and tower UPS systems. Includes heavy-gauge cabling with high-current DC connector for safe, simple installation. Included daisy-chain connector enables the connection of additional compatible 24V external battery packs to the host UPS. Included mounting accessories support 3U rack-mount installation in 4-post racks. Options for 2-post center-mounting and upright tower installation available.

Compatible with OMNIVS1500XL, OMNIVSINT1500XL, SMART750RMXL2U, SMART750XLA, SU750RTXL2U, SU750XL, SU1000RTXL2UA, SU1000XLA, SUINT1000RTXL2UA and other UPS systems that specify the use of this battery pack.

Features

Offers extended-run UPS operation when used in conjunction with compatible 24V DC UPS systems
Includes heavy-gauge cabling with high-current DC connectors for simple installation
Daisychain connector enables the connection of additional compatible 24V external battery packs to the host UPS
Included mounting brackets support rack-mount installation in 4-post racks using only 3 rack spaces (3U)
2POSTRMKITHD option supports balanced two-point center-mounting in 2-post equipment racks
2-9USTAND option enables upright tower placement

Package Includes

BP24V70-3U external battery pack with attached DC cabling
4 post compatible mounting hardware
Owner’s manual

Weight	166.67 lbs
Dimensions	32.5 × 23 × 12 in
UPC Code	037332123305
Rack Depth	28
Brand	Tripp Lite
Input Phase	Single-Phase
DC System Voltage (VDC)	24

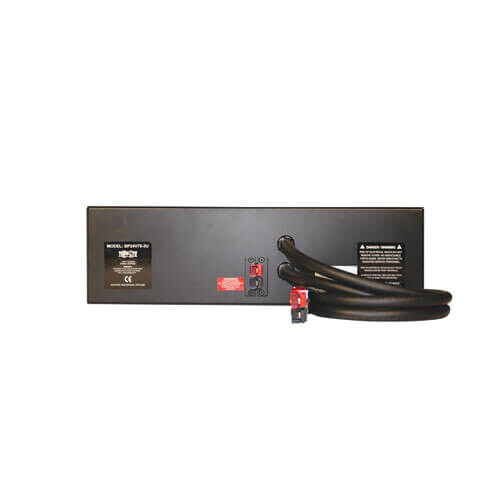

UPS Connection	Attached cable with red/black 75 amp male DC connector
Typical Battery Lifespan	4-6 years typical (North America)
Material of Construction	Steel
Rack Height	3U
External Battery Pack Form Factor	Rack/Tower
Installation Form Factors Supported with Optional Accessories	2 post rackmount ( 2POSTRMKITWM ); Tower ( 2-9USTAND )
Minimum Required Rack Depth (cm)	71.12
Shipping Dimensions (hwd / cm)	30.48 x 58.42 x 82.55
Shipping Weight (kg)	79.38
Unit Dimensions (hwd / cm)	13.33 x 44.45 x 63.5
Unit Weight (kg)	63.00
Product Compliance	RoHS; CE (Europe); Trade Agreements Act (TAA)
Product Warranty Period (U.S. & Canada)	2-year limited warranty
