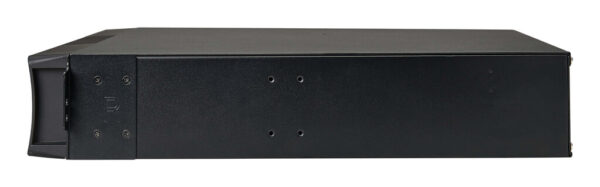

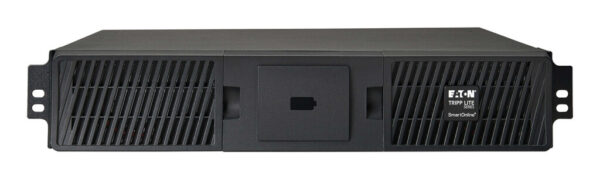

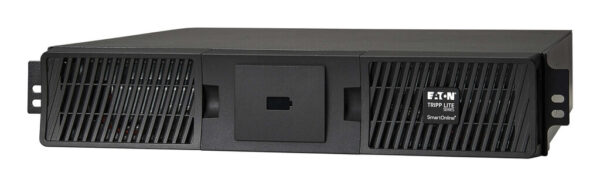

Tripp Lite series 36V Extended Battery Module (EBM) for SmartOnline UPS Systems, 2U Rack/Tower

Tripp Lite series 36V Extended Battery Module (EBM) for SmartOnline UPS Systems, 2U Rack/Tower

Name: Tripp Lite series 36V Extended Battery Module (EBM) for SmartOnline UPS Systems, 2U Rack/Tower
Brand: Tripp Lite
SKU: BP36RT
Price: 969.71 CAD
Availability: BackOrder

$969.71

Brand: Tripp Lite

Part Number (MPN): BP36RT

UPC / GTIN: 037332279705

Datasheet: PDF

Tripp Lite series 36V Extended Battery Module (EBM) for SmartOnline UPS Systems, 2U Rack/Tower

Status: On Backorder (Contact us for lead times)

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

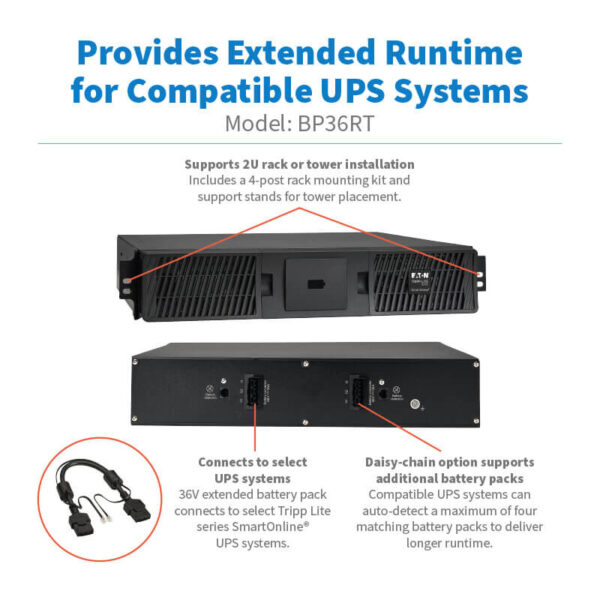

Connects to select expandable Eaton series SmartOnline UPS systems to add critical runtime
Includes heavy-gauge battery cabling with high-current 36V DC connectors

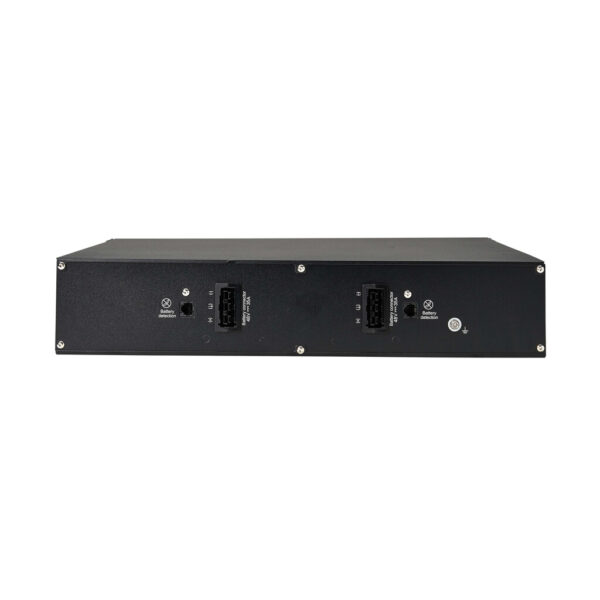

Daisy-chain connector supports additional battery packs for even longer runtime

Features

Backup Battery Module Gives Your Compatible UPS System Extended Runtime

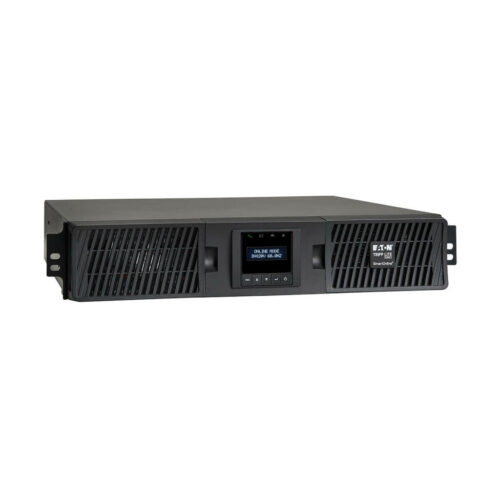

The valve-regulated lead-acid (VRLA) BP36RT offers extended battery runtime when used in conjunction with SU750RTXLCD2U, SU750RTXLCD2UN, SU1000RTXLCD2U and SU1000RTXLCD2UN SmartOnline® UPS systems. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.

Versatile Installation Options
You can mount the BP36RT in 2U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the UPS system’s support stands.

System Requirements

Compatible only with 2023 redesign SU750RTXLCD2U, SU750RTXLCD2UN, SU1000RTXLCD2U and SU1000RTXLCD2UN UPS systems

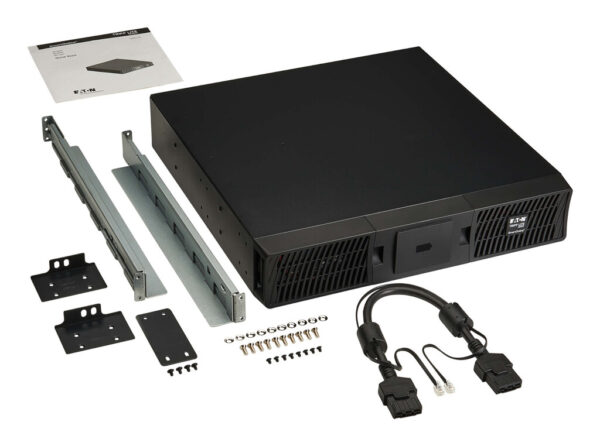

Package Includes

36V Extended Battery Module
External battery cable
Rack-mounting hardware
Quick start guide

Weight	60.4 lbs
Dimensions	21.7 × 22.8 × 9.4 in
UPC Code	037332279705
Brand	Tripp Lite
Input Phase	Single-Phase
Input Cord Details	15.7 in. connector cord
Battery Type	Valve Regulated Lead Acid (VRLA)
DC System Voltage (VDC)	36
Replacement Battery Cartridge	744-A3959
Battery Replacement Description	Hot-swappable, user replaceable batteries. EBM requires 2 Replacement Battery Cartridges.
UPS Connection	UPS specific DC connector
Primary Form Factor	Rackmount; Tower
Rack Height	2U
External Battery Pack Form Factor	Rack/Tower
Installation Form Factors Supported with Optional Accessories	2 post rackmount ( RK2PC )
Shipping Weight (kg)	27.40
Unit Weight (kg)	21.82
Operating Temperature Range	32° to 104°F (0° to 40°C)
Relative Humidity	0-96% non-condensing
Product Certifications	UL Listed
Product Compliance	CE (Europe); FCC (USA); REACH; RoHS
Product Warranty Period (U.S. & Canada)	2-year limited warranty
Extended Service Plans	ADVANCED DEPOT EXCHANGEService Part Number: TL9SW5Y-3000BCExpedited parts coverage for 5 yearsParts, electronics and batteries coverageNext business day shippingTechnical support5-YEAR ON-SITE PLAN (US ONLY)Service Part Number: TLWEBN75XX-7000BCOnsite parts and labor coverage for 5 yearsParts, electronics and batteries coverage24x7 onsite labor coverage, next-day responseNext-day shippingTechnical support
Part Number	Description
TLWEBN75XX7000BC	5-Year Onsite Service Contract for 0-7000 VA Smart, SMX, SU External Battery Modules (EBMs)
