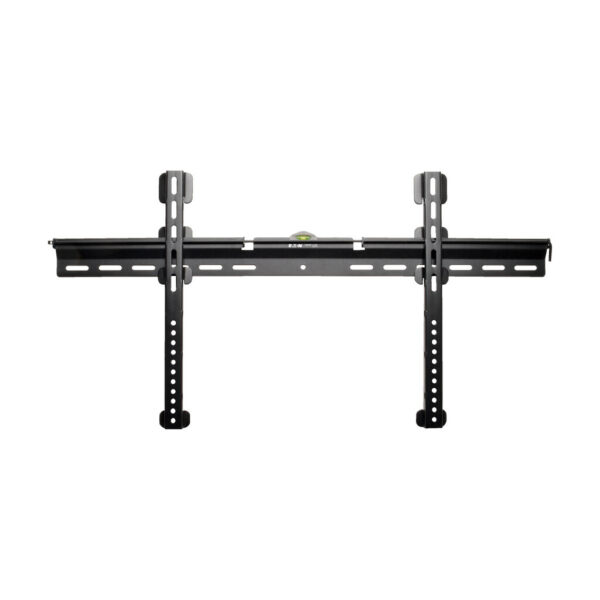

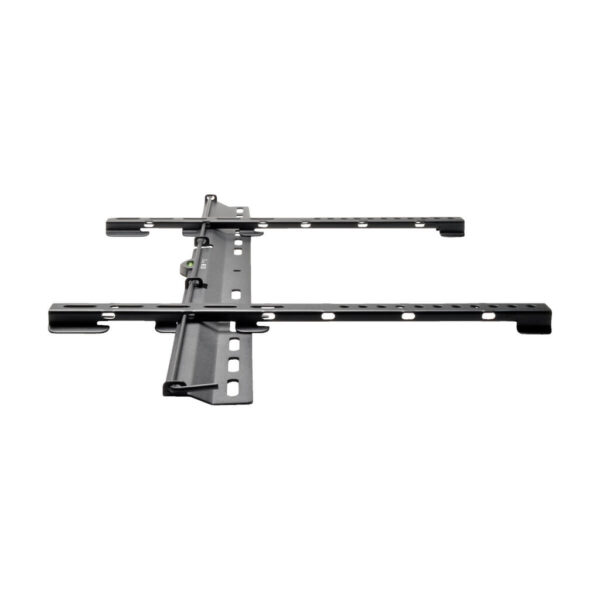

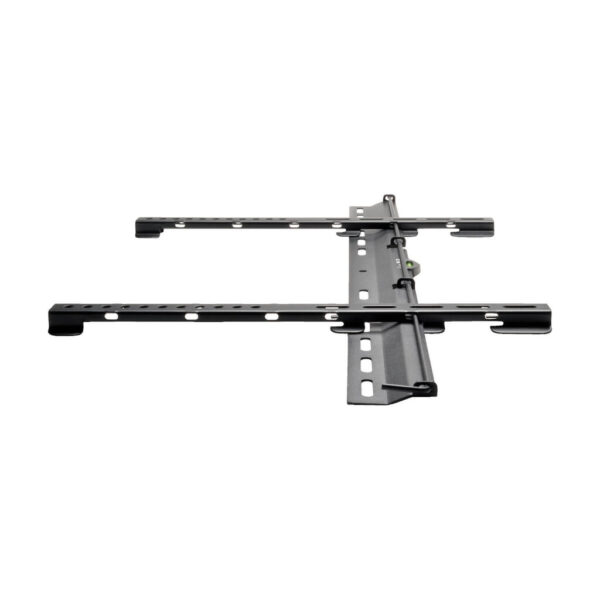

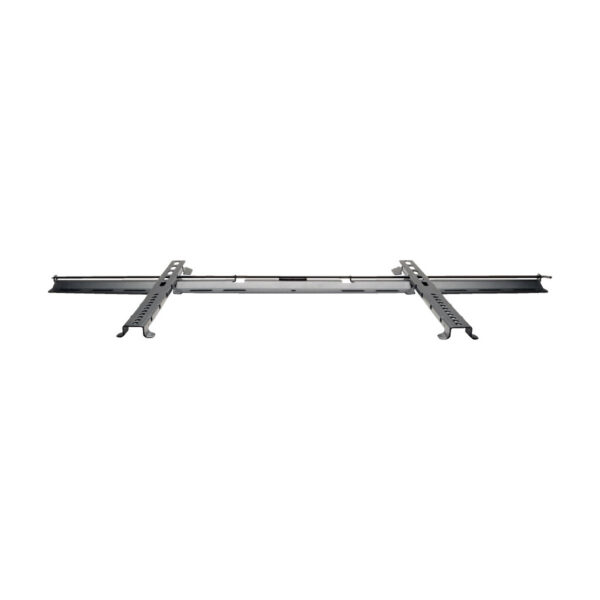

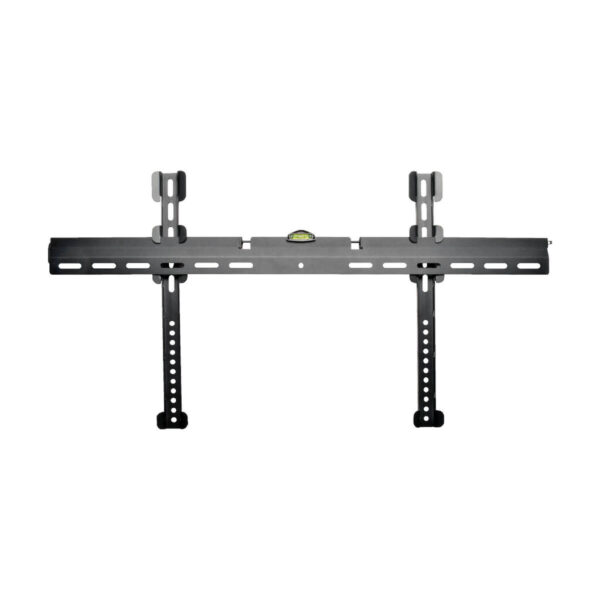

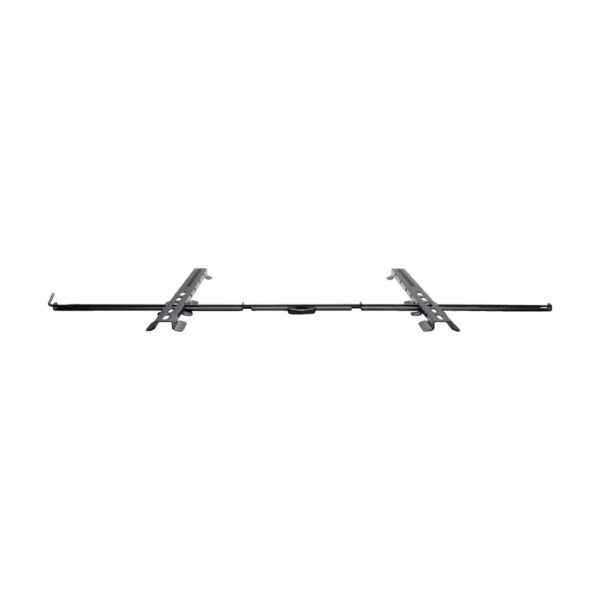

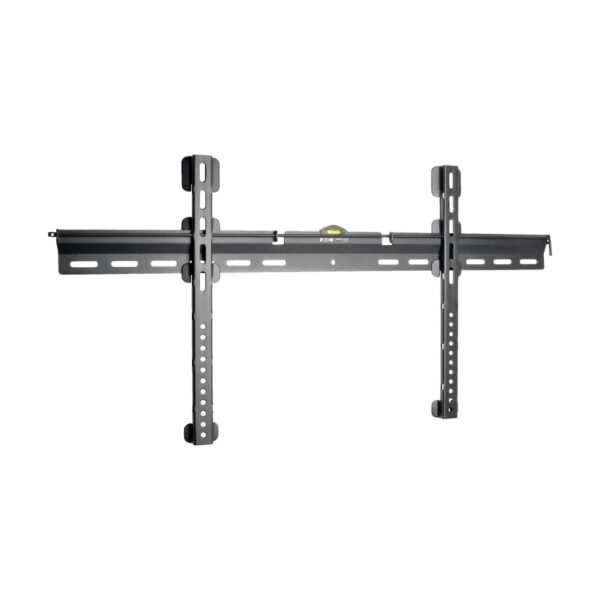

Tripp Lite series Fixed Wall Mount for 37″ to 70″ TVs and Monitors

Name: Tripp Lite series Fixed Wall Mount for 37" to 70" TVs and Monitors
Brand: Tripp Lite
SKU: DWF3770L
Price: 49.05 CAD
Availability: InStock

$49.05

Brand: Tripp Lite

Part Number (MPN): DWF3770L

UPC / GTIN: 037332181701

Datasheet: PDF

Tripp Lite series Fixed Wall Mount for 37″ to 70″ TVs and Monitors

Toronto Stock: 2 available

Manufacturer Warehouse: 423 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Fits most flat-panel displays from 37 to 70 in.
Hangs out of sight for a sleek, professional appearance
Adjustable mounting rails compensate for off-center wall studs
Supports up to 143 lbs (64.9 kgs)

Overview

The VESA-compliant DWF3770L Fixed Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 37 to 70 inches. The low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 143 lbs (64.9 kgs). Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 200 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 700 x 300, 700 x 400 mm, 800 x 300 mm and 800 x 400 mm.

Features

Mounts Your TV or Monitor to the Wall

Fits most flat-panel televisions, monitors and other displays from 37 to 70 in.
Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
Mounts out of sight behind display for sleek, professional appearance
Mounting hardware included

Durable Metal Construction

Supports up to 143 lbs (64.9 kgs)
Open frame allows easy wall access
Adjustable mounting rails compensate for off-center wall studs
Built-in bubble level for accurate display leveling
Scratch-resistant powder-coated finish

VESA Compliance

Supports the following VESA mounting hole patterns: 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 200 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 700 x 300, 700 x 400 mm, 800 x 300 mm and 800 x 400 mm

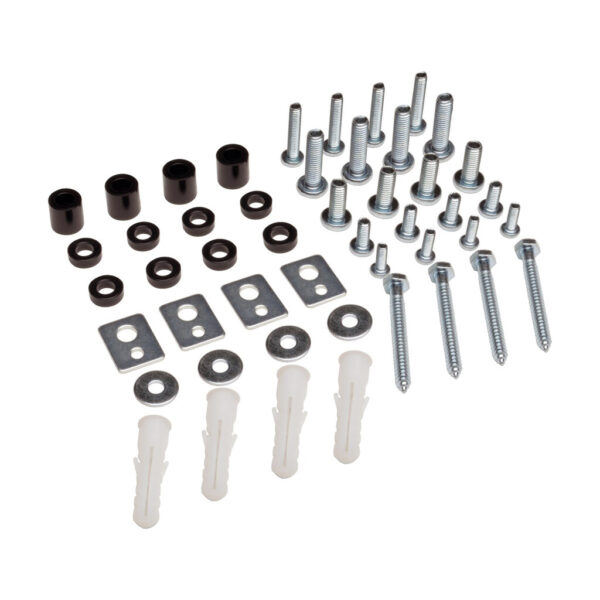

Package Includes

Wall plate
(2) Adapter brackets
Safety bar
(4) M5 x 14 screws
(4) M6 x 14 screws
(4) M6 x 30 screws
(4) M8 x 20 screws
(4) M8 x 30 screws
(4) Washers
(8) Small spacers
(4) Big spacers
(4) Anchor bolts
(4) Concrete anchors
(4) D6 washers
Owner’s manual

Weight	5 lbs
Dimensions	35.5 × 1.75 × 6.3 in
UPC Code	037332181701
Weight Capacity (kg)	143.3
Max Display Size	70
Brand	Tripp Lite
Device Compatibility	Monitor/HDTV
Color	Black
Material of Construction	Steel
VESA Pattern (mm)	300×200; 300×300; 300×400; 400×200; 400×300; 400×400; 500×200; 500×300; 500×400; 600×300; 600×400; 700×300; 700×400; 800×300; 800×400
Motion	Fixed
Mounting Location	Wall
Degrees of Motion	Fixed
Distance from Wall (cm)	3
Distance from Wall (mm)	30
Minimum Screen Size (cm)	93.98
Maximum Screen Size (cm)	177.8
Maximum Weight Capacity (kg)	65
Number of Displays	1
Shipping Dimensions (hwd / cm)	16.00 x 4.44 x 90.17
Shipping Weight (kg)	2.27
Unit Dimensions (hwd / cm)	44 x 86.86 x 1.93
Unit Weight (kg)	1.54
Assembly Required	Yes
Cord Management	No
Tools Necessary	Yes
Product Compliance	RoHS; RoHS3; REACH
Product Warranty Period (Worldwide)	5-year limited warranty
