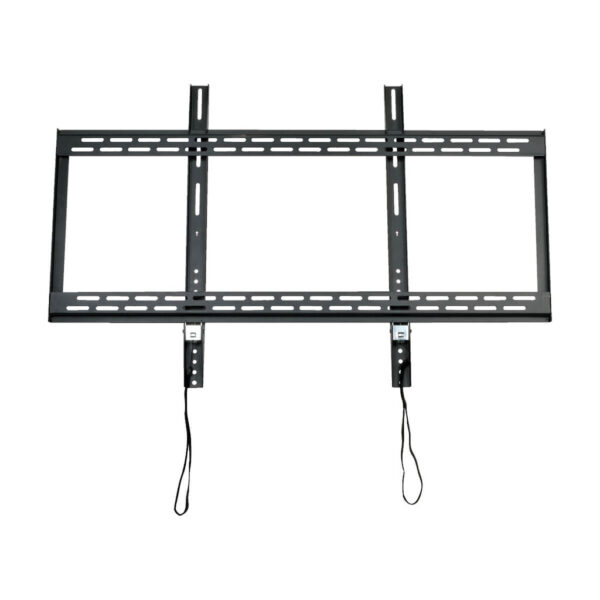

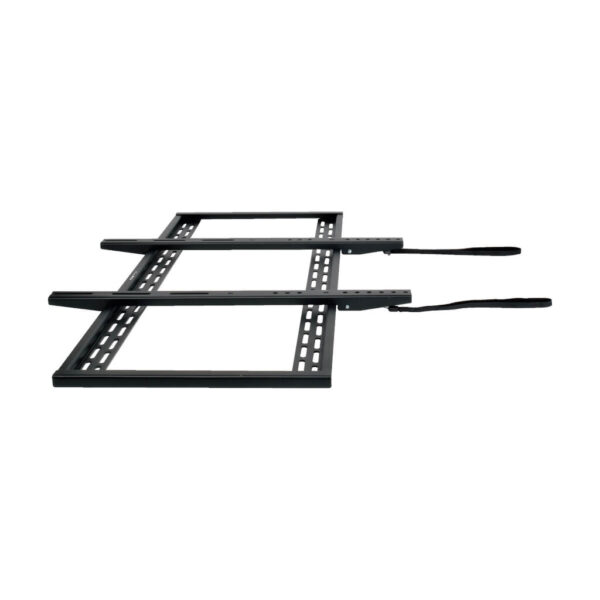

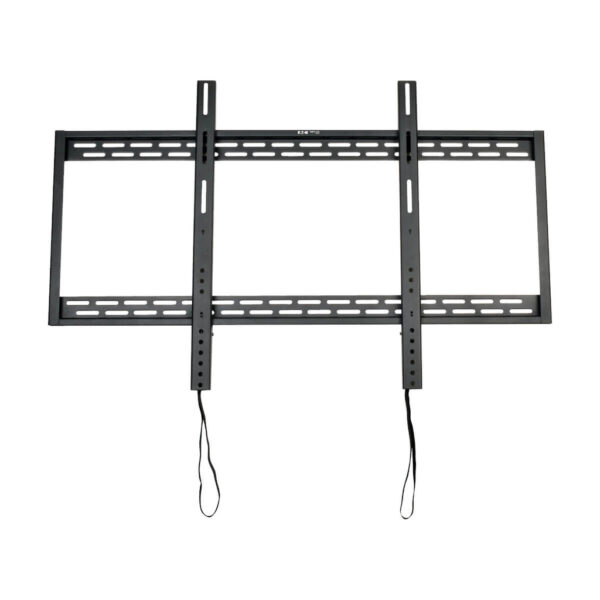

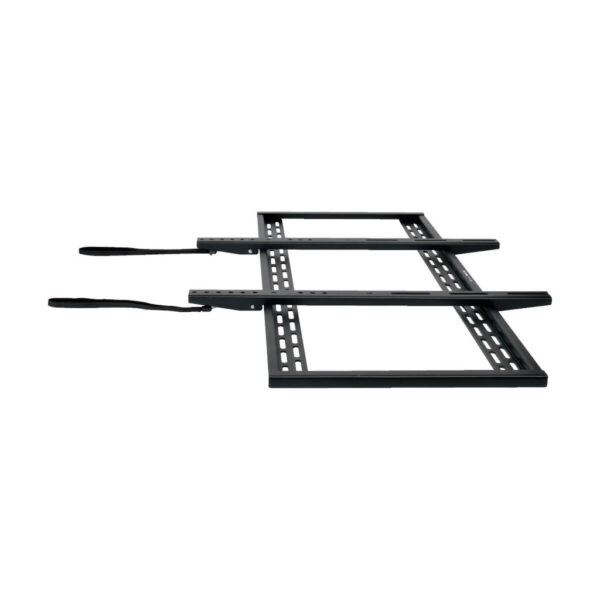

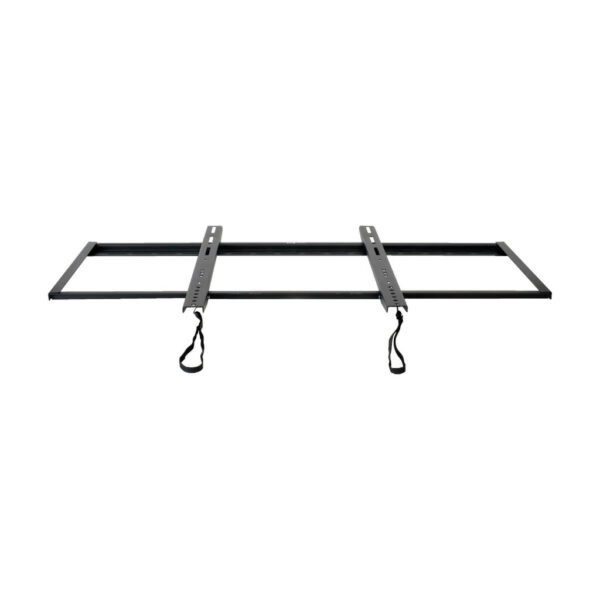

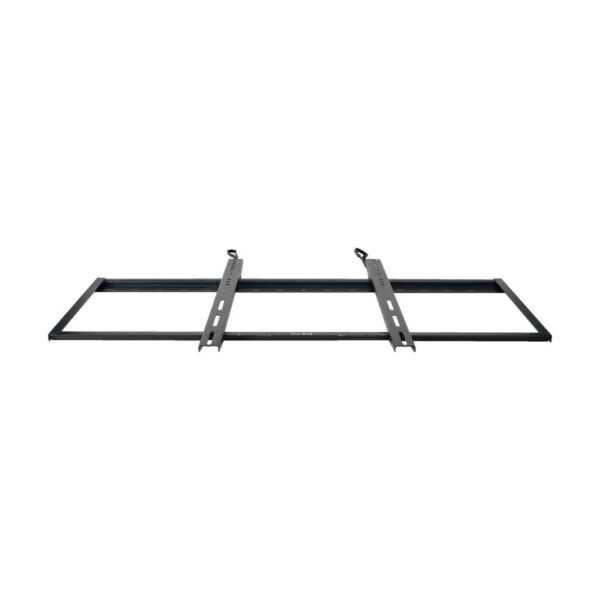

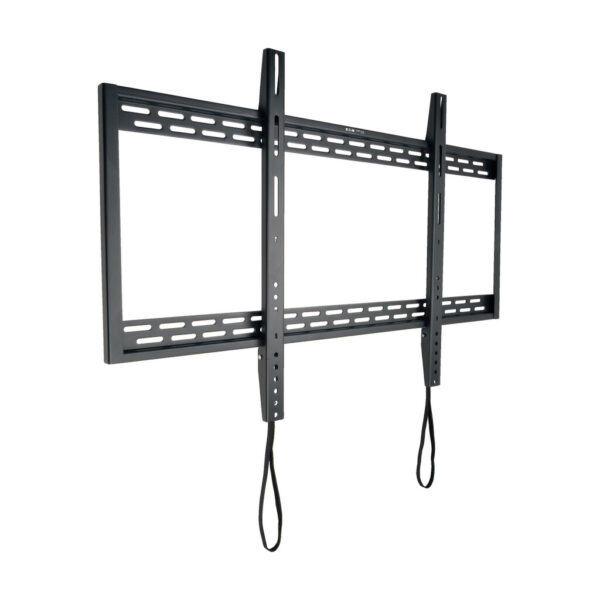

Tripp Lite series Fixed Wall Mount for 60″ to 100″ TVs and Monitors, UL Certified

Quick Specs

• Fits most flat-panel displays from 60 to 100 in.
• Hangs out of sight for a sleek, professional appearance
• Open frame for easy wall access
• Supports up to 350 lbs (158.8 kgs)

Overview

The VESA-compliant DWF60100XX Fixed Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 60 to 100 inches. The low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Display brackets with connected straps adjust to compensate for off-center wall studs. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 350 lbs (158.8 kgs). Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 200 x 500 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 300 x 500 mm, 300 x 600 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 400 x 500 mm, 400 x 600 mm, 500 x 200 mm, 500 x 300 mm, 500 x 400 mm, 500 x 500 mm, 500 x 600 mm, 600 x 300 mm, 600 x 400 mm, 600 x 500 mm, 600 x 600 mm, 700 x 300 mm, 700 x 400 mm, 700 x 500 mm, 700 x 600 mm, 800 x 300 mm, 800 x 400 mm, 800 x 500 mm, 800 x 600 mm, 900 x 400 mm, 900 x 500 mm and 900 x 600 mm

Features

Mounts Your TV or Monitor to the Wall

• Fits most flat-panel televisions, monitors and other displays from 60 to 100 in.
• Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
• Mounts out of sight behind display for sleek, professional appearance
• Mounting hardware included
• Tested to accordance with UL Standard 2442

Durable Metal Construction

• Supports up to 350 lbs (158.8 kgs)
• Open frame allows easy wall access
• Adjustable display brackets with connected straps compensate for off-center wall studs
• Scratch-resistant powder-coated finish

VESA Compliance

• Supports the following VESA mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 200 x 500 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 300 x 500 mm, 300 x 600 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 400 x 500 mm, 400 x 600 mm, 500 x 200 mm, 500 x 300 mm, 500 x 400 mm, 500 x 500 mm, 500 x 600 mm, 600 x 300 mm, 600 x 400 mm, 600 x 500 mm, 600 x 600 mm, 700 x 300 mm, 700 x 400 mm, 700 x 500 mm, 700 x 600 mm, 800 x 300 mm, 800 x 400 mm, 800 x 500 mm, 800 x 600 mm, 900 x 400 mm, 900 x 500 mm and 900 x 600 mm

Package Includes

• Wall plate
• (2) Adapter brackets
• (4) M5 x 14 screws
• (4) M6 x 14 screws
• (4) M6 x 30 screws
• (4) M8 x 20 screws
• (4) M8 x 30 screws
• (4) Washers
• (8) Small spacers
• (4) Big spacers
• (6) Anchor bolts
• (6) Concrete anchors
• (6) D6 washers
• Owner’s manual
