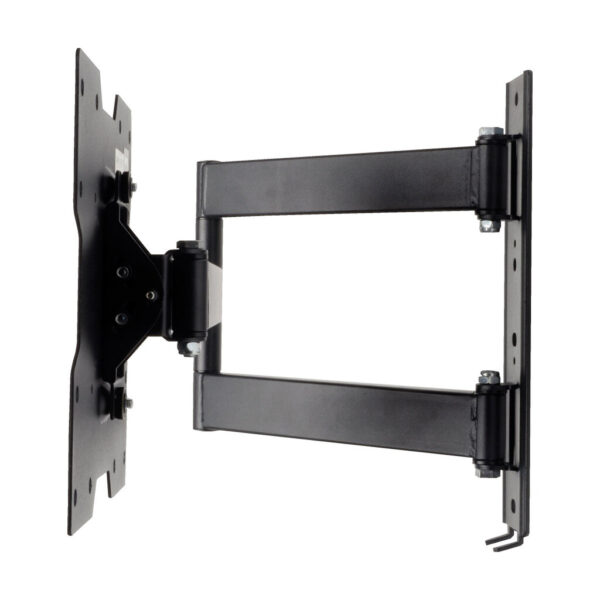

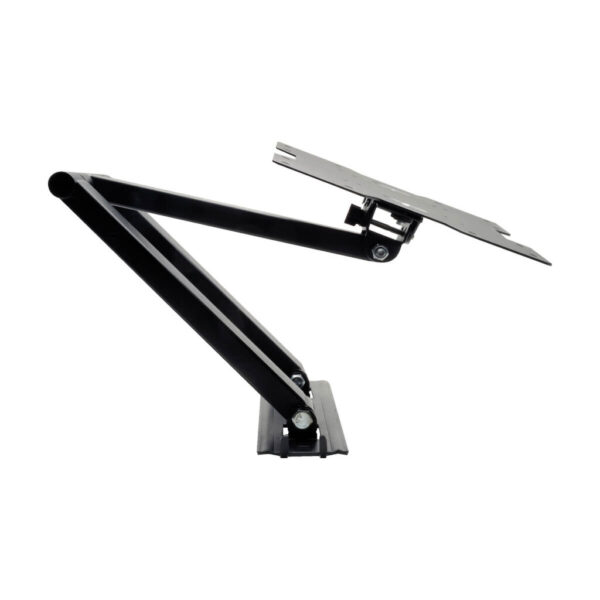

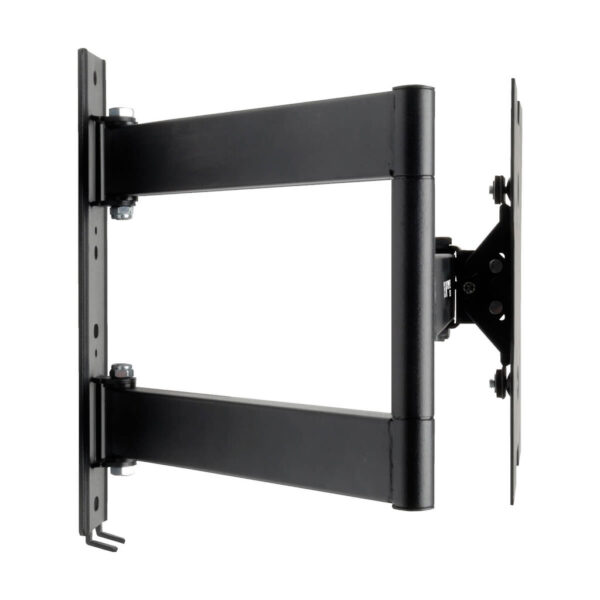

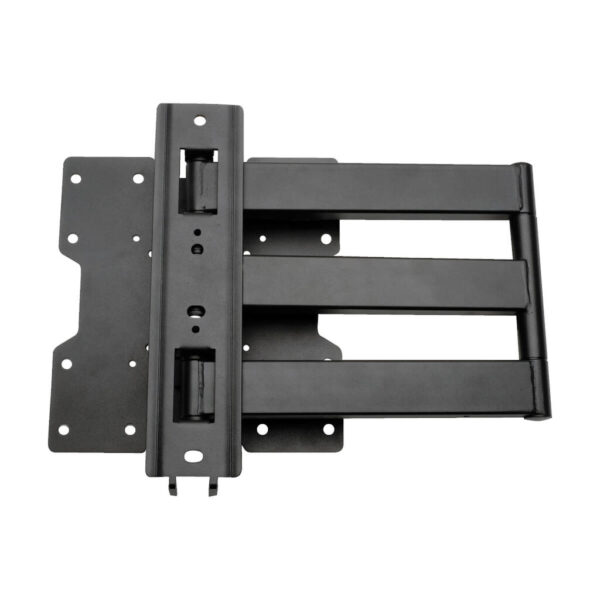

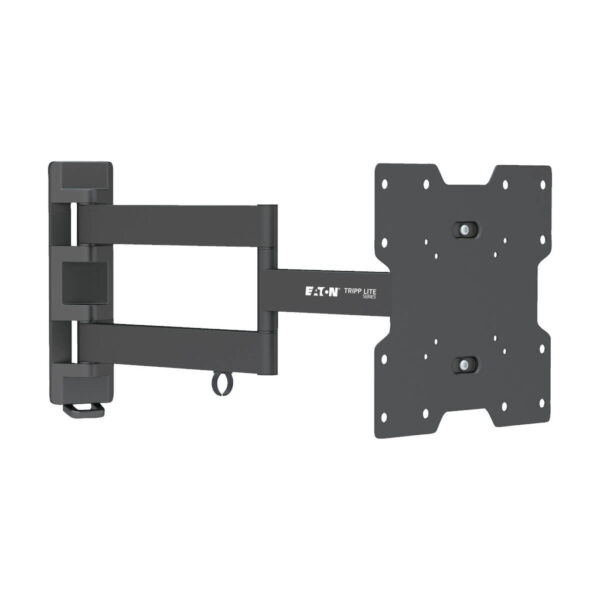

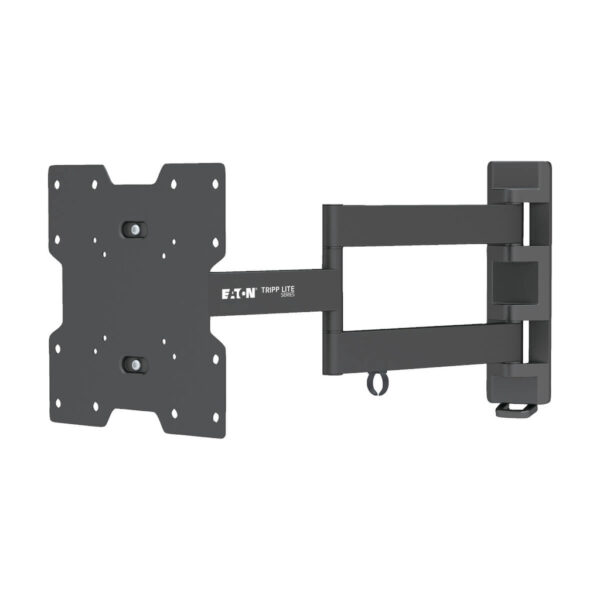

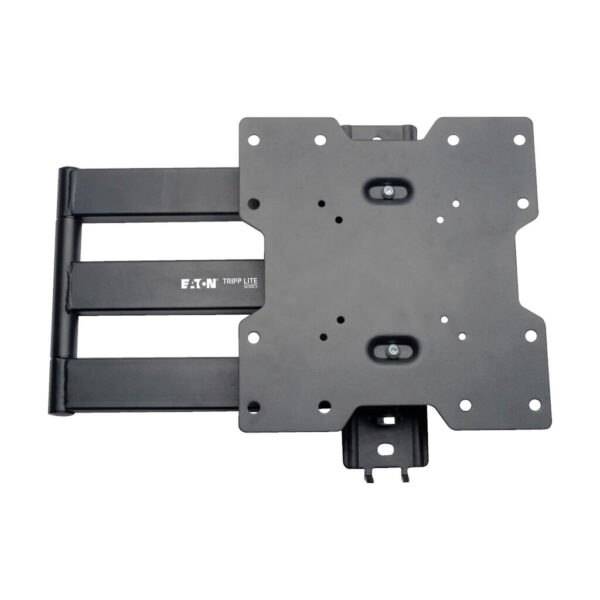

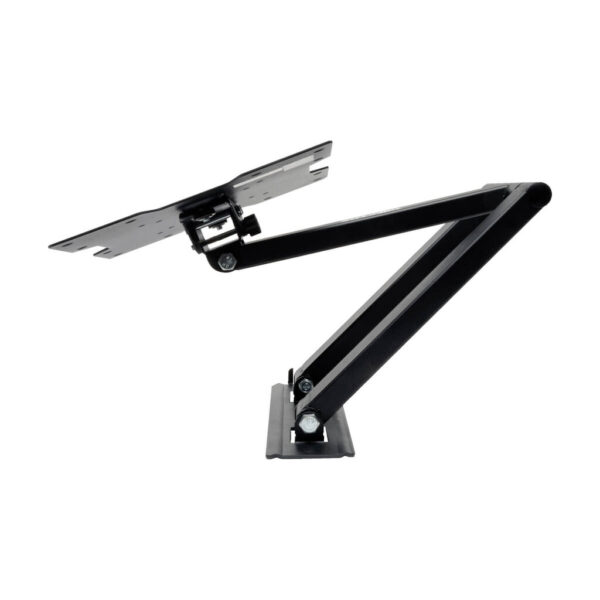

Tripp Lite series Swivel/Tilt Wall Mount with Arms for 17″ to 42″ TVs and Monitors, UL certified

Name: Tripp Lite series Swivel/Tilt Wall Mount with Arms for 17" to 42" TVs and Monitors, UL certified
Brand: Tripp Lite
SKU: DWM1742MA
Price: 79.31 CAD
Availability: InStock

$79.31

Brand: Tripp Lite

Part Number (MPN): DWM1742MA

UPC / GTIN: 037332183545

Datasheet: PDF

Tripp Lite series Swivel/Tilt Wall Mount with Arms for 17″ to 42″ TVs and Monitors, UL certified

Toronto Stock: 14 available

Manufacturer Warehouse: 861 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Fits most flat-panel displays from 17 to 42 in.
One-touch adjustment for comfortable viewing
180° swivel, -15° to +15° tilt and -3° to +3° screen adjustment
Supports up to 77 lbs (34.9 kgs)
UL certified

Overview

The VESA-compliant DWM1742MA Swivel/Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 17 to 42 inches.The full-motion swivel arm can be adjusted for angle to give you maximum flexibility in positioning your display to fit your environment and comfort level. A 180° swivel, -15° to +15° tilt and -3° to +3° screen level adjustment capability minimizes glare and provides comfortable viewing from multiple angles.Durable all-metal frame with scratch-resistant powder-coated finish supports up to 77 lbs (34.9 kgs). Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 75 x 75 mm, 75 x 100 mm, 75 x 200 mm, 100 x 75 mm, 100 x 100 mm, 100 x 200 mm, 200 x 75 mm, 200 x 100 mm and 200 x 200 mm.

Features

Mounts Your TV or Monitor to the Wall

Fits most flat-panel televisions, monitors and other displays from 17 to 42 in.
Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
Full-motion swivel arm adjusts for angle
Mounting hardware included
UL certified

Convenient One-Touch Adjustment

180° swivel, -15° to +15° tilt and -3° to +3° screen level adjustment capability provides comfortable viewing from multiple angles

Durable Metal Construction

Supports up to 77 lbs (34.9 kgs)
Scratch-resistant powder-coated finish blends with any décor
Display cables attach to mount to reduce clutter

VESA Compliance

Supports the following VESA mounting hole patterns: 75 x 75 mm, 75 x 100 mm, 75 x 200 mm, 100 x 75 mm, 100 x 100 mm, 100 x 200 mm, 200 x 75 mm, 200 x 100 mm and 200 x 200 mm

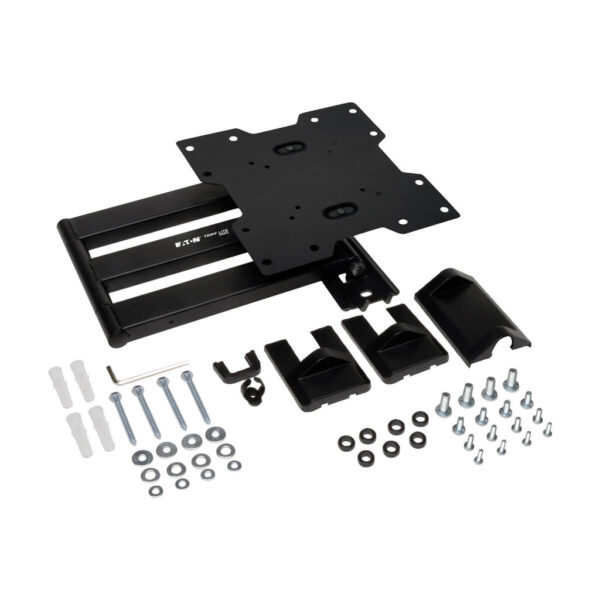

Package Includes

Arm assembly
(2) Top/bottom covers
Middle cover
Mounting template
Cable cover
Cable clip
M4 x 5 screw
(4) M4 x 14 screws
(4) M5 x 14 screws
(4) M6 x 14 screws
(4) M8 x 20 screws
(4) D5 washers
(4) D8 washers
(8) Small spacers
(4) Anchor bolts
(4) Concrete anchors
(4) D6 washers
Hex key
Owner’s manual

Weight	8.5 lbs
Dimensions	11.7 × 15.6 × 3.4 in
UPC Code	037332183545
Weight Capacity (kg)	77.16
Max Display Size	42
Brand	Tripp Lite
Device Compatibility	Monitor/HDTV
Color	Black
Material of Construction	Steel
VESA Pattern (mm)	100×100; 100×200; 100×75; 200×100; 200×200; 200×75; 75×100; 75×200; 75×75
Motion	Full
Mounting Location	Wall
Degrees of Motion	-15/+15 Tilt; 180 Swivel; -3/+3 Level Adjustment
Minimum Screen Size (cm)	43.18
Maximum Screen Size (cm)	106.68
Maximum Weight Capacity (kg)	35
Min/Max Arm Extension (cm)	5.6 min to 51 max
Number of Displays	1
Shipping Dimensions (hwd / cm)	8.64 x 39.62 x 29.72
Shipping Weight (kg)	3.86
Unit Dimensions (hwd / cm)	28.2 x 49.4 x 22.2
Unit Weight (kg)	3.57
Assembly Required	Yes
Cord Management	Yes
Tools Necessary	Yes
Product Certifications	UL 2442
Product Compliance	RoHS; REACH
Product Warranty Period (Worldwide)	5-year limited warranty
