Tripp Lite series Swivel/Tilt Wall Mount for 17″ to 42″ TVs and Monitors, 80° Swivel, -15° to +15° Tilt, -4° to +4° Screen Adjustment

Name: Tripp Lite series Swivel/Tilt Wall Mount for 17" to 42" TVs and Monitors, 80° Swivel, -15° to +15° Tilt, -4° to +4° Screen Adjustment
Brand: Tripp Lite
SKU: DWM1742MN
Price: 44.04 CAD
Availability: BackOrder

$44.04

Brand: Tripp Lite

Part Number (MPN): DWM1742MN

UPC / GTIN: 037332183552

Datasheet: PDF

Tripp Lite series Swivel/Tilt Wall Mount for 17″ to 42″ TVs and Monitors, 80° Swivel, -15° to +15° Tilt, -4° to +4° Screen Adjustment

Status: On Backorder (Contact us for lead times)

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Fits most flat-panel displays from 17 to 42 in.
One-touch adjustment for comfortable viewing
80° swivel, -15° to +15° tilt and -4° to +4° screen adjustment
Supports up to 115 lbs (52.2 kgs)

Overview

The VESA-compliant DWM1742MN Swivel/Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 17 to 42 inches.Adjust the display angle to fit your environment and comfort level. An 80° swivel, -15° to +15° tilt and -4° to +4° screen level adjustment capability minimizes glare and provides comfortable viewing from multiple angles.

Durable all-metal frame with scratch-resistant powder-coated finish supports up to 115 lbs (52.2 kgs). Comes fully assembled for quick mounting to the wall with included hardware. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 75 x 75 mm, 75 x 100 mm, 75 x 200 mm, 100 x 100 mm, 200 x 100 mm and 200 x 200 mm

Features

Mounts Your TV or Monitor to the Wall

Fits most flat-panel televisions, monitors and other displays from 17 to 42 in.
Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
Display angle adjusts to fit your environment and comfort level
Mounting hardware included

Convenient One-Touch Adjustment

80° swivel, -15° to +15° tilt and -4° to +4° screen level adjustment capability provides comfortable viewing from multiple angles

Durable Metal Construction

Supports up to 115 lbs (52.2 kgs)
Scratch-resistant powder-coated finish
Fully assembled for immediate installation

VESA Compliance

Supports the following VESA mounting hole patterns: 75 x 75 mm, 75 x 100 mm, 75 x 200 mm, 100 x 100 mm, 200 x 100 mm and 200 x 200 mm

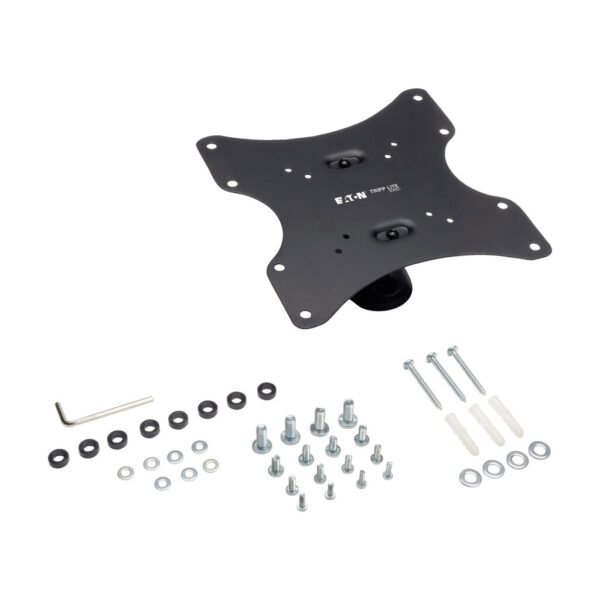

Package Includes

DWM1742MN Swivel/Tilt Wall Mount for 17″ to 42″ TVs and Monitors
(4) M4 x 14 screws
(4) M5 x 14 screws
(4) M6 x 14 screws
(4) M8 x 20 screws
(4) D5 washers
(4) D8 washers
(8) Small spacers
(3) Anchor bolts
(3) Concrete anchors
(3) D6 washers
Hex key, 4 mm
Owner’s manual

Weight	3.6 lbs
Dimensions	9.3 × 9.1 × 3.6 in
UPC Code	037332183552
Weight Capacity (kg)	114.64
Max Display Size	42
Brand	Tripp Lite
Device Compatibility	Monitor/HDTV
Color	Black
Material of Construction	Steel
VESA Pattern (mm)	100×100; 200×100; 200×200; 75×100; 75×200; 75×75
Motion	Full
Mounting Location	Wall
Degrees of Motion	-15/+15 Tilt; 80 Swivel; -4/+4 Level Adjustment
Minimum Screen Size (cm)	43.18
Maximum Screen Size (cm)	106.68
Maximum Weight Capacity (kg)	52
Min/Max Arm Extension (cm)	3.30 min to 5.89 max
Number of Displays	1
Shipping Dimensions (hwd / cm)	9.14 x 23.11 x 23.62
Shipping Weight (kg)	1.63
Unit Dimensions (hwd / cm)	15.5 x 8.9 x 3.3
Unit Weight (kg)	1.65
Cord Management	No
Tools Necessary	Yes
Product Compliance	RoHS; RoHS3; REACH
Product Warranty Period (Worldwide)	5-year limited warranty
