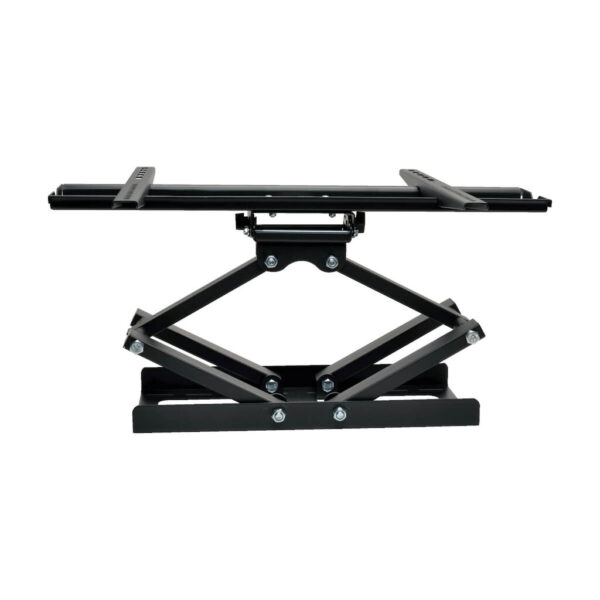

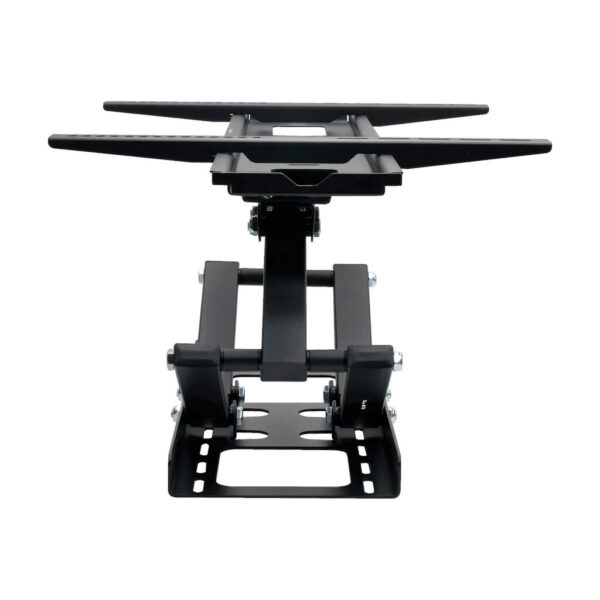

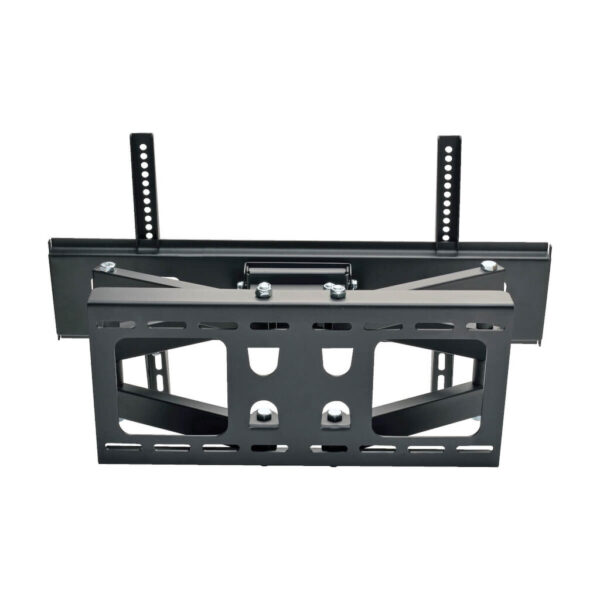

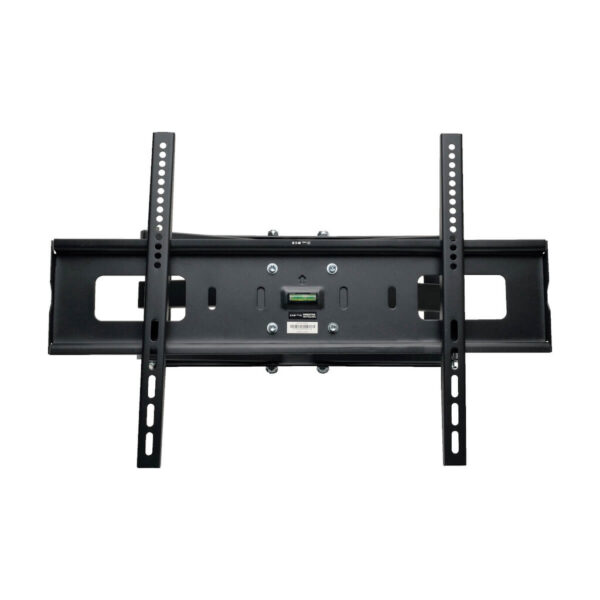

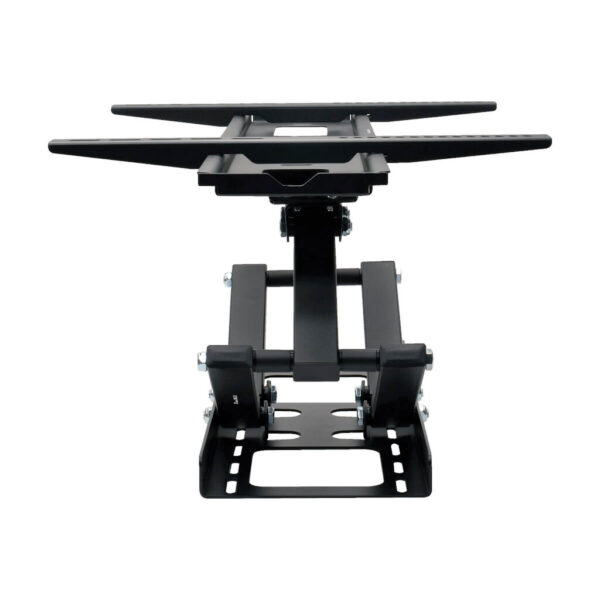

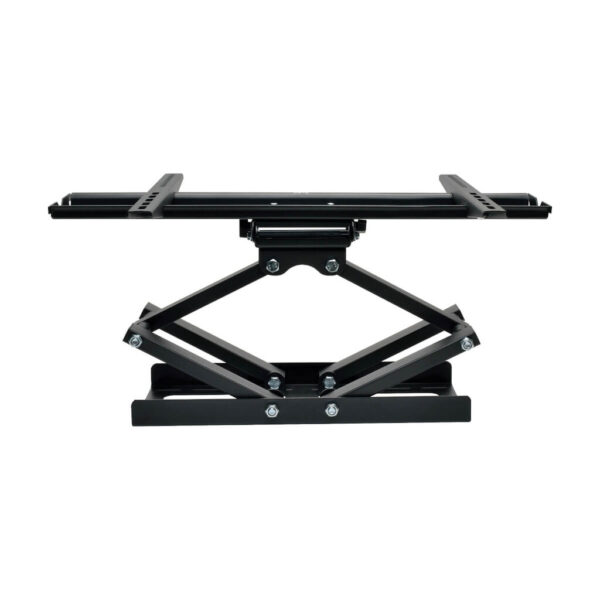

Tripp Lite series Swivel/Tilt Wall Mount for 37″ to 70″ TVs and Monitors

Quick Specs

• Fits most flat-panel displays from 37 to 70 in.
• One-touch adjustment for comfortable viewing
• 120° swivel, -15° to +15° tilt and -3° to +3° screen adjustment
• Supports up to 165 lbs (74.8 kgs)

Overview

The VESA-compliant DWM3770X Swivel/Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 37 to 70 inches.The articulating arm has six pivots that adjust independently for angle to give you maximum flexibility in positioning your display to fit your environment and comfort level. A 120° swivel, -15° to +15° tilt and -3° to +3° screen level adjustment capability minimizes glare and provides comfortable viewing from multiple angles.Durable all-metal frame with scratch-resistant powder-coated finish supports up to 165 lbs (74.8 kgs). Mounting hardware included. Built-in bubble level allows accurate display leveling. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 100 x 100 mm, 100 x 200 mm, 200 x 100 mm, 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 200 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm and 600 x 400 mm

Features

Mounts Your TV or Monitor to the Wall

• Fits most flat-panel televisions, monitors and other displays from 37 to 70 in.
• Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants

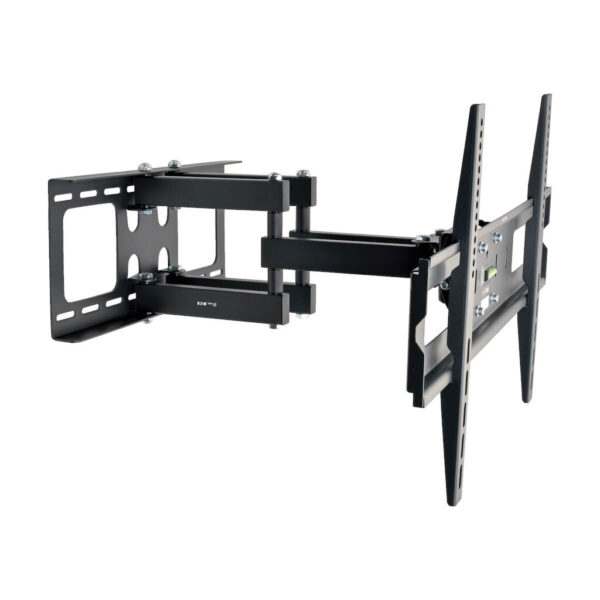

• Articulated arm with 6 pivots adjusts independently for angle
• Mounting hardware included

Convenient One-Touch Adjustment

• 120° swivel, -15° to +15° tilt and -3° to +3° screen level adjustment capability provides comfortable viewing from multiple angles

Durable Metal Construction

• Supports up to 165 lbs (74.8 kgs).
• Scratch-resistant powder-coated finish blends with any décor
• Built-in bubble level allows accurate display leveling

VESA Compliance

• Supports the following VESA mounting hole patterns: 100 x 100 mm, 100 x 200 mm, 200 x 100 mm, 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 200 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm and 600 x 400 mm

Package Includes

• Wall mount
• Mounting template
• (2) Adapter brackets
• (4) M5 x 14 screws
• (4) M6 x 14 screws
• (4) M6 x 30 screws
• (4) M8 x 20 screws
• (4) M8 x 30 screws
• (4) Washers
• (8) Small spacers
• (4) Big spacers
• (6) Anchor bolts
• (6) Concrete anchors
• (6) D6 washers
• Owner’s manual
