Tripp Lite series Tilt Wall Mount for 26″ to 55″ TVs and Monitors, -10° to +10° Tilt

Name: Tripp Lite series Tilt Wall Mount for 26" to 55" TVs and Monitors, -10° to +10° Tilt
Brand: Tripp Lite
SKU: DWT2655XP
Price: 90.23 CAD
Availability: InStock

$90.23

Brand: Tripp Lite

Part Number (MPN): DWT2655XP

UPC / GTIN: 037332183590

Datasheet: PDF

Tripp Lite series Tilt Wall Mount for 26″ to 55″ TVs and Monitors, -10° to +10° Tilt

Manufacturer Warehouse: 2,154 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Fits most flat-panel displays from 26 to 55 in.
Hangs out of sight for a sleek, professional appearance
-10° to +10° tilt capability for wide range of motion
Supports up to 165 lbs (74.8 kgs)

Overview

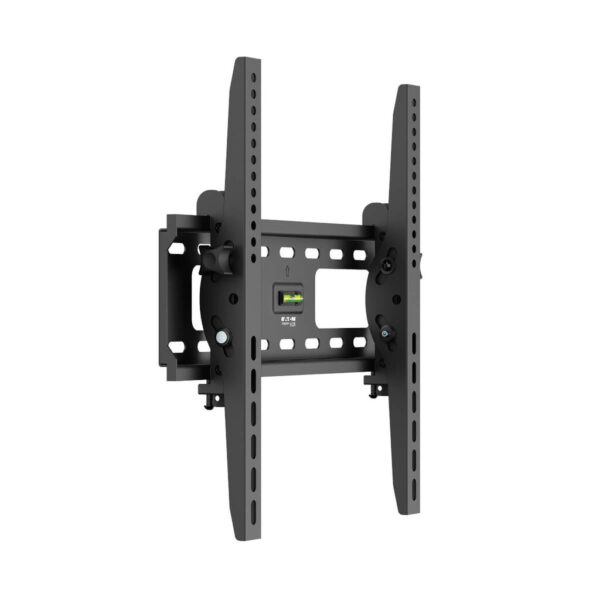

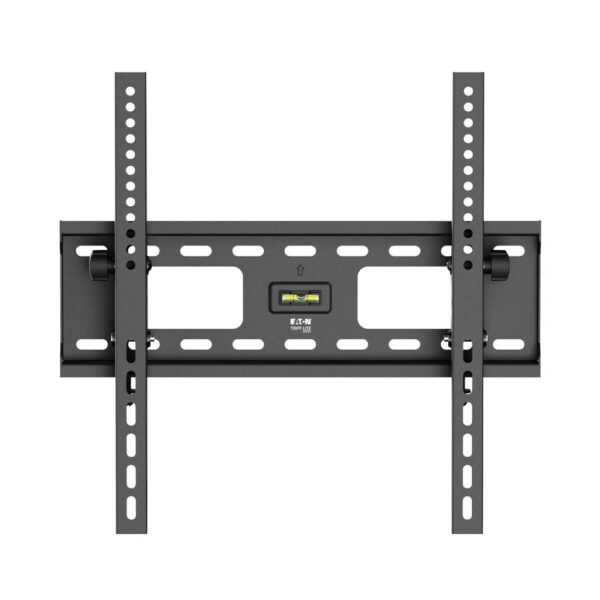

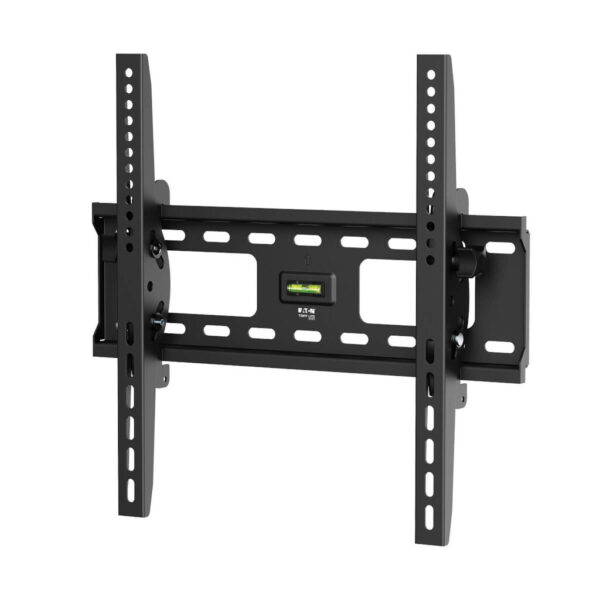

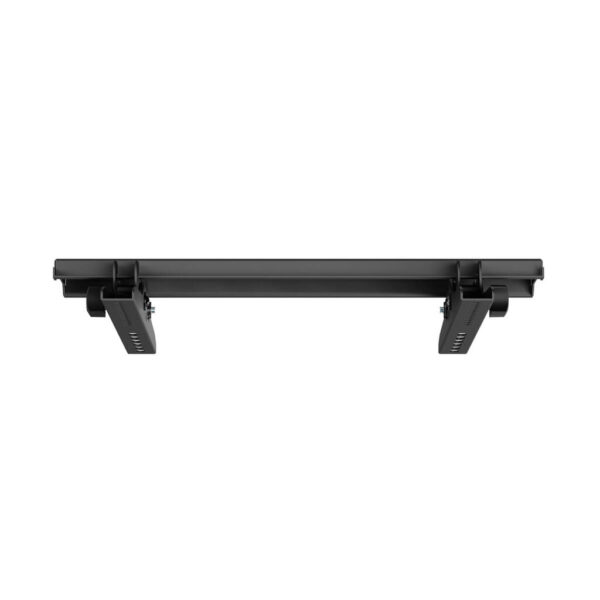

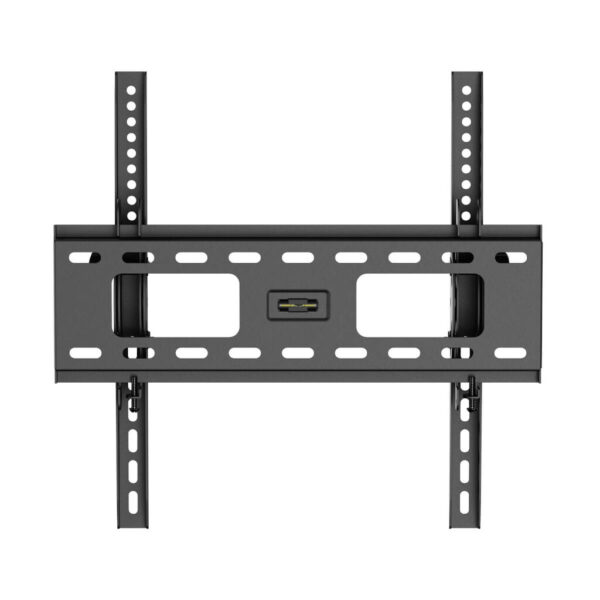

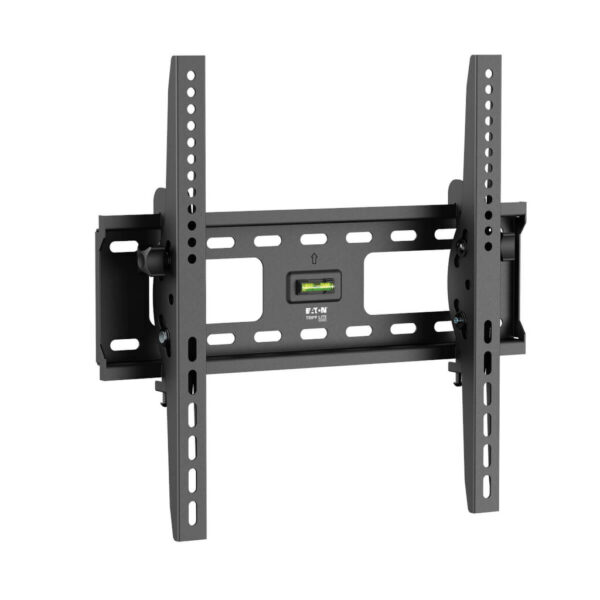

The VESA-compliant DWT2655XP Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 26 to 55 inches. A -10° to +10° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 165 lbs (74.8 kgs). Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm and 400 x 400 mm

Features

Mounts Your TV or Monitor to the Wall

Fits most flat-panel televisions, monitors and other displays from 26 to 55 in.
Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
Mounts out of sight behind display for sleek, professional appearance
Mounting hardware included

Convenient One-Touch Adjustment

-10° to +10° tilt capability provides comfortable viewing from multiple angles
Improves viewing angles in applications where audience is below the display

Durable Metal Construction

Supports up to 165 lbs (74.8 kgs).
Open frame allows easy wall access
Adjustable mounting rails compensate for off-center wall studs
Built-in bubble level for accurate display leveling
Scratch-resistant powder-coated finish

VESA Compliance

Supports the following VESA mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm and 400 x 400 mm

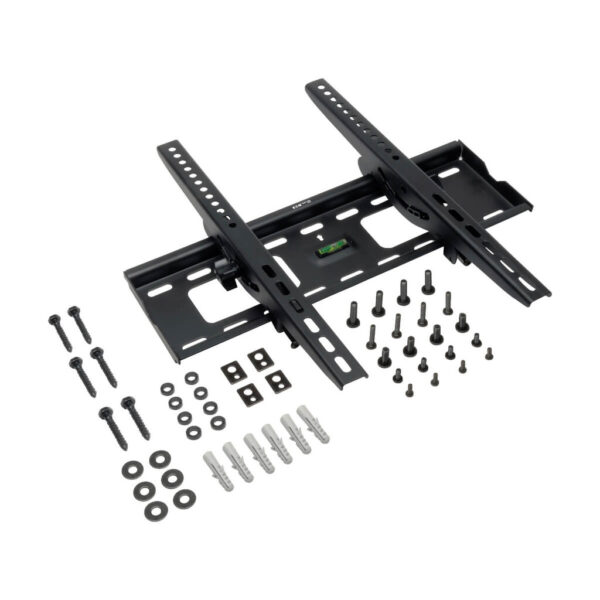

Package Includes

DWT2655XP Tilt Wall Mount for 26″ to 55″ TVs and Monitors
(4) M5 x 14 screws
(4) M6 x 14 screws
(4) M6 x 30 screws
(4) M8 x 20 screws
(4) M8 x 30 screws
(4) Washers
(8) Small spacers
(4) Big spacers
(6) Anchor bolts
(6) Concrete anchors
(6) D6 washers
Owner’s manual

Weight	6.72 lbs
Dimensions	19.2 × 6.2 × 3 in
UPC Code	037332183590
Weight Capacity (kg)	165.35
Max Display Size	55
Brand	Tripp Lite
Device Compatibility	Monitor/HDTV
Color	Black
Material of Construction	Steel
VESA Pattern (mm)	200×200; 200×300; 200×400; 300×200; 300×300; 300×400; 400×200; 400×300; 400×400
Motion	Tilt
Mounting Location	Wall
Degrees of Motion	-10/+10 Tilt
Minimum Screen Size (cm)	66.04
Maximum Screen Size (cm)	139.7
Maximum Weight Capacity (kg)	75
Number of Displays	1
Shipping Dimensions (hwd / cm)	7.62 x 15.75 x 48.77
Shipping Weight (kg)	3.05
Unit Dimensions (hwd / cm)	15 x 46 x 6.3
Unit Weight (kg)	3.08
Assembly Required	Yes
Cord Management	No
Tools Necessary	Yes
Product Compliance	RoHS; RoHS3; REACH
Product Warranty Period (Worldwide)	5-year limited warranty
