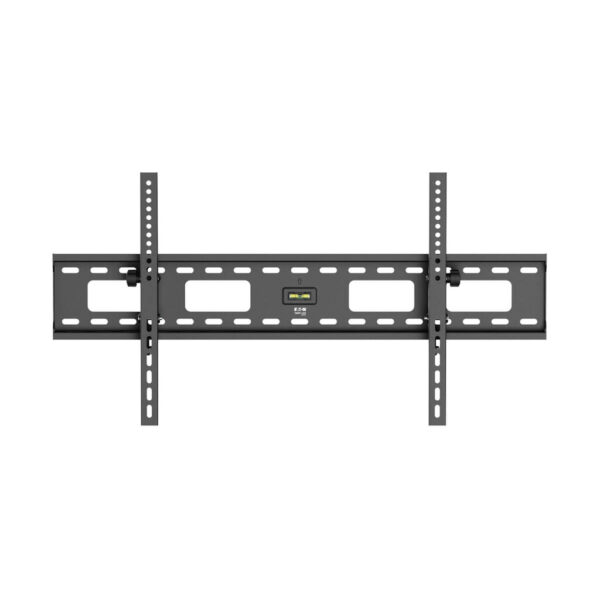

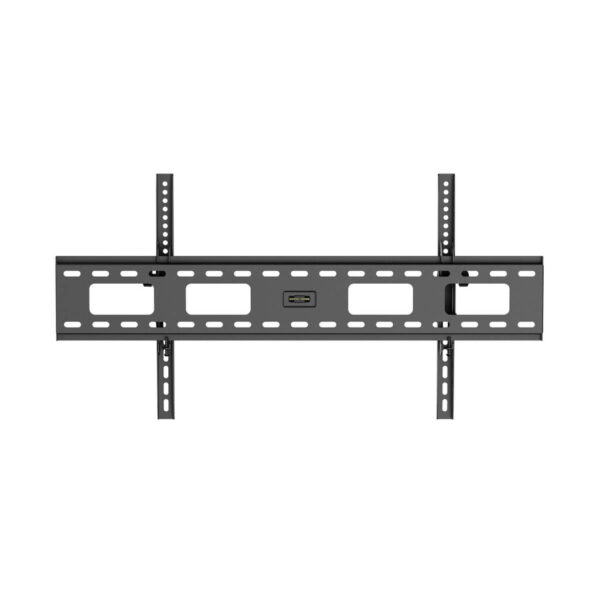

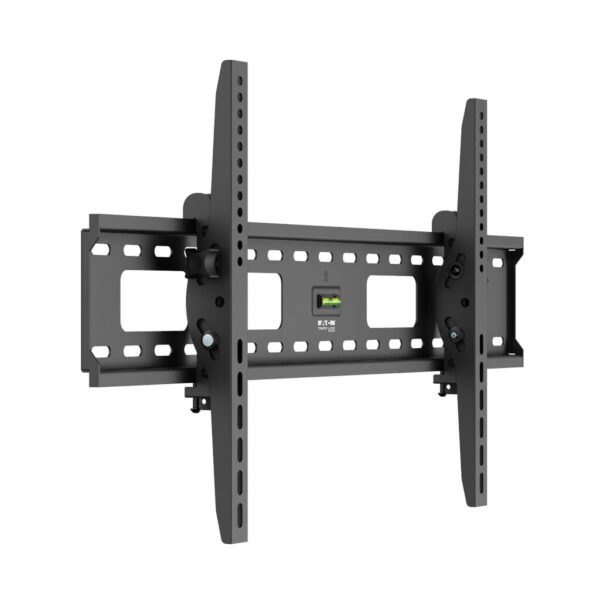

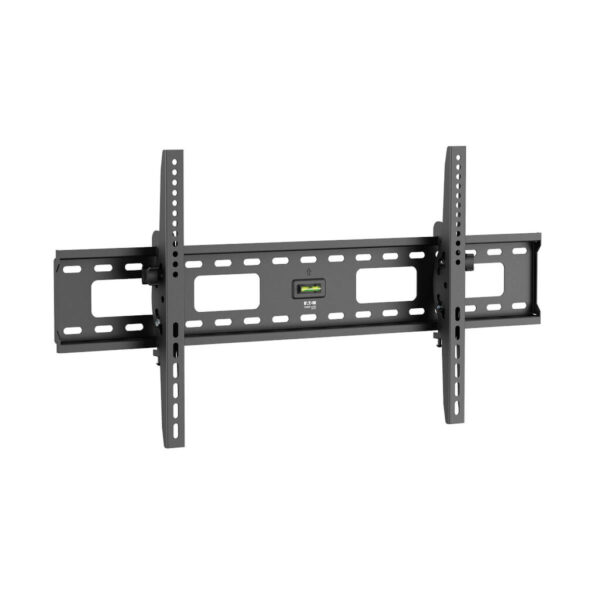

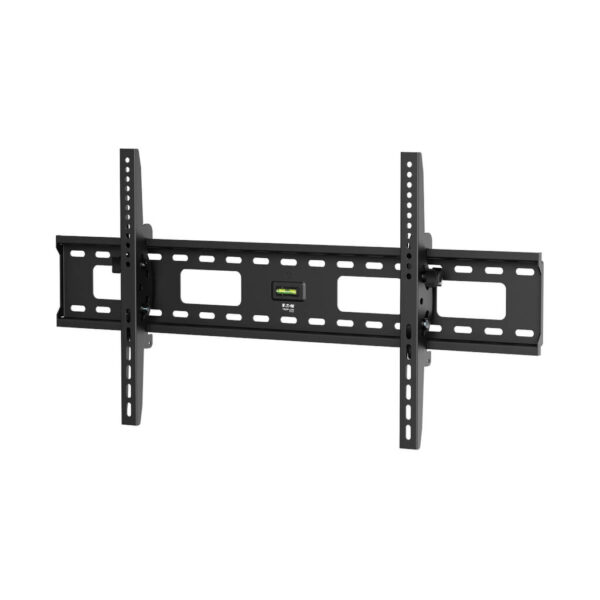

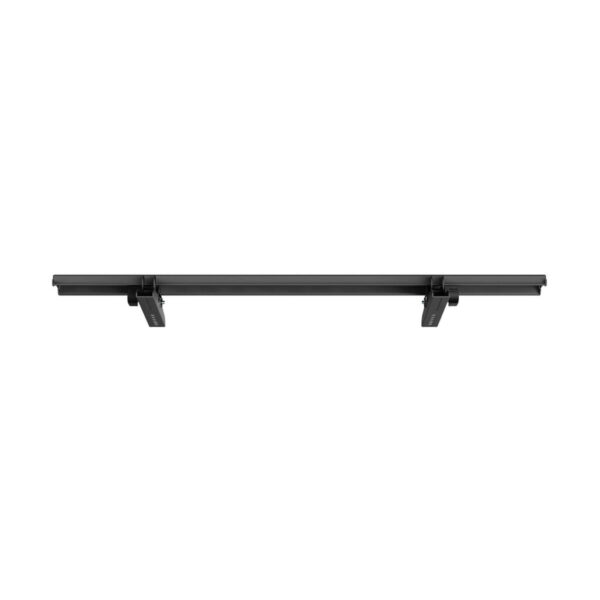

Tripp Lite series Tilt Wall Mount for 45″ to 85″ TVs and Monitors

Quick Specs

• Fits most flat-panel displays from 45 to 85 in.
• Hangs out of sight for a sleek, professional appearance
• -10° to +10° tilt capability for comfortable viewing
• Supports up to 200 lbs (90.7 kgs)

Overview

The VESA-compliant DWT4585X Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 45 to 85 inches. A -10° to +10° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 200 lbs (90.7 kgs). Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 800 x 300 mm and 800 x 400 mm

Features

Mounts Your TV or Monitor to the Wall

• Fits most flat-panel televisions, monitors and other displays from 45 to 85 in.
• Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
• Mounts out of sight behind display for sleek, professional appearance
• Mounting hardware included

Convenient One-Touch Adjustment

• -10° to +10° tilt capability provides comfortable viewing from multiple angles
• Improves viewing angles in applications where audience is below the display

Durable Metal Construction

• Supports up to 200 lbs (90.7 kgs).
• Open frame allows easy wall access
• Adjustable mounting rails compensate for off-center wall studs
• Built-in bubble level for accurate display leveling
• Scratch-resistant powder-coated finish

VESA Compliance

• Supports the following VESA mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 800 x 300 mm and 800 x 400 mm

Package Includes

• DWT4585X Tilt Wall Mount for 45″ to 85″ TVs and Monitors
• (4) M5 x 14 screws
• (4) M6 x 14 screws
• (4) M6 x 30 screws
• (4) M8 x 20 screws
• (4) M8 x 30 screws
• (4) Washers
• (8) Small spacers
• (4) Big spacers
• (6) Anchor bolts
• (6) Concrete anchors
• (6) D6 washers
• Owner’s manual
