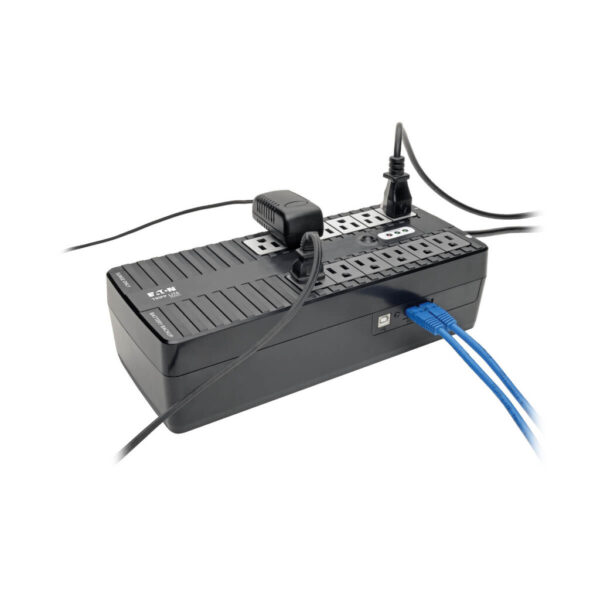

Tripp Lite series 750VA 450W Standby UPS – 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop / Wall Mount

$166.28

Brand: Tripp Lite
Part Number (MPN): INTERNET750U
UPC / GTIN: 037332211088
Datasheet: PDF

Tripp Lite series 750VA 450W Standby UPS – 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop / Wall Mount

Toronto Stock: 56 available
Manufacturer Warehouse: 3,124 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
  • Keeps AC power running during blackouts to allow time for file saves and safe shutdown
  • 12 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
  • Home-friendly alarm remains silent in backup mode, sounding only when imperative
  • High >98% efficiency with low BTU ratings saves electricity and lowers your energy costs

Features

750VA/450W/120V Battery Backup for PCs, Home Theater and Digital SignageThe standby INTERNET750U UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The 12-outlet 120V battery backup is ideal protection for your home office, media center or commerce components, including computers, routers, printers, NAS drives, HDTVs, Blu-ray players, game consoles, media players, DVRs and audio receivers.
Allows Time to Back Up Critical Files During a Blackout Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the INTERNET750U should keep an energy-efficient desktop computer with small LCD monitor powered as long as 36 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.

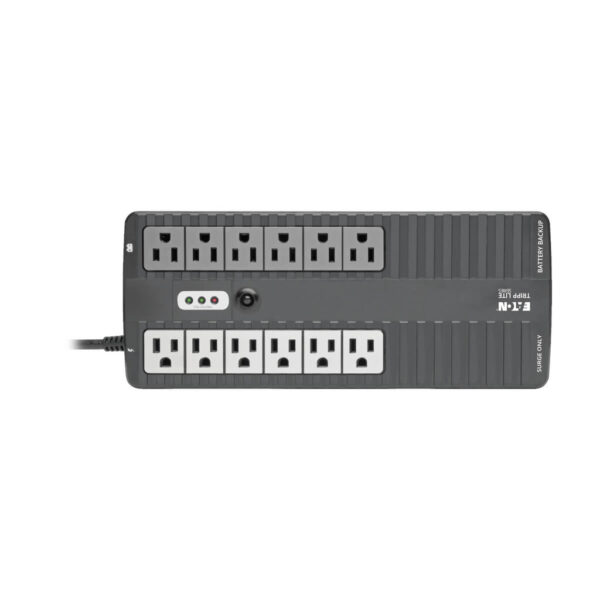

12 NEMA 5-15R Outlets Protect Your Connected ComponentsSix 5-15R outlets provide battery backup and surge protection for your computer, monitor and other crucial components. The other six 5-15R outlets provide surge suppression only for printers, speakers and other desktop equipment regarded as non-essential during a blackout. A high >98% line mode efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
316 Joules Fight Back Against Unexpected Power SurgesA 316-joule surge suppression rating protects connected components from the harmful effects of power surges. Dual network data line surge suppression jacks protect a wired peripheral from dangerous surges on a single 10/100Base-T or dial-up network connection.
HID-Compliant USB Port Allows for Automatic Saves and ShutdownsThis USB port connects the INTERNET750U to a computer running free downloadable PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. USB cable is included.
Combats Electromagnetic Interference That Can Harm EquipmentVarious electromagnetic and radio sources found in virtually every home and business can cause disruptive interference on the AC line. Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a common cause of performance problems and can lead to incremental hardware damage, data corruption and audio/video transmission problems. The INTERNET750U incorporates technology that filters out disruptive line noise so that it won’t affect your equipment.
Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7The UPS remains silent in both line and battery backup modes. The alarm sounds only to warn you of a low battery or fault condition. Front-panel LEDs indicate operating mode, low- and replace-battery, overload and fault conditions.

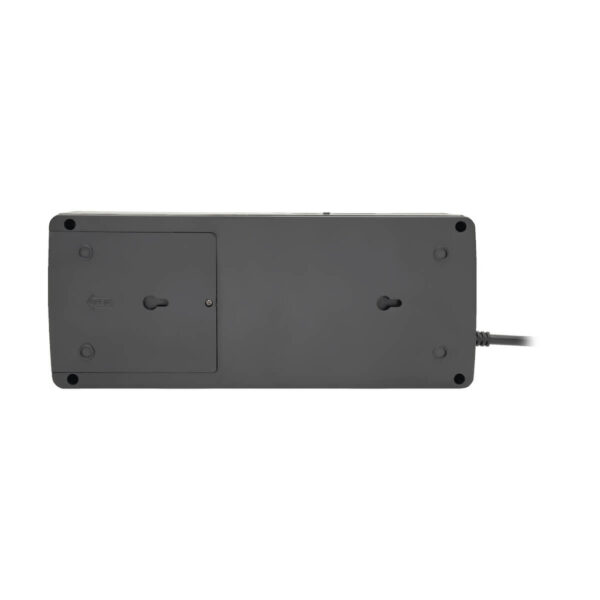

Compact Housing Compatible with Easy Desktop or Wall-Mount InstallationThe space-saving ABS housing fits on a desktop, shelf or anywhere else convenient to your workstation or home theater. Keyhole mounting tabs on the rear allow easy wall-mount installation. The five-foot power cord with NEMA 5-15P plug connects to any compatible AC outlet.

Package Includes

  • INTERNET750U 750VA 450W 120V Standby UPS with 12 Outlets
  • USB cable
  • Owner’s manual
Weight 8.14 lbs
Dimensions 14.92 × 5.98 × 7.83 in
UPC Code

037332211088

Cord Length

4.92

Max Input Amps

10

Output (W)

450

Output VA

750

Joule Rating

316

Brand

UPS Type

Standby

Input Phase

Single-Phase

Rated input current (Maximum Load)

10A

Nominal Input Voltage(s) Supported

120V AC

UPS Input Connection Type

5-15P

Input Circuit Breakers

10A

UPS Input Cord Length (ft.)

5

UPS Input Cord Length (m)

1.5

Output Capacity (kVA)

0.75

Output Capacity (kW)

0.45

Output Capacity Details

6.3A @ 120V. 110%±10%,GOES TO FAULT AFTER 5MIN; 120%±10%,GOES TO FAULT IMMEDIATELY 110%±10%,SHUTS DOWN IN 5 SEC; 120%±10%, SHUTS DOWN IMMEDIATELY

Power Factor

0.6

Nominal Voltage Details

120V sinusoidal in line mode and 120V PWM in battery mode

Frequency Compatibility

50 / 60 Hz

Frequency Compatibility Details

Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal.

Output Voltage Regulation (Line Mode)

120V (±20%)

Output Voltage Regulation (Battery Mode)

120V (±10%)

UPS Output Receptacles (Surge Suppression Only)

6 UPS outlets, 6 surge-only outlets

Hot-Swap PDU options

PDUB15 (2U / 8 5-15R outlets)

Output AC Waveform (AC Mode)

Pure Sine wave

Output AC Waveform (Battery Mode)

PWM sine wave

Nominal Output Voltage(s) Supported

110V; 115V; 120V

Output Receptacles

(12) 5-15R

Battery Type

Valve Regulated Lead Acid (VRLA)

Runtime Full Load (min.)

2 min. (450W)

Runtime Half Load (min.)

8.6 min. (225W)

DC System Voltage (VDC)

12

Battery Recharge Rate (Included Batteries)

8 hours (10% to 90%)

Battery Access

Battery access door

Battery Replacement Description

Replaceable internal battery. Contact customer support for assistance.

Voltage Regulation Description

Input voltage range of 95 to 145V

Switches

Switch controls power off/on status

Audible Alarm

UPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace-battery conditions

LED Indicators

Set of 3 status LEDs indicate operating mode, low-battery, overload, replace-battery and fault conditions

UPS Dataline Suppression

1 line TEL/DSL or Ethernet

EMI / RFI AC Noise Suppression

Yes

AC Suppression Joule Rating

316

AC Suppression Response Time

Instantaneous

Primary Form Factor

Desktop

Rack Height

0U

Installation Form Factors Supported with Included Accessories

Tower; Ultra-compact desktop; Wallmount

Primary UPS Depth (mm)

310

Primary UPS Height (mm)

85

Primary UPS Width (mm)

130

Shipping Dimensions (hwd / cm)

19.89 x 15.19 x 37.90

Shipping Weight (kg)

3.69

UPS Housing Material

ABS

UPS Power Module Dimensions (hwd, cm)

8.51 x 13.00 x 30.99

UPS Power Module Weight (kg)

3.39

Unit Weight (kg)

3.69

Operating Temperature Range

32° to 104°F (0° to 40°C)

Storage Temperature Range

5° to 113°F (-15° to 45°C )

Relative Humidity

0-90% non-condensing

AC Mode BTU / Hr. (Full Load)

8.3

AC Mode Efficiency Rating (100% Load)

>98%

Operating Elevation

0-6562 ft. (0-2000 m)

PowerAlert Software

For local monitoring via the UPS’s built-in USB port, download PowerAlert software at https://tripplite.eaton.com/products/power-alert

Communications Cable

USB interface cable included

WatchDog Compatibility

Supports Watchdog application, OS and hard-reboot restart options for remote applications

Network Management Card Description

Network management not supported

Communications Interface

USB (HID enabled)

Transfer Time

6 milliseconds typical (10 milliseconds max)

Low Voltage Transfer to Battery Power (Setpoint)

95

High Voltage Transfer to Battery Power (Setpoint)

145

Cold Start (Startup in Battery Mode During a Power Failure)

Cold-start operation supported

High Availability UPS Features

Surge/noise protection

Green Energy-Saving Features

Greater than 95% efficiency – GREEN UPS

UPS Applications

Computer/Peripherals; Audio/Video; Retail/Point of Sale; Hospitality

Product Certifications

RETIE (Colombia); CSA (Canada); NOM (Mexico); UL 1778

Product Compliance

RoHS; ENERGY STAR Qualified; FCC Part 15 Class B (USA)

Product Warranty Period (U.S. & Canada)

3-year limited warranty

Connected Equipment Insurance (U.S., Canada & Puerto Rico)

$100,000 Ultimate Lifetime Insurance
