Tripp Lite series Isolator Series 120V 250W UL 60601-1 Medical-Grade Isolation Transformer with 2 Hospital-Grade Outlets, TAA

Quick Specs

• Complete line isolation and noise filtering
• 250 watts, 2 outlets, 10-ft. (3.05 m) power cord
• Hospital-grade plug and receptacles
• Lowers cumulative leakage current of connected equipment to under 100 μA
• TAA-compliant

Overview

Isolator Series UL 60601-1 Listed Medical-Grade Isolation Transformers offer line isolation and continuous noise filtering. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL 60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protecting sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads. Reduces impact of utility-related surge conditions. Transformer filtering provides continuous common-mode noise rejection with no wearable parts. Reduces 6000V IEEE587 Category A & B ring wave and combination wave test surges to only 0.5V common mode. Includes two NEMA 5-15R hospital-grade output receptacles, 10-ft. (3.05 m) power cord, hospital-grade input plug, circuit breaker overload protection, lighted power switch and rugged all-metal unit housing. Ships ready for placement in any industrial, medical, office or network environment. PLUG/OUTLETS: Input – NEMA 5-15P Hospital Grade; Output – 2 NEMA 5-15R Hospital Grade ELECTRICAL: 120V AC, 60 Hz, 2.2A (requires NEMA 5-15R wall receptacle).

Features

• Offers line isolation and continuous noise filtering
• Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line
• Full UL 60601-1 medical-grade listing with hospital-grade plug and outlet receptacles for the protection of sensitive electronic equipment in patient-care areas
• Reduces cumulative leakage current of the Isolator and connected equipment to levels less than 100 μA
• Floating AC output prevents noise coupling from noisy hospital ground circuits
• Inexpensive alternative to dedicated circuits and site electrical upgrades
• Removes EMI/RFI noise, utility switching transients, load-generated harmonics and ground loops
• Transformer filtering offers continuous common-mode noise rejection with no wearable parts
• Reduces 6000V IEEE587 Cat A & B ring wave and combination wave test surges to only 0.5V common mode

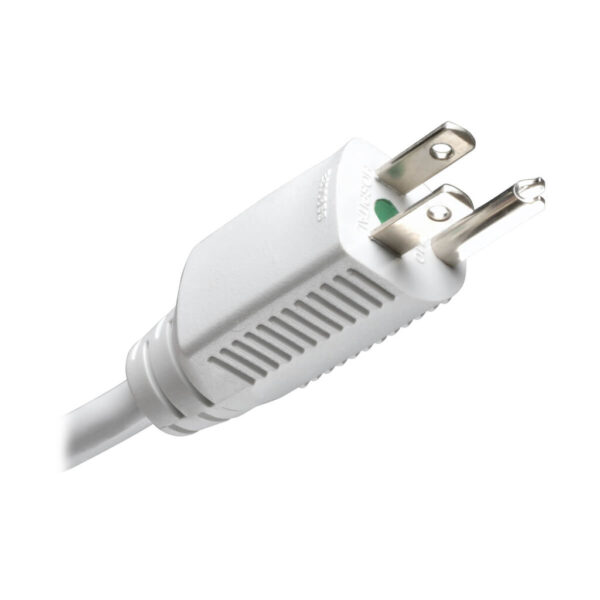

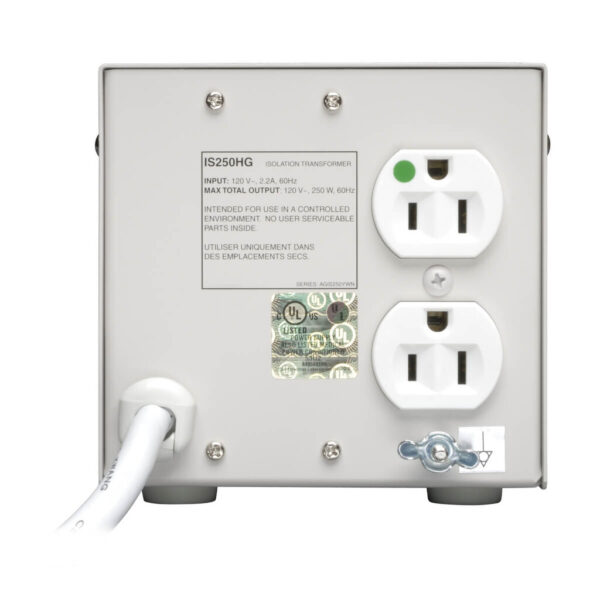

• Includes 2 NEMA 5-15R hospital-grade output receptacles, 10-ft. (3.05 m) power cord, hospital-grade input plug, circuit breaker overload protection, lighted power switch and rugged all-metal unit housing
• Ships ready for upright tower placement in any industrial, medical, office or network environment

Package Includes

• IS250HG Isolation Transformer
• Instruction manual with warranty information
