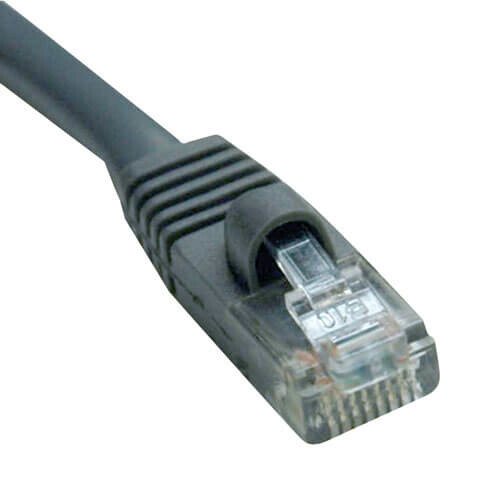

Tripp Lite series Cat5e 350 MHz Outdoor-Rated Molded (UTP) Ethernet Cable (RJ45 M/M), PoE – Gray, 150 ft. (45.72 m)

$73.75

Brand: Tripp Lite
Part Number (MPN): N007-150-GY
UPC / GTIN: 037332140609
Datasheet: PDF

Tripp Lite series Cat5e 350 MHz Outdoor-Rated Molded (UTP) Ethernet Cable (RJ45 M/M), PoE – Gray, 150 ft. (45.72 m)

Manufacturer Warehouse: 32 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Molded cables bond the RJ-45 connector and cable with a molded boot, leaving the connector’s lock exposed. They are best suited for environments with few connection/reconnection cycles, such as areas that are difficult to reach.
  • Snagless cables have a protective flap on the boot to safeguard the RJ-45 connector’s lock, making them ideal for settings where the plug is frequently unplugged.

Overview

Outdoor-Rated Cat5e Ethernet Cables are manufactured with high-quality UV-resistant PVC cable. With an operating temperature range of -40°C to 60°C (-40°F to 140°F), this 150-foot (45.7-meter) cable handles a wide range of weather conditions and the degrading effects of Ultra Violet rays. Molded, snagless connectors provide a secure connection every time. Cables meet EIA/TIA 568-B.2 and are UL verified to Cat5e.

Features

  • UV (Ultra Violet) Resistant Gray PVC jacket
  • CMR, CMX, and UL444 Rated
  • EIA/TIA 568-B.2 Compliant
  • UL Verified Category 5e
  • Molded, Snagless Connectors
  • 4pr, Solid Conductors for long distance signal integrity

Package Includes

  • 150-ft. (45.72 m) Outdoor Rated Cat5e Patch Cable
Weight 3.47 lbs
Dimensions 0.5 × 14 × 17 in
UPC Code

037332140609

Cord Length

150.03

Brand

Technology

Cat5/5e

Power Over Cable (PoC) Support

No

Side A - Connector 1

RJ45 (MALE)

Side B - Connector 1

RJ45 (MALE)

Contact Plating

Gold

PoE Type

Type 2 PoE+ (30W, IEEE 802.3at)

Connector Type

Molded

Wiring Configuration

EIA/TIA 568B

Cable Jacket Color

Gray

Cable Jacket Material

PVC

Cable Jacket Rating

CMR; CMX

Cable Shielding

UTP

Cable Outer Diameter (OD)

5.5 mm

Number of Conductors

4 Pair

Conductor Material

Solid Copper

Conductor Gauge

24 AWG

Cable Length (m)

45.73

Cable Length (cm)

4572

Shipping Dimensions (hwd / cm)

43.18 x 35.56 x 1.27

Shipping Weight (kg)

1.57

Operating Temperature Range

14° to 104°F (-10° to 40°C)

Storage Temperature Range

5° to 122°F (-15° to 50°C)

Operating Humidity Range

0% to 90% RH, Non-Condensing

Storage Humidity Range

0% to 90% RH, Non-Condensing

Bandwidth per TIA Standard

100 MHz

Maximum Bandwidth as Tested

350 MHz

Network Compatibility

1 Gbps (Gigabit)

IEEE Standards Supported

802.3ab; 802.3at

Product Certifications

UL Listed; cUL Listed

Product Compliance

CE (Europe); RoHS; IEEE 802.3ab 1000Base-T; IEEE 802.3at PoE+; REACH; UKCA

Product Warranty Period (Worldwide)

Lifetime limited warranty
