Tripp Lite series Cat5e 350 MHz Crossover Molded (UTP) Ethernet Cable (RJ45 M/M), PoE - Gray, 7 ft. (2.13 m)

Tripp Lite series Cat5e 350 MHz Crossover Molded (UTP) Ethernet Cable (RJ45 M/M), PoE – Gray, 7 ft. (2.13 m)

$3.08

Brand: Tripp Lite
Part Number (MPN): N010-007-GY
UPC / GTIN: 037332013026
Datasheet: PDF

Tripp Lite series Cat5e 350 MHz Crossover Molded (UTP) Ethernet Cable (RJ45 M/M), PoE – Gray, 7 ft. (2.13 m)

Manufacturer Warehouse: 167 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Premium cabling for Category 5 and 5e applications—rated for 350 MHz/1 Gbps communications
  • IEEE 802.3ab
  • PVC 4-pair stranded UTP
  • All cables feature boots with integral strain-relief and RJ45 (Male) connectors

Overview

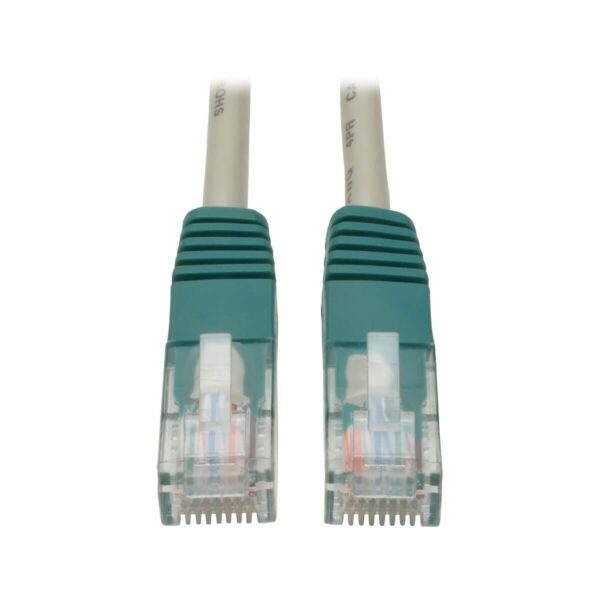

This gray Cat5e cross-over molded cable has two standard RJ45 molded male connectors featuring integral strain relief. The cable is designed to connect hub-to-hub, PC-to-PC or Mac-to-Mac and is perfect in conjunction with 10 and 100Base-T networks. Molded connectors are a different color to help identify this cable as a cross-over cable and not a standard Ethernet cable. Manufactured from PVC 4-pair stranded UTP and rated for 350 MHz/1 Gbps communication. Cables are offered in a variety of lengths and colors for all Cat5/5e cabling needs. Snagless Cat5e Ethernet cables are also available. Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 5e draft 11).

Features

  • Cabling for category 5 (Cat5) and 5e (Cat5e) applications
  • Length: 7-ft. (2.13 m) color: gray with green connectors. Connectors: RJ45 male
  • Cross-over wiring designed to connect hub-to-hub or PC-to-PC
  • Feature molded connectors with integral strain relief
  • Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off during installation
  • PVC 4-pair stranded UTP
  • Rated for 350MHz/ 1Gbps communication
  • Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 5e draft 11)
  • Available in other lengths

Package Includes

  • 7-ft. (2.13 m) Cat5e Gray Crossover Cable Molded 350MHz
Weight 0.145 lbs
Dimensions 0.5 × 7 × 9 in
UPC Code

037332013026
Cord Length

6.99
Brand

Technology

Cat5/5e
Power Over Cable (PoC) Support

No
Side A - Connector 1

RJ45 (MALE)
Side B - Connector 1

RJ45 (MALE)
Crossover Wiring

Yes
Contact Plating

Gold
PoE Type

Type 2 PoE+ (30W, IEEE 802.3at)
Connector Type

Molded; Crossover
Wiring Configuration

EIA/TIA 568B to EIA/TIA 568A
Cable Jacket Color

Gray
Cable Jacket Material

PVC
Cable Jacket Rating

CM
Cable Shielding

UTP
Cable Outer Diameter (OD)

5.0 mm
Number of Conductors

4 Pair
Conductor Material

Stranded Copper
Conductor Gauge

26 AWG
Cable Length (m)

2.13
Cable Length (cm)

213.4
Shipping Dimensions (hwd / cm)

22.86 x 17.78 x 1.27
Shipping Weight (kg)

0.07
Operating Temperature Range

14° to 104°F (-10° to 40°C)
Storage Temperature Range

5° to 122°F (-15° to 50°C)
Operating Humidity Range

0% to 90% RH, Non-Condensing
Storage Humidity Range

0% to 90% RH, Non-Condensing
Bandwidth per TIA Standard

100 MHz
Maximum Bandwidth as Tested

350 MHz
Network Compatibility

1 Gbps (Gigabit)
IEEE Standards Supported

802.3ab; 802.3at
Product Certifications

UL Listed; cUL Listed
Product Compliance

CE (Europe); RoHS; IEEE 802.3ab 1000Base-T; IEEE 802.3at PoE+; REACH; UKCA
Product Warranty Period (Worldwide)

Lifetime limited warranty
