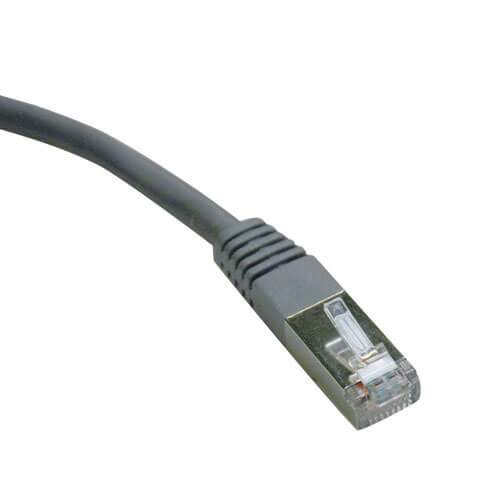

Tripp Lite series Cat5e 350 MHz Molded Shielded (STP) Ethernet Cable (RJ45 M/M), PoE, Gray, 100 ft. (30.5 m)

Tripp Lite series Cat5e 350 MHz Molded Shielded (STP) Ethernet Cable (RJ45 M/M), PoE, Gray, 100 ft. (30.5 m)

$44.40

Brand: Tripp Lite
Part Number (MPN): N105-100-GY
UPC / GTIN: 037332099129
Datasheet: PDF

Tripp Lite series Cat5e 350 MHz Molded Shielded (STP) Ethernet Cable (RJ45 M/M), PoE, Gray, 100 ft. (30.5 m)

Status: On Backorder (Contact us for lead times)
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Protect your network data from EMI/RFI interference
  • Molded boot provides extra strain relief and durability

Overview

Protect your high-speed network from noise and electromagnetic interference with this 100-foot (30.5 meters) Cat5e Gray Shielded Ethernet cable. This STP cable features two shielded RJ45 gold molded male connectors with integral strain relief. The cable is manufactured from PVC, 4-pair, stranded shielded twisted pair, and is rated for 350 MHz/1 Gbps communication.

Features

  • Provides EMI/RFI shielding in Ethernet networks
  • Shielded RJ45 connectors with gold-plated contacts
  • 4-pair 24 AWG Stranded STP with drain wire
  • Molded boot for extra strain relief and durability
  • TSB 568B (AT&T 258A)Wiring
  • TIA/EIA and UL Certified

Package Includes

  • 100-ft. (30.5 m) Cat5e Gray Shielded STP Patch Cable
Weight 2.85 lbs
Dimensions 0.5 × 10 × 12 in
UPC Code

037332099129
Cord Length

100.03
Brand

Technology

Cat5/5e
Power Over Cable (PoC) Support

No
Side A - Connector 1

RJ45 (MALE)
Side B - Connector 1

RJ45 (MALE)
Contact Plating

Gold
PoE Type

Type 2 PoE+ (30W, IEEE 802.3at)
Connector Type

Molded
Wiring Configuration

EIA/TIA 568B
Cable Jacket Color

Gray
Cable Jacket Material

PVC
Cable Jacket Rating

CM
Cable Shielding

STP
Cable Outer Diameter (OD)

5.9 mm
Number of Conductors

4 Pair
Conductor Material

Stranded Copper
Conductor Gauge

24 AWG
Cable Length (m)

30.49
Cable Length (cm)

3048
Shipping Dimensions (hwd / cm)

30.48 x 25.40 x 1.27
Shipping Weight (kg)

1.29
Operating Temperature Range

14° to 104°F (-10° to 40°C)
Storage Temperature Range

5° to 122°F (-15° to 50°C)
Operating Humidity Range

0% to 90% RH, Non-Condensing
Storage Humidity Range

0% to 90% RH, Non-Condensing
Bandwidth per TIA Standard

100 MHz
Maximum Bandwidth as Tested

350 MHz
Network Compatibility

1 Gbps (Gigabit)
IEEE Standards Supported

802.3ab; 802.3at
Product Certifications

UL Listed; cUL Listed
Product Compliance

CE (Europe); RoHS; IEEE 802.3ab 1000Base-T; IEEE 802.3at PoE+; REACH; UKCA
Product Warranty Period (Worldwide)

Lifetime limited warranty
