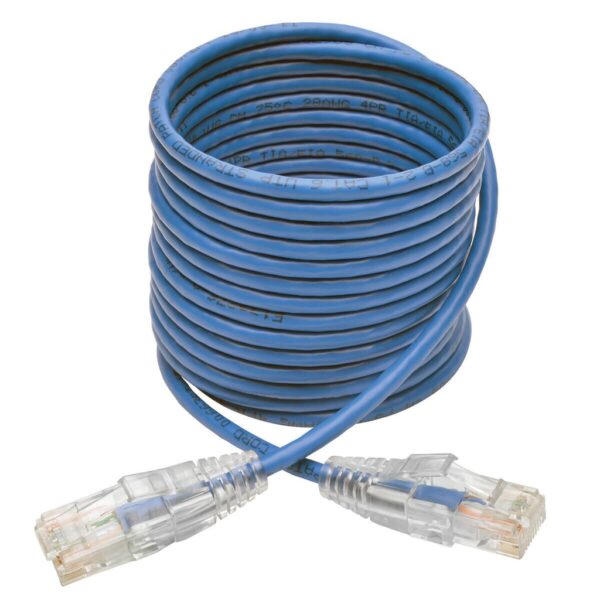

Tripp Lite series Cat6 Gigabit Snagless Slim UTP Ethernet Cable (RJ45 M/M), PoE, Blue, 6 ft. (1.83 m)

Name: Tripp Lite series Cat6 Gigabit Snagless Slim UTP Ethernet Cable (RJ45 M/M), PoE, Blue, 6 ft. (1.83 m)
Brand: Tripp Lite
SKU: N201-S06-BL
Price: 4.61 CAD
Availability: InStock

$4.61

Brand: Tripp Lite

Part Number (MPN): N201-S06-BL

UPC / GTIN: 037332193087

Datasheet: PDF

Tripp Lite series Cat6 Gigabit Snagless Slim UTP Ethernet Cable (RJ45 M/M), PoE, Blue, 6 ft. (1.83 m)

Toronto Stock: 74 available

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Molded cables bond the RJ-45 connector and cable with a molded boot, leaving the connector’s lock exposed. They are best suited for environments with few connection/reconnection cycles, such as areas that are difficult to reach.
Snagless cables have a protective flap on the boot to safeguard the RJ-45 connector’s lock, making them ideal for settings where the plug is frequently unplugged.

Features

Perfect Solution for Your Networking Needs

Ideal for connecting components like printers, computers, copiers, routers, servers, modems and switches in high-density data centers
Designed for fast transmission and excellent signal quality
Ensures peak performance throughout your LAN
Delivers speeds up to Cat6 Gigabit/1 Gbps

Special Slim Design

More than 38% smaller in diameter than standard Cat6 cable
Increases airflow in tight spaces
Extra flexible for installing around corners and through cable management panels

Premium Construction for Superior Performance

Made from 28 AWG copper wire
PVC 4-pair stranded UTP
RJ45 male connectors
Integral strain relief for long life

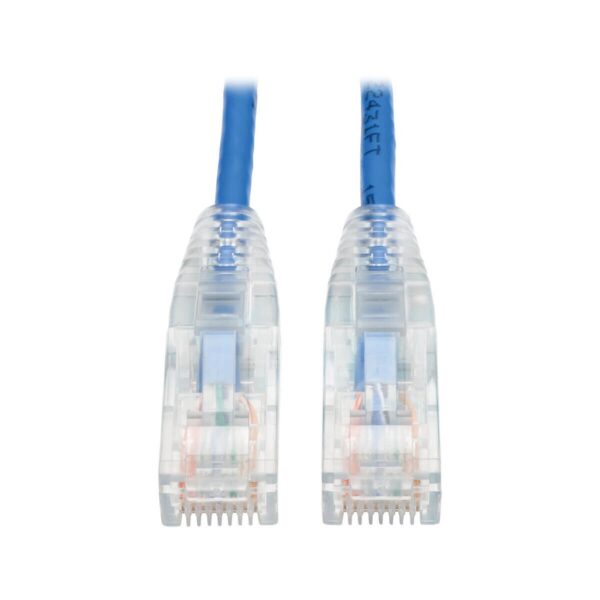

Snagless Connectors

snagless boots prevent locking tabs from damage

Package Includes

N201-S06-BL Cat6 Gigabit Snagless Slim UTP Patch Cable (RJ45 M/M), 6 ft.

Weight	0.09 lbs
Dimensions	0.5 × 7 × 9 in
UPC Code	037332193087
Cord Length	6
Brand	Tripp Lite
Technology	Cat6
Side A - Connector 1	RJ45 (MALE)
Side B - Connector 1	RJ45 (MALE)
Contact Plating	Gold
PoE Type	Type 1 PoE (15.4W, IEEE 802.3af); Type 2 PoE+ (30W, IEEE 802.3at)
Connector Type	Snagless
Wiring Configuration	EIA/TIA 568B
Cable Jacket Color	Blue
Cable Jacket Material	PVC
Cable Jacket Rating	CM
Cable Shielding	UTP
Cable Outer Diameter (OD)	3.8 mm
Number of Conductors	4 Pair
Conductor Material	Stranded Copper
Conductor Gauge	28 AWG
Cable Length (m)	1.83
Cable Length (cm)	182.9
Shipping Dimensions (hwd / cm)	22.86 x 17.78 x 1.27
Shipping Weight (kg)	0.04
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Storage Humidity Range	5% to 85% RH, Non-Condensing
Bandwidth per TIA Standard	250 MHz
Maximum Bandwidth as Tested	550 MHz
Network Compatibility	1 Gbps (Gigabit)
IEEE Standards Supported	802.3ab; 802.3af; 802.3at
Snagless Connector	Yes
Product Certifications	UL Listed; cUL Listed
Product Compliance	CE (Europe); RoHS; IEEE 802.3ab 1000Base-T; IEEE 802.3af PoE; IEEE 802.3at PoE+; REACH; UKCA
Product Warranty Period (Worldwide)	Lifetime limited warranty
