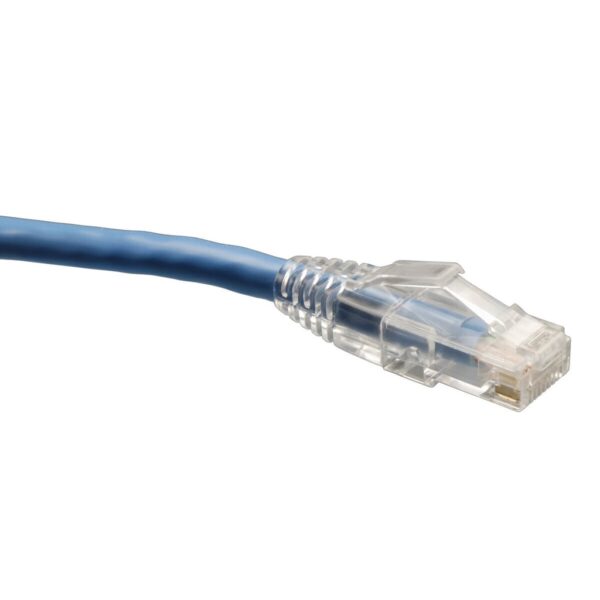

Tripp Lite series Cat6 Gigabit Solid Conductor Snagless UTP Ethernet Cable (RJ45 M/M), PoE, Blue, 25 ft. (7.62 m)

$16.35

Brand: Tripp Lite
Part Number (MPN): N202-025-BL
UPC / GTIN: 037332157331
Datasheet: PDF

Tripp Lite series Cat6 Gigabit Solid Conductor Snagless UTP Ethernet Cable (RJ45 M/M), PoE, Blue, 25 ft. (7.62 m)

Manufacturer Warehouse: 87 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Molded cables bond the RJ-45 connector and cable with a molded boot, leaving the connector’s lock exposed. They are best suited for environments with few connection/reconnection cycles, such as areas that are difficult to reach.
  • Snagless cables have a protective flap on the boot to safeguard the RJ-45 connector’s lock, making them ideal for settings where the plug is frequently unplugged.

Features

  • 25-ft. (7.62 m) Blue Cat6 Solid Conductor patch cable
  • Meets Category 6 cabling standards
  • Solid Conductor 4 Pair Cable for long distance patch runs
  • Drastically reduce impedance and structural return loss compared to Stranded Conductor patch cables
  • High-quality copper wire and a shortened body plug design
  • Snagless boots protect the locking tabs on the RJ45 connectors from being damaged during installation

Package Includes

  • N202-025-BL, 25-ft. (7.62 m) Blue Cat6 Solid Conductor Patch cable
Weight 0.7 lbs
Dimensions 0.5 × 8 × 10 in
UPC Code

037332157331

Cord Length

25

Brand

Technology

Cat6

Side A - Connector 1

RJ45 (MALE)

Side B - Connector 1

RJ45 (MALE)

Contact Plating

Gold

PoE Type

Type 2 PoE+ (30W, IEEE 802.3at)

Connector Type

Snagless

Wiring Configuration

EIA/TIA 568B

Cable Jacket Color

Blue

Cable Jacket Material

PVC

Cable Jacket Rating

CM

Cable Shielding

UTP

Cable Outer Diameter (OD)

6.0 mm

Number of Conductors

4 Pair

Conductor Material

Solid Copper

Conductor Gauge

24 AWG

Cable Length (m)

7.62

Cable Length (cm)

762

Shipping Dimensions (hwd / cm)

25.40 x 20.32 x 1.27

Shipping Weight (kg)

0.32

Operating Temperature Range

14° to 122°F (-10° to 50°C)

Storage Temperature Range

5° to 140°F (-15° to 60°C)

Operating Humidity Range

0% to 90% RH, Non-Condensing

Storage Humidity Range

0% to 90% RH, Non-Condensing

Bandwidth per TIA Standard

250 MHz

Maximum Bandwidth as Tested

500 MHz

Network Compatibility

1 Gbps (Gigabit)

IEEE Standards Supported

802.3an; 802.3at

Snagless Connector

Yes

Product Certifications

UL Listed; cUL Listed

Product Compliance

CE (Europe); RoHS; IEEE 802.3an 10GBase-T; IEEE 802.3at PoE+; REACH; UKCA

Product Warranty Period (Worldwide)

Lifetime limited warranty
