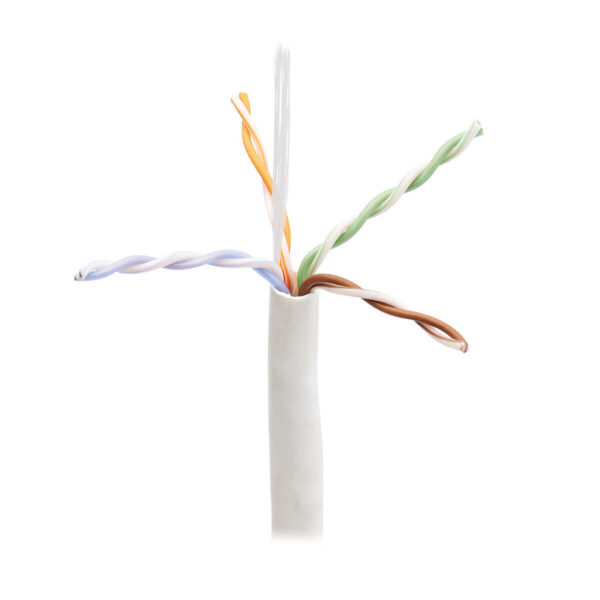

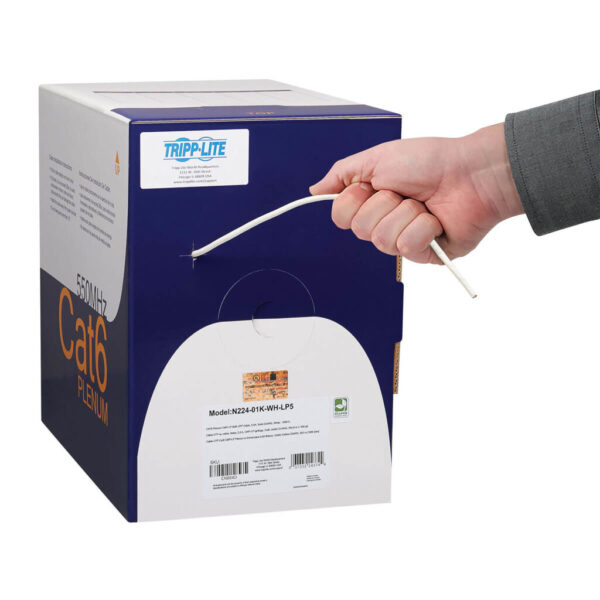

Tripp Lite series Cat6 Gigabit Solid Core UTP Bulk Ethernet Cable, CMP-LP 0.5A Plenum, 100W PoE/PoE++, White, 1000 ft. (304.8 m)
$638.12
Tripp Lite series Cat6 Gigabit Solid Core UTP Bulk Ethernet Cable, CMP-LP 0.5A Plenum, 100W PoE/PoE++, White, 1000 ft. (304.8 m)
Status: On Backorder (Contact us for lead times)
Need project pricing? Add items to your cart to request a custom project quote.
Quick Specs
- UL-listed CMP-LP (0.5A) plenum-rated jacket certified for PoE++ and high-power PoE
- Recommended for horizontal premise installations in air ducts and drop ceilings
- 23 AWG 4-pair solid copper cable rated for 550 MHz/1 Gbps Ethernet speeds

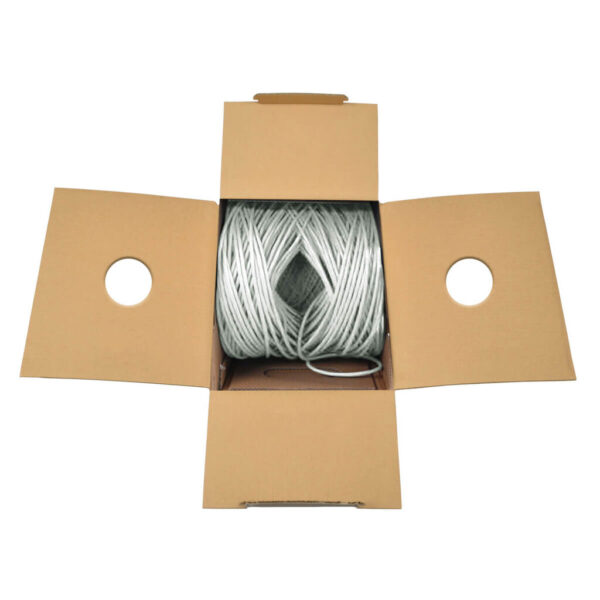

- Bulk pack of 1000 ft. cable comes in white for custom color-coded applications
Features
Premium High-Speed Cat6 Cable for Gigabit Ethernet Premise ApplicationsThis high-speed bulk cable is ideal for Cat6 premise (in-wall) applications in air ducts and drop ceilings in commercial and residential installations. This includes the distribution of data, voice, security and audio/video across Gigabit Ethernet networks. Designed for fast transmission and excellent signal quality, this 1000-foot roll of white cabling ensures peak performance through your LAN. Manufactured from 23 AWG copper wire, the N224-01K-WH-LP5 delivers speeds up to 550 MHz/1 Gbps.Designed for PoE++ and High-Power PoE ApplicationsThe plenum-rated CMP-LP jacket meets UL’s latest Limited Power (LP) standards for 0.5A cables. This ensures the cable will withstand the heat required to power devices at PoE++ (60W) or High-Power (100W) PoE power levels, no matter the bundle size or environmental conditions, such as enclosed spaces.
Package Includes
- N224-01K-WH-LP5 Cat6 Ethernet Cable – CMP-LP 0.5A Plenum, White, 1000 ft.
| Weight | 26.3 lbs |
|---|---|
| Dimensions | 14.2 × 10.1 × 14.8 in |
| UPC Code | 037332243744 |
| Cord Length | 1000.26 |
| Brand | |
| Technology | Cat6 |
| PoE Capability | 100W (802.3bt); 15.4W (802.3af); 30W (802.3at); 60W (802.3bt) |
| Side A - Connector 1 | BARE WIRE |
| Side B - Connector 1 | BARE WIRE |
| PoE Type | Type 3 PoE++/UPoE (60W, IEEE 802.3bt); Type 1 PoE (15.4W, IEEE 802.3af); Type 2 PoE+ (30W, IEEE 802.3at); Type 4 High-Power (100W, IEEE 802.3bt) |
| Connector Type | Bare Wire |
| Cable Jacket Color | White |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | CMP-LP5 |
| Cable Shielding | UTP |
| Cable Outer Diameter (OD) | 5.8 mm |
| Number of Conductors | 4 Pair |
| Conductor Material | Solid Copper |
| Conductor Gauge | 23 AWG |
| Cable Length (m) | 304.88 |
| Cable Length (cm) | 30480 |
| Operating Temperature Range | -4° to 167°F (-20° to 75°C) |
| Storage Temperature Range | 32° to 140°F (0° to 60°C) |
| Bandwidth per TIA Standard | 250 MHz |
| Maximum Bandwidth as Tested | 500 MHz |
| Network Compatibility | 1 Gbps (Gigabit) |
| IEEE Standards Supported | 802.3ab; 802.3af; 802.3at; 802.3bt |
| Product Compliance | RoHS; IEEE 802.3ab 1000Base-T; IEEE 802.3af PoE; IEEE 802.3at PoE+; IEEE 802.3bt PoE++; REACH |
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
