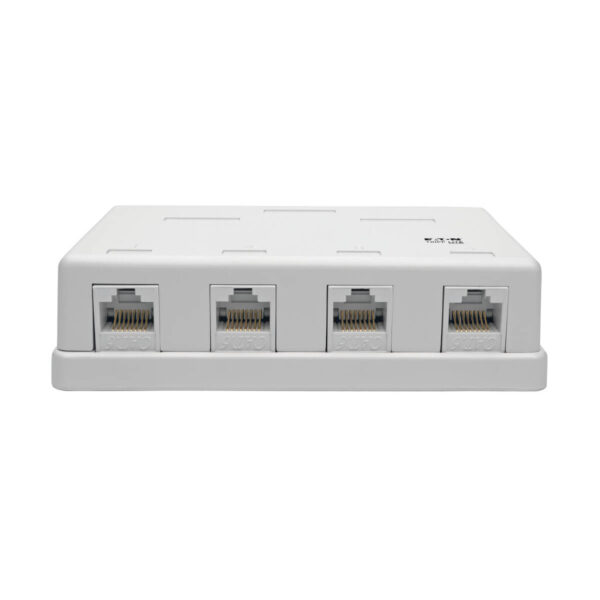

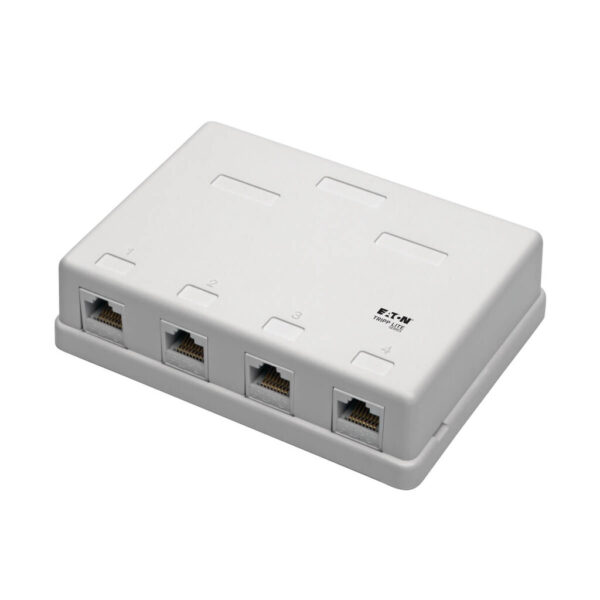

Tripp Lite series Pre-Configured Unshielded Cat6 4-Port Surface-Mount Box, 110 IDC, RJ45, White, TAA – N236-004-WH

Quick Specs

• Uses standard 110 IDC punchdown termination
• Recommended for use with 22–26 AWG Cat5e/6 cabling
• Termination blocks color-coded for T568A/B wiring compatibility
• Durable ABS UL 94V-0 flame-retardant housing designed to last
• 4 RJ45 jacks with gold-plated contacts for maximum conductivity

Overview

The N236-004-WH Pre-Configured Unshielded Cat6 4-Port Surface-Mount Box features four RJ45 female connectors as a fast, easy and cost-effective tool for expanding your Cat5e/6 audio/video, voice or Ethernet network. The ABS UL 94V-0 flame-retardant housing mounts practically anywhere, including a wall or baseboard, using the included mounting screws or double-sided adhesive tape.

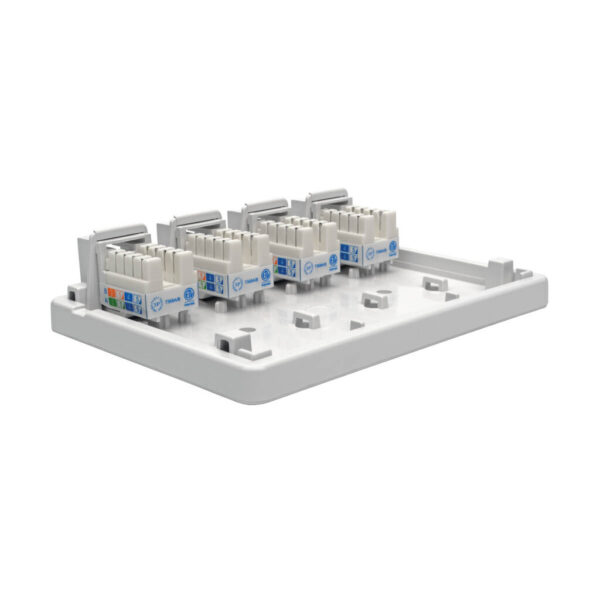

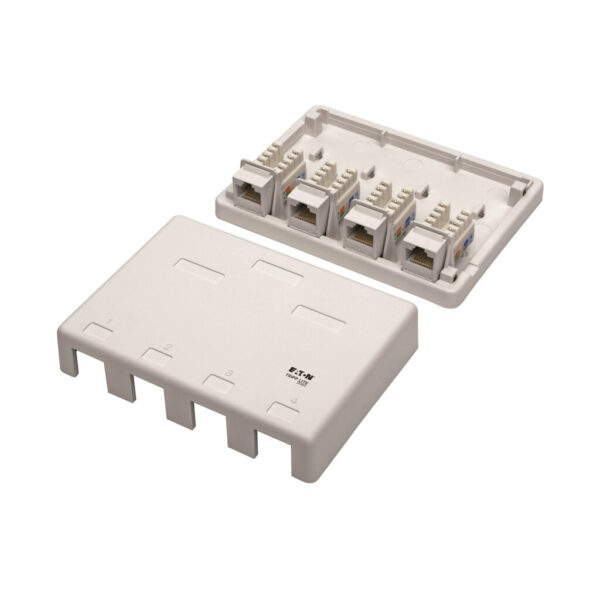

Just snap open the top cover to terminate up to four 22–26 AWG Cat5e/6 copper cables using a standard 110 IDC punchdown tool (such as N046-000). The termination blocks are color-coded for easy T568A or T568B wiring. Zip ties are included for neatly securing the cables to the Cat6 surface-mount box, which features rear routing slots to allow the box to be installed flush against a wall or ceiling.

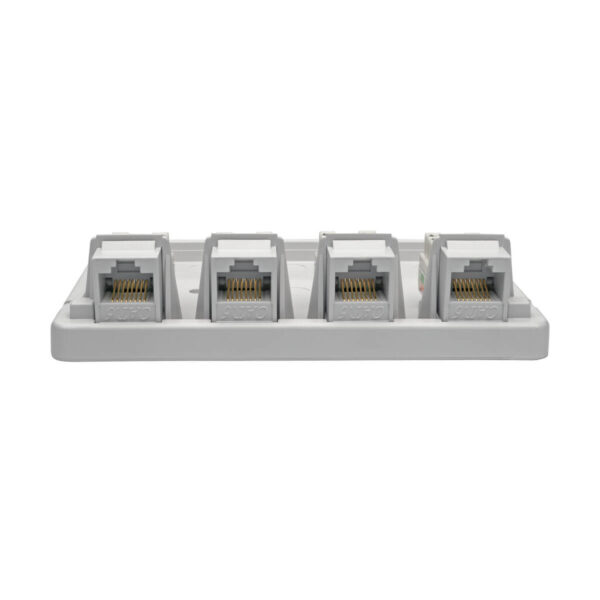

Snap the cover back on, and connect up to four Cat5e/6 cables to the pre-installed RJ45 keystone jacks with 50-micron gold-plated contacts for maximum conductivity and minimum data loss. The N236-004-WH offers great flexibility in placement, especially in applications where in-wall box and wire installation is impossible.

Features

4-Port Surface-Mount Box Completes A/V, Voice and Ethernet Applications

• Connect up to 4 Cat5e/6 cables to pre-installed RJ45 keystone jacks
• 50 μm gold-plated contacts for maximum conductivity
• Durable ABS UL 94V-0 flame-retardant housing designed to last
• Complies with ANSI/TIA/EIA 568B standards

Ideal for Applications in Which In-Wall Installation Is Impossible

• Recommended for use with 22–26 AWG Cat5e/6 cabling
• Uses standard 110 IDC punchdown termination
• Termination blocks color-coded for T568A/B wiring compatibility

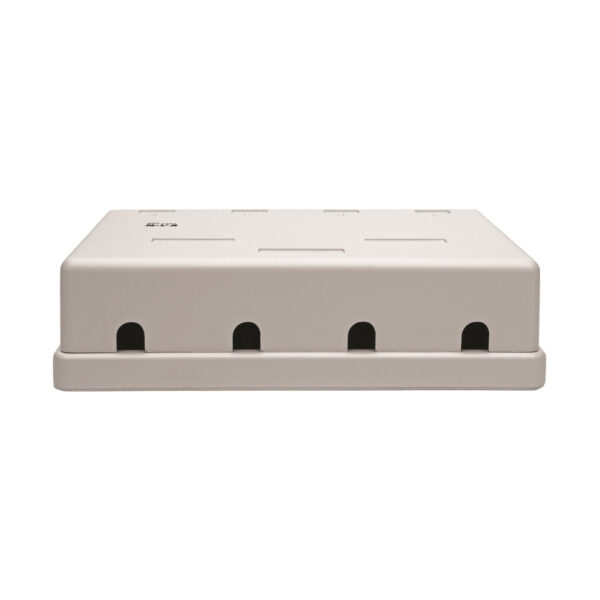

• Zip ties included for neatly securing cables through rear routing slots

Easy to Mount Almost Anywhere

• Mounting screws and double-sided tape are included

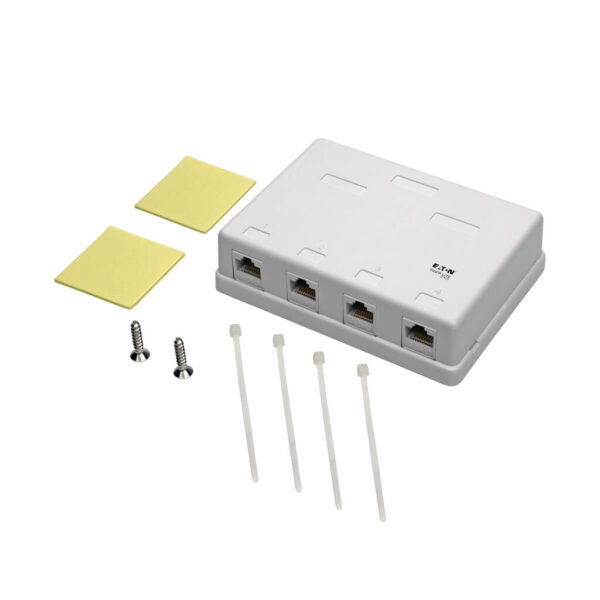

Package Includes

• N236-004-WH Pre-Configured Unshielded Cat6 4-Port Surface-Mount Box
• (2) Double-sided tape
• (4) Cable ties
• (2) Mounting screws
• Quick Start Guide
