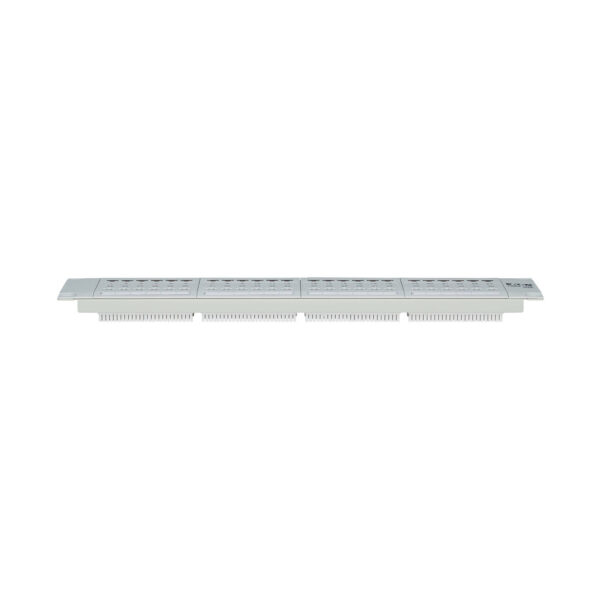

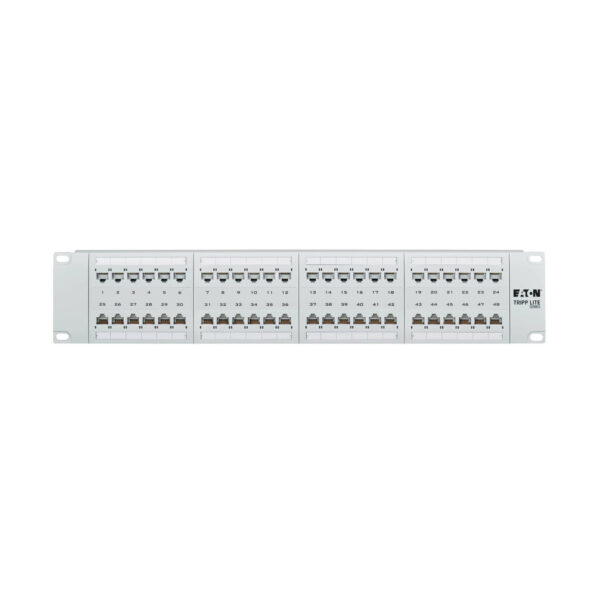

Tripp Lite series 48-Port Cat6 Patch Panel – 4PPoE Compliant, 110/Krone, 568A/B, RJ45 Ethernet, 2U Rack-Mount, White, TAA

Quick Specs

• Type 4 PoE++ patch panel prevents spark-gap erosion that can affect transmission
• 48 RJ45 and punchdown ports numbered/labeled/color-coded for immediate cable ID
• Mounts easily into 2U of space in your EIA-standard 19 in. rack for immediate use
• Krone and 110 punchdown provide flexibility for both North American and European installations
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Features

48-Port Patch Panel Manages and Organizes High-Density Cat6 Network Cabling

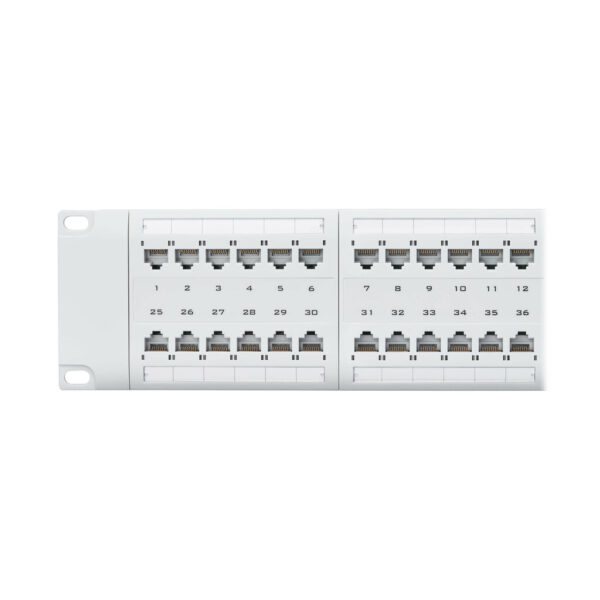

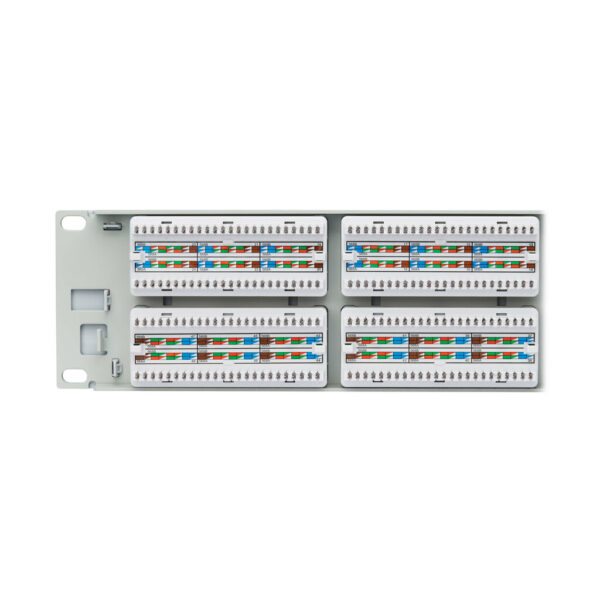

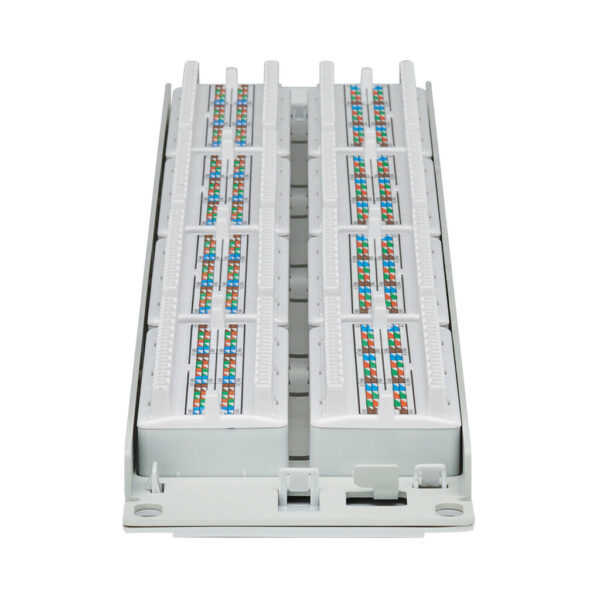

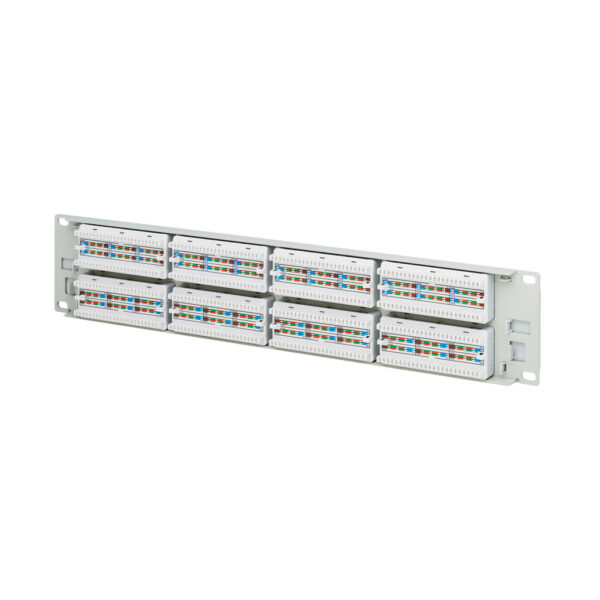

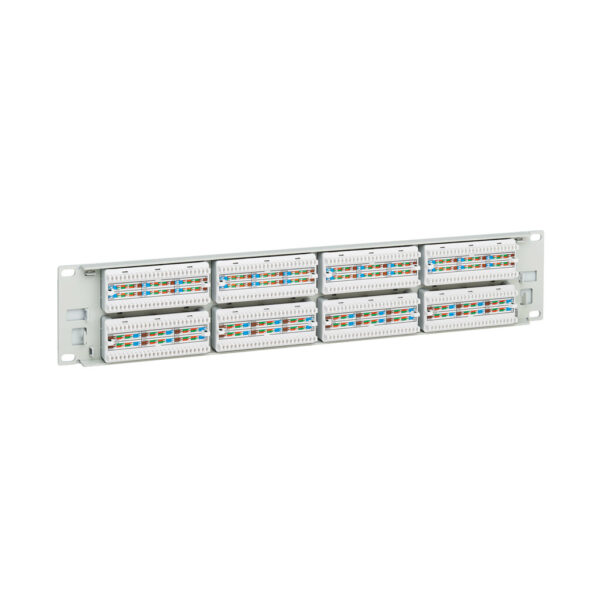

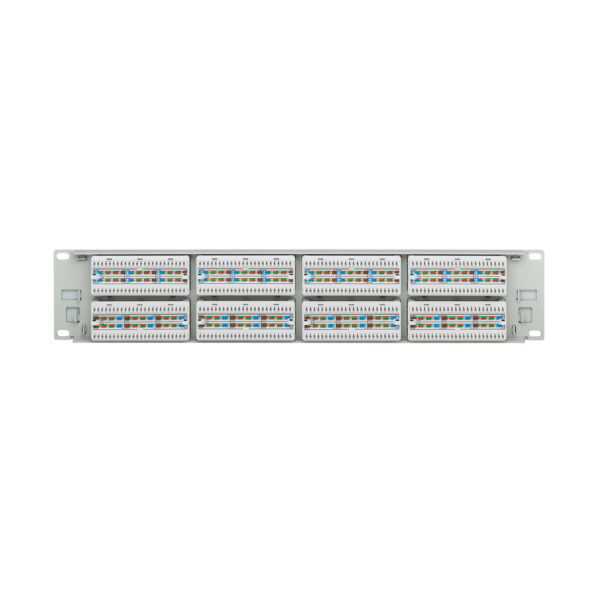

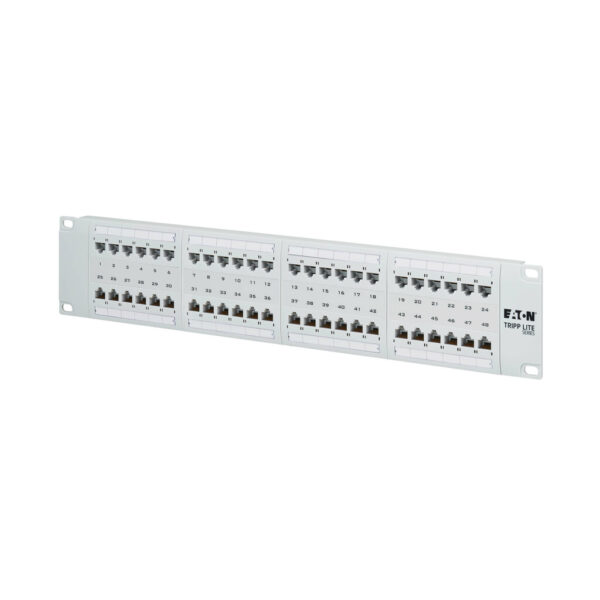

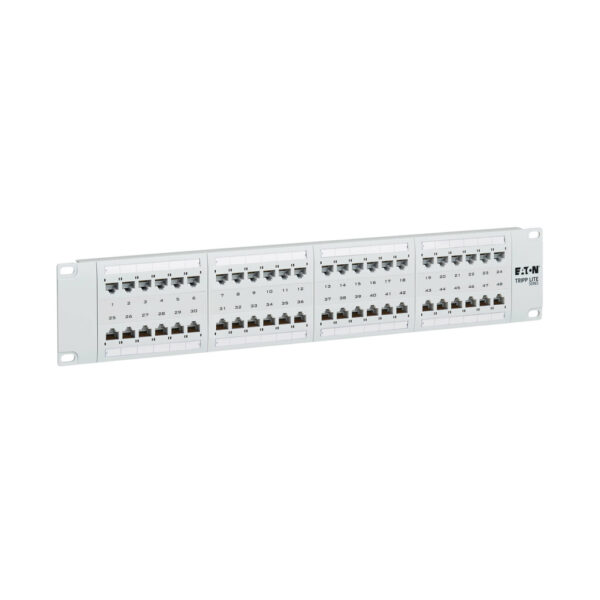

This patch panel enables quick, easy cable patching. Just plug Cat6 cables into its 48 front RJ45 ports, and use a 110 or Krone punch-down tool (do not use a 4/5 pair 110 punch-down tool) to terminate color-coded connections in the rear. Both the front and rear connectors are clearly numbered and the front ports have blank labels to help you identify individual cable runs. The N252-P48-WH supports EIA/TIA 568A and 568B wiring standards and is compatible with all network applications.

Specifically Designed for Use in Type 4 Power over Ethernet Plus (PoE++) Applications
This Power over Ethernet patch panel maximizes performance with Type 4 PoE++ (4PPoE) applications in which you can power connected devices without the need for a secondary power supply. It prevents spark-gap erosion that degrades the plug and jack contacts over time and can affect data and/or power transmission capabilities. The N252-P48-WH is designed to handle the frequent mating and unmating of surveillance cameras, VoIP phone systems, wireless access points and other PoE and PoE+ devices under electrical load.

Mounts in 2U of Space in Your 19 in. Enclosure or Open Frame Rack
The high-density patch panel supports mounting in 2U of space in EIA-standard 19-inch racks. Included cable ties and a removable cable management bracket help organize your connections, cut down on cord clutter and maintain stable performance.

TAA-Compliant for GSA Schedule Purchases
The N252-P48-WH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

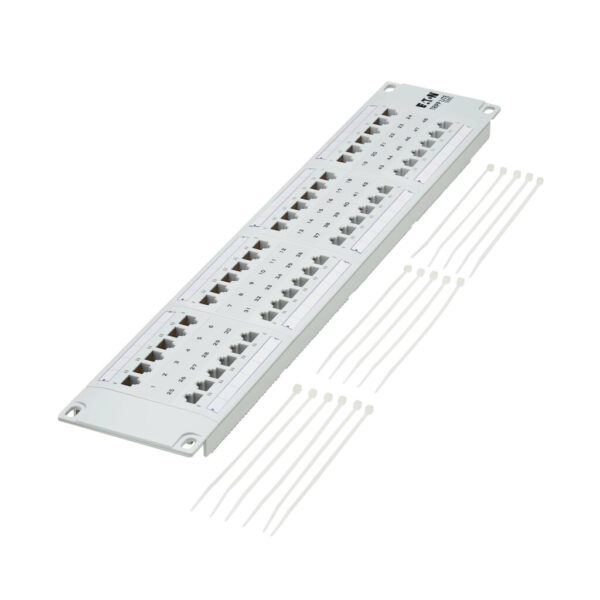

Package Includes

• N252-P48-WH 48-Port Cat6 Patch Panel
• Cable management bracket
• (16) Cable ties
• Quick Start Guide
