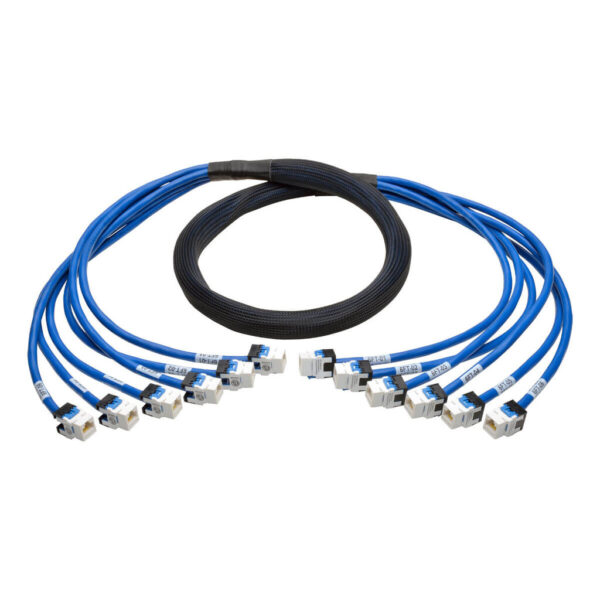

Tripp Lite series Cat6a 10G Pre-Terminated Copper Trunk Assembly (6x RJ45 F/F), Blue, 6 ft. (1.83 m) – N261-006-6FF-BL
$109.19
Tripp Lite series Cat6a 10G Pre-Terminated Copper Trunk Assembly (6x RJ45 F/F), Blue, 6 ft. (1.83 m)
Status: On Backorder (Contact us for lead times)
Need project pricing? Add items to your cart to request a custom project quote.
Quick Specs
- Molded cables bond the RJ-45 connector and cable with a molded boot, leaving the connector’s lock exposed. They are best suited for environments with few connection/reconnection cycles, such as areas that are difficult to reach.
- Snagless cables have a protective flap on the boot to safeguard the RJ-45 connector’s lock, making them ideal for settings where the plug is frequently unplugged.
Features
Combines 6 Certified Cat6a Cables in One Bundle
- 100% terminated, bundled and tested at the factory
- Ideal for data centers and other areas where quick installation and consistent network connection are important
- Designed for easy connection in switches and patch panels
- Saves time, space and labor costs
Top-of-the-Line Construction
- Unshielded female RJ45 connectors on each end
- 23 AWG solid conductor wire
- Blue CMR-rated PVC jacket
- Black mesh tubing keeps cables neat and protects against fraying and damage
- 18 in. breakout legs labeled on ends for quick ID
Fully Compliant and Compatible
- Meets or exceeds ANSI/TIA-568-C.2 category requirements for performance
- Backward compatible with Cat6 and Cat5e installations
Package Includes
- N261-006-6FF-BL Augmented Cat6/Cat6a Pre-Terminated Copper Trunk Bundle (F/F), 6 ft.
| Weight | 2.1 lbs |
|---|---|
| Dimensions | 14 × 0.5 × 17 in |
| UPC Code | 037332196477 |
| Cord Length | 6 |
| Brand | |
| Technology | Cat6a |
| Side A - Connector 1 | (6) RJ45 (FEMALE) |
| Side B - Connector 1 | (6) RJ45 (FEMALE) |
| Contact Plating | Gold |
| PoE Type | Type 1 PoE (15.4W, IEEE 802.3af); Type 2 PoE+ (30W, IEEE 802.3at) |
| Wiring Configuration | EIA/TIA 568B |
| Cable Jacket Color | Blue |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | CMR |
| Cable Shielding | UTP |
| Cable Outer Diameter (OD) | 7.8 mm |
| Number of Conductors | 4 Pair |
| Conductor Material | Solid Copper |
| Conductor Gauge | 23 AWG |
| Cable Length (m) | 1.83 |
| Cable Length (cm) | 182.9 |
| Shipping Dimensions (hwd / cm) | 43.18 x 1.27 x 35.56 |
| Shipping Weight (kg) | 0.95 |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Temperature Range | 5° to 122°F (-15° to 50°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Storage Humidity Range | 5% to 85% RH, Non-Condensing |
| Bandwidth per TIA Standard | 500 MHz |
| Maximum Bandwidth as Tested | 600 MHz |
| Network Compatibility | 10 Gbps |
| IEEE Standards Supported | 802.3ab; 802.3an; 802.3af; 802.3at |
| Product Certifications | UL Listed; cUL Listed |
| Product Compliance | CE (Europe); RoHS; IEEE 802.3ab 1000Base-T; IEEE 802.3af PoE; IEEE 802.3an 10GBase-T; IEEE 802.3at PoE+; REACH; UKCA |
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
