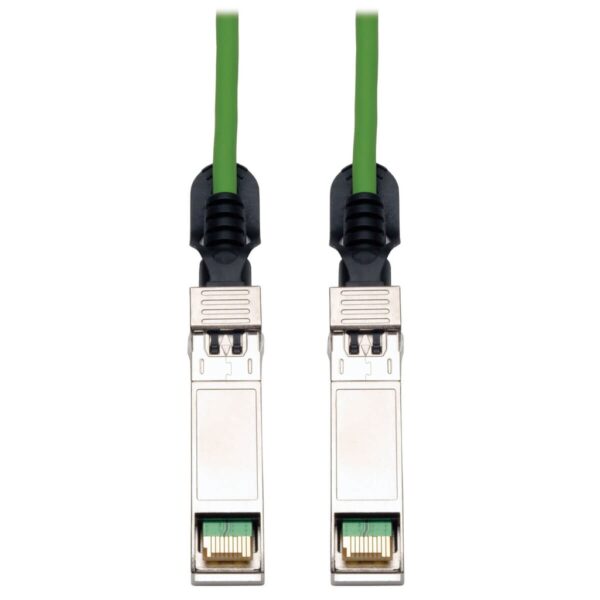

Tripp Lite series SFP+ 10Gbase-CU Passive Twinax Copper Cable, SFP-H10GB-CU1M Compatible, Green, 1M (3.28 ft.)

Name: Tripp Lite series SFP+ 10Gbase-CU Passive Twinax Copper Cable, SFP-H10GB-CU1M Compatible, Green, 1M (3.28 ft.)
Brand: Tripp Lite
SKU: N280-01M-GN
Price: 42.37 CAD
Availability: InStock

$42.37

Brand: Tripp Lite

Part Number (MPN): N280-01M-GN

UPC / GTIN: 037332178107

Datasheet: PDF

Tripp Lite series SFP+ 10Gbase-CU Passive Twinax Copper Cable, SFP-H10GB-CU1M Compatible, Green, 1M (3.28 ft.)

Manufacturer Warehouse: 74 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

1 m. (3 ft.) Green 30AWG SFP+ High Speed Passive Copper 10Gbps Cable
Fully compliant to MSA SFF-8431 specification
Equivalent to Cisco SFP-H10GB-CU1M
Low Cost alternative to Fiber Optic

Features

1 m. (3 ft.) Green 30Awg SFP+ High Speed Passive Copper 10Gbps Cable
Fully compliant to MSA SFF-8431 specification
Equivalent to Cisco SFP-H10GB-CU1M (See the Support tab on this web page for additional cross references)
Use in 10Gbps Ethernet and Fibre Channel applications
100ohm Twinaxial cable, Diecast metal shells, pull-to-release latching
Support for 1x, 2x, 4x and 8x Fiber Channel data rates
Hot-Pluggable SFP 20PIN footprint
Low power consumption

System Requirements

SFP+ Direct Attach Cable ( DAC ) Twinaxial cables conform to SFF-8431 standards, and as such can be used with the following manufacturers equipment that are open to 3rd party cables:

QLOGIC * EMULEX * JUNIPER * ARISTA * IBM * DELL * EXTREME
EMC * BROADCOM * FINISAR * VOLTAIRE * CISCO

CONFIRMED EQUIPMENT LIST ( *ensure the latest firmware and software is installed )
CISCO NEXUS *
CISCO CATALYST *
CISCO CATALYST 3750x
CISCO CATALYST 2960
CISCO CATALYST 3500
CISCO CATALYST 3550
CISCO NEXUS 5010
ARISTA 70505-64
QUANTA T3048
EXTREME X250E
JUNIPER EX3200

NOT COMPATIBLE TO 3RD PARTY CABLES: HP and BROCADE

Package Includes

1 m. (3 ft.) Green 30Awg SFP+ High Speed Passive Copper 10Gbps Cable

Weight	0.2 lbs
Dimensions	0.5 × 10.5 × 12 in
UPC Code	037332178107
Cord Length	3.31
Brand Compatibility	Arista, Cisco, Extreme, Juniper
Brand	Tripp Lite
Cable Type	Passive
Compatible Brand	Arista; Cisco; Extreme; Juniper; Quanta
Side A - Connector 1	SFP+ (MALE)
Side B - Connector 1	SFP+ (MALE)
Color	Green
Cable Jacket Color	Green
Cable Jacket Material	PVC
Cable Outer Diameter (OD)	4.2mm
Cable Length (m)	1.01
Cable Length (cm)	100.584
Minimum Bend Radius	23mm
Shipping Dimensions (hwd / cm)	30.48 x 26.67 x 1.27
Shipping Weight (kg)	0.09
Operating Temperature Range	32° to 158°F (0° to 70°C)
Storage Temperature Range	-4° to 185°F (-20° to 85°C)
Operating Humidity Range	5% to 85% RH
Storage Humidity Range	5% to 85% RH
Network Compatibility	10 Gbps
IEEE Standards Supported	802.3BA
Product Compliance	RoHS
Product Warranty Period (Worldwide)	Lifetime limited warranty
