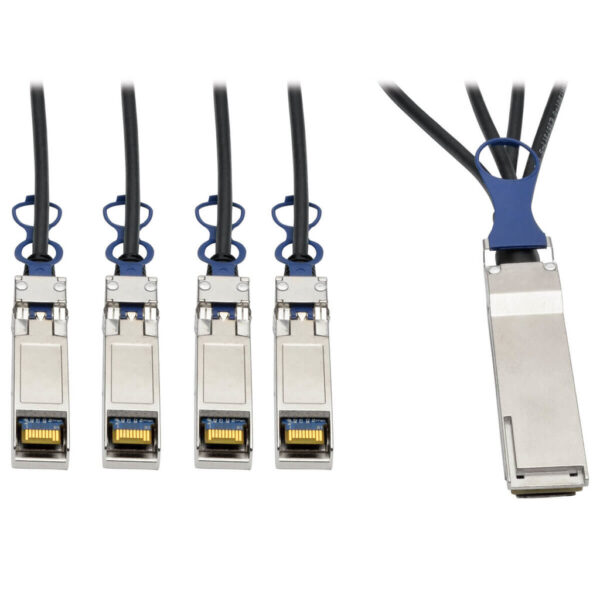

Tripp Lite series QSFP+ to 10 GbE SFP+ Passive DAC Breakout Cable (M/M), QSFP+ to (x4) SFP+, Compatible to Cisco QSFP-4SFP10G-CU1M, 1M (3.28 ft.)

Name: Tripp Lite series QSFP+ to 10 GbE SFP+ Passive DAC Breakout Cable (M/M), QSFP+ to (x4) SFP+, Compatible to Cisco QSFP-4SFP10G-CU1M, 1M (3.28 ft.)
Brand: Tripp Lite
SKU: N281-01M-BK
Price: 152.43 CAD
Availability: BackOrder

$152.43

Brand: Tripp Lite

Part Number (MPN): N281-01M-BK

UPC / GTIN: 037332193094

Datasheet: PDF

Tripp Lite series QSFP+ to 10 GbE SFP+ Passive DAC Breakout Cable (M/M), QSFP+ to (x4) SFP+, Compatible to Cisco QSFP-4SFP10G-CU1M, 1M (3.28 ft.)

Status: On Backorder (Contact us for lead times)

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Supports serial data rates up to 40 Gbps
Compatible to Cisco QSFP-4SFP10G-CU1M
Complies with MSA SFF-8431 and SFF-8436 specifications
SDR, DDR and QDR compatible
Zinc die-cast QSFP+ and SFP+ male connectors
Pull-tab ejectors for quick, easy connections

Features

Splits a 40 GbE Network System to Four 10 GbE Servers, Switches and/or Adapters

Ideal for data centers, high-end servers and enterprise wiring closets
Lower port cost and power budget when compared to fiber optics
Multi-platform support for 40GBASE-CR4, 10GBASE-CR4, 6G SAS, Fibre Channel and SONET

Top-of-the-Line Construction

Zinc die-cast male connectors for superior EMI resistance
Ergonomic pull-tab ejectors for quick, easy connections
8-pair wire technology optimized for bandwidth-intense applications
Flexible 30 AWG conductors maintain smooth high-frequency response

Fully Compliant and Compatible

Compatible with SDR, DDR and QDR
Compatible with all QSFP and QSRP+ ports
Complies with latest MSA (Multi-Source Agreement) SFF-8431 and SFF-8436 architecture
Compatible to Cisco QSFP-4SFP10G-CU1M

System Requirements

Networking switch or other hardware with open QSFP+ ports

Package Includes

N281-01M-BK 40 GbE QSFP+ to 10 GbE SFP+ Passive DAC Copper Breakout Cable (M/M), 1 m (3 ft.)

Weight	0.55 lbs
Dimensions	0.5 × 10.5 × 12 in
UPC Code	037332193094
Cord Length	3.31
Brand Compatibility	Cisco
Brand	Tripp Lite
Cable Type	Passive
Compatible Brand	Cisco
Side A - Connector 1	QSFP+ (MALE)
Side B - Connector 1	(4) SFP+ (MALE)
Color	Black
Cable Jacket Color	Black
Cable Jacket Material	PVC
Cable Outer Diameter (OD)	4.2mm
Cable Length (m)	1.01
Cable Length (cm)	100.584
Minimum Bend Radius	23mm
Shipping Dimensions (hwd / cm)	30.48 x 26.67 x 1.27
Shipping Weight (kg)	0.25
Operating Temperature Range	32° to 158°F (0° to 70°C)
Storage Temperature Range	-4° to 185°F (-20° to 85°C)
Operating Humidity Range	5% to 85% RH
Storage Humidity Range	5% to 85% RH
Network Compatibility	40 Gbps
IEEE Standards Supported	802.3BA
Breakout	Yes
Product Compliance	MSA SFF-8431; MSA SFF-8436; RoHS; REACH
Product Warranty Period (Worldwide)	Lifetime limited warranty
