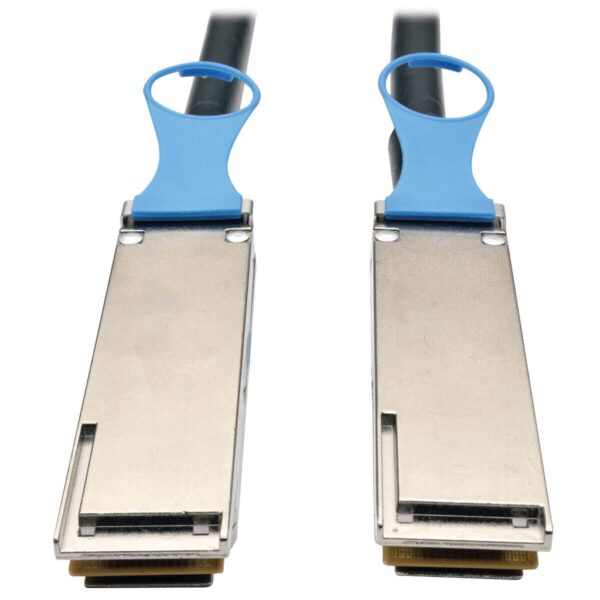

Tripp Lite series QSFP28 to QSFP28 100GbE Passive DAC Cable (M/M), QSFP-100G-CU3M Compatible, 3M (9.84 ft.)

Name: Tripp Lite series QSFP28 to QSFP28 100GbE Passive DAC Cable (M/M), QSFP-100G-CU3M Compatible, 3M (9.84 ft.)
Brand: Tripp Lite
SKU: N282-03M-28-BK
Price: 523.48 CAD
Availability: BackOrder

$523.48

Brand: Tripp Lite

Part Number (MPN): N282-03M-28-BK

UPC / GTIN: 037332193162

Datasheet: PDF

Tripp Lite series QSFP28 to QSFP28 100GbE Passive DAC Cable (M/M), QSFP-100G-CU3M Compatible, 3M (9.84 ft.)

Status: On Backorder (Contact us for lead times)

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Supports serial data rates up to 100 Gbps
Complies with MSA SFF-8665 specifications
Compatible to Cisco QSFP-100G-CU3M
Meets or exceeds 100GBASE-CR4 standards
Multi-platform support for 128G Fibre Channel and EDR InfiniBand
Pull-tab ejectors for quick, easy connections

Features

Connect Network Equipment at Speeds Up to 100 Gbps

Combines four 28 Gbps SFP channels into single high-density cable
Ideal for data centers, high-end servers and enterprise wiring closets
Multi-platform support for 128G Fibre Channel and EDR InfiniBand
Lower port cost and power budget when compared to fiber optics

Top-of-the-Line Construction

100 GbE 38-position “board-as-connector” design
Zinc die-cast male QSFP+ connectors for superior EMI resistance
Ergonomic pull-tab ejectors for quick, easy connections
8-pair wire technology optimized for bandwidth-intense applications
Flexible 26 AWG conductors maintain smooth high-frequency response

Fully Compliant and Compatible

Meets or exceeds strict 100-Gigabit Ethernet (100GBASE-CR4) standards
Complies with IEEE 802.3bj and RoHS
Complies with latest QSFP28 MSA (Multi-Source Agreement) SFF-8665 architecture
Compatible with all QSFP and QSRP+ ports
Compatible to Cisco QSFP-100G-CU3M

System Requirements

Networking switch or other hardware with open QSFP+ ports

Package Includes

N282-03M-28-BK QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable (M/M), 3 m (10 ft.)

Weight	0.86 lbs
Dimensions	0.5 × 14 × 17 in
UPC Code	037332193162
Cord Length	9.81
Brand Compatibility	Cisco
Brand	Tripp Lite
Cable Type	Passive
Compatible Brand	Cisco
Side A - Connector 1	QSFP+ (MALE)
Side B - Connector 1	QSFP+ (MALE)
Color	Black
Cable Jacket Color	Black
Cable Jacket Material	PVC
Cable Outer Diameter (OD)	9.5mm
Cable Length (m)	2.99
Cable Length (cm)	298.704
Minimum Bend Radius	50mm
Shipping Dimensions (hwd / cm)	43.18 x 35.56 x 1.27
Shipping Weight (kg)	0.39
Operating Temperature Range	32° to 158°F (0° to 70°C)
Storage Temperature Range	-4° to 185°F (-20° to 85°C)
Operating Humidity Range	5% to 85% RH
Storage Humidity Range	5% to 85% RH
Network Compatibility	100 Gbps
IEEE Standards Supported	802.3bj
Product Compliance	MSA SFF-8665; RoHS; IEEE 802.3bj; REACH
Product Warranty Period (Worldwide)	Lifetime limited warranty
