QSFP28 transceiver 100% compatible with wide range of QSFP-100G-SR4-S modules
Provides 100 Gbps throughput up to 100 m via multimode fiber cabling
12-strand MTP/MPO connector supports 100GBase-SR4 signal at 850 nm wavelength
Hot-swappable interface lets you install and uninstall without shutting down
Supports DDM for monitoring temperature and other real-time operating parameters
Features

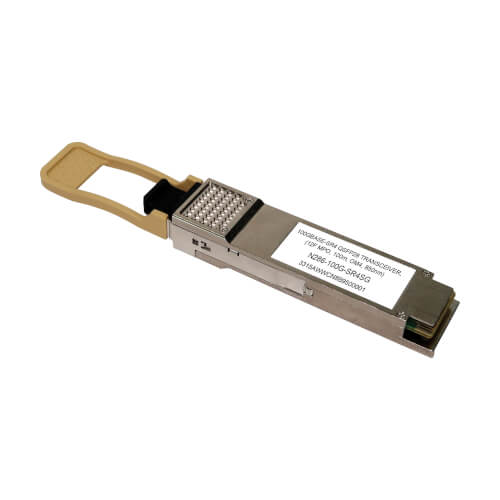

QSFP28 Transceiver for Connecting to Your Network Switch or Server This QSFP28 transceiver allows you to connect a multimode fiber optic cable to a 100 Gbps network router, server or switch. It transmits data up to 100 meters (328 feet) using an 850 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.
Functionally Equivalent to QSFP-100G-SR4-S Transceiver Modules The MSA-compliant N286-100G-SR4SG functions just like equivalent QSFP-100G-SR4-S transceiver modules and is manufactured to meet or exceed their specifications. You can use this transceiver with any compatible router, server or switch and receive the same performance as the QSFP-100G-SR4-S.
Hot-Swappable for Installation Without Network Interruption This input/output device is fully hot-swappable, so you can install it without a potentially costly 100 Gbps network shutdown or device reboot. Just plug the QSFP28 end of the transceiver into your network device. The other end has an MTP/MPO connector to link with multimode fiber optic cable (sold separately). A push/pull tab connector is easily accessible in high-density data center applications and makes the plug-and-play transceiver easy to install and remove with one hand.
Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring DDM support lets you keep track of operating information in real time, such as transceiver temperature, input and output power and supply voltage.
IN STOCK
