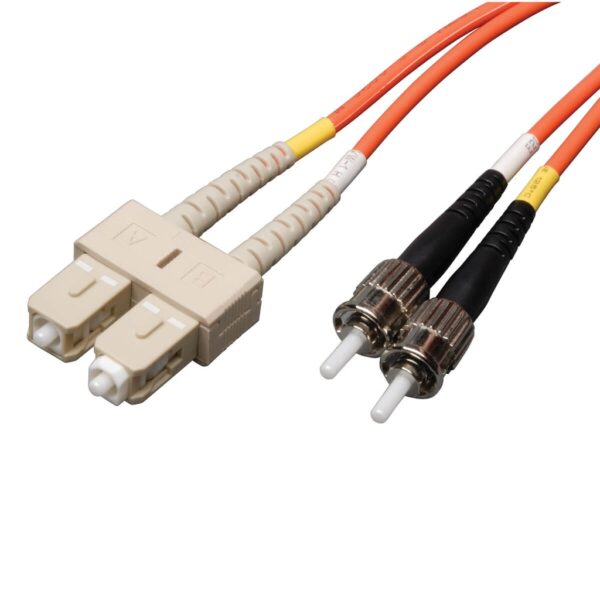

Tripp Lite series Duplex Multimode 62.5/125 Fiber Patch Cable (SC/ST), 1M (3 ft.)

Name: Tripp Lite series Duplex Multimode 62.5/125 Fiber Patch Cable (SC/ST), 1M (3 ft.)
Brand: Tripp Lite
SKU: N304-003
Price: 12.36 CAD
Availability: InStock

$12.36

Brand: Tripp Lite

Part Number (MPN): N304-003

UPC / GTIN: 037332013248

Datasheet: PDF

Tripp Lite series Duplex Multimode 62.5/125 Fiber Patch Cable (SC/ST), 1M (3 ft.)

Manufacturer Warehouse: 183 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Premium PVC 62.5/125µm multimode patch cables
Attenuation loss meets or exceeds the latest industry standards

Overview

This multimode duplex fiber optic SC/ST Ethernet cable is manufactured from 62.5/125 zipcord fiber. The cable has ST to SC connectors, a PVC jacket and is FDDI and OFNR rated. Duplex multimode fiber is most commonly used in LAN applications.

Features

Manufactured from 62.5/125 duplex (zipcord) fiber
PVC jacket
Length: 3-ft. (0.91 m) Connectors: 2 ST to 2 SC connectors
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
Fiber made from glass (not a polymer)
Color coded shrouds identify transmit and receive
Duplex multimode fiber is most commonly used in LAN applications where links are typically 10-ft. (3.05 m) or less
Fiber optic distributed data interface (FDDI) rated
OFNR (riser rated)

System Requirements

Any fiber optic hardware or NIC card requiring multimode duplex cable with SC/ST connectors

Package Includes

3-ft. (0.91 m) duplex MMF cable ST/SC 62.5/125 fiber

Weight	0.07 lbs
Dimensions	0.5 × 7 × 9 in
UPC Code	037332013248
Cord Length	2.99
Brand	Tripp Lite
Technology	Multimode
Optical Mode	OM1
Side A - Connector 1	SC DUPLEX (MALE)
Side B - Connector 1	ST DUPLEX (MALE)
Endface Polish	PC
Cable Jacket Color	Orange
Connector Color	White; Black
Cable Jacket Material	LSZH
Cable Jacket Rating	OFNR
Clad Diameter (microns)	125
Core Diameter (microns)	62.5
Number of Fibers	2
Cable Length (m)	0.91
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)
Shipping Dimensions (hwd / cm)	22.86 x 17.78 x 1.27
Shipping Weight (kg)	0.03
Fiber Cable Length	0.9M (3 ft)
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Storage Humidity Range	35% to 65% RH, Non-Condensing
Network Compatibility	1 Gbps (Gigabit); 10 Gbps
Attenuation @ 850NM	3.0 dB/km
Insertion Loss	≤ 0.20 dB
Product Compliance	RoHS; REACH
Product Warranty Period (Worldwide)	Lifetime limited warranty
