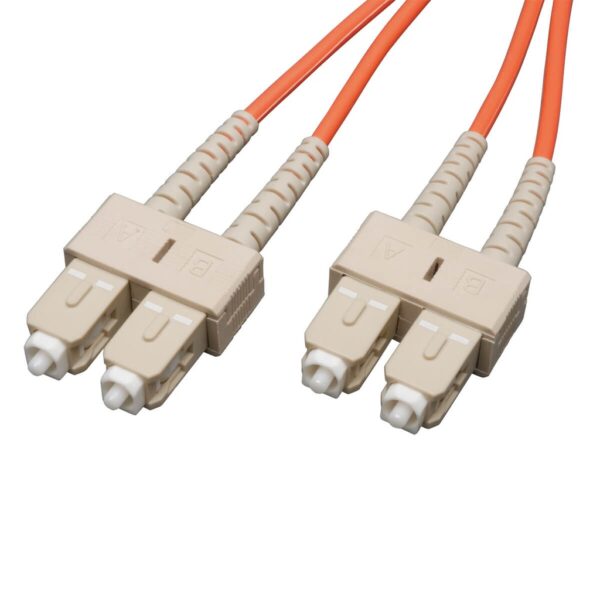

Tripp Lite series Duplex Multimode 62.5/125 Fiber Patch Cable (SC/SC), 1M (3 ft.)

Name: Tripp Lite series Duplex Multimode 62.5/125 Fiber Patch Cable (SC/SC), 1M (3 ft.)
Brand: Tripp Lite
SKU: N306-003
Price: 12.32 CAD
Availability: InStock

$12.32

Brand: Tripp Lite

Part Number (MPN): N306-003

UPC / GTIN: 037332013279

Datasheet: PDF

Tripp Lite series Duplex Multimode 62.5/125 Fiber Patch Cable (SC/SC), 1M (3 ft.)

Manufacturer Warehouse: 153 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Premium PVC 62.5/125µm multimode patch cables
Attenuation loss meets or exceeds the latest industry standards

Overview

This multimode duplex fiber optic SC/SC Ethernet cable is manufactured from 62.5/125 zipcord fiber. The cable has SC connectors on each end, a PVC jacket and is FDDI and OFNR rated. Duplex multimode fiber is most commonly used in LAN applications.

Features

Manufactured from 62.5/125 duplex (zipcord) fiber
PVC jacket
Length: 3-ft. (0.91 m) Connectors: 2 SC connectors on each end
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
Fiber made from glass (not a polymer)
Fiber optic distributed data interface (FDDI) rated
OFNR (riser rated)

System Requirements

Any fiber optic hardware or NIC card requiring multimode duplex cable with SC/SC connectors

Package Includes

3-ft. (0.91 m) duplex MMF cable SC/SC 62.5/125 fiber

Weight	0.53 lbs
Dimensions	0.5 × 7 × 9 in
UPC Code	037332013279
Cord Length	2.99
Brand	Tripp Lite
Technology	Multimode
Optical Mode	OM1
Side A - Connector 1	SC DUPLEX (MALE)
Side B - Connector 1	SC DUPLEX (MALE)
Endface Polish	PC
Cable Jacket Color	Orange
Connector Color	White
Cable Jacket Material	LSZH
Cable Jacket Rating	OFNR
Clad Diameter (microns)	125
Core Diameter (microns)	62.5
Number of Fibers	2
Cable Length (m)	0.91
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)
Shipping Dimensions (hwd / cm)	22.86 x 17.78 x 1.27
Shipping Weight (kg)	0.24
Fiber Cable Length	0.9M (3 ft)
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Storage Humidity Range	35% to 65% RH, Non-Condensing
Network Compatibility	1 Gbps (Gigabit); 10 Gbps
Attenuation @ 850NM	3.0 dB/km
Insertion Loss	≤ 0.20 dB
Product Compliance	RoHS; REACH
Product Warranty Period (Worldwide)	Lifetime limited warranty
