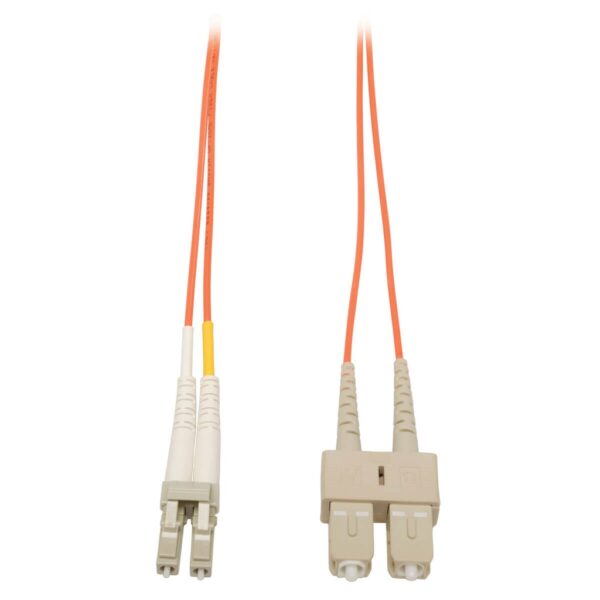

Tripp Lite series Duplex Multimode 62.5/125 Fiber Patch Cable (LC/SC), 3M (10 ft.)
$17.48
Tripp Lite series Duplex Multimode 62.5/125 Fiber Patch Cable (LC/SC), 3M (10 ft.)
Manufacturer Warehouse: 1,984 available
*Items typically ship within 3-4 weeks if stock at factory
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.
Quick Specs
- Premium PVC 62.5/125µm multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
Features
- Manufactured from 62.5/125 duplex (zipcord) fiber
- PVC jacket
- Length: 3-meter connectors: 2 SC/LC connectors on each end
- Insertion loss testing performed on every connector (0.2db typical) and provided with cable
- Beveled edge on ends of glass makes insertion of plug a breeze
- Fiber made from glass (not a polymer)
- Duplex multimode fiber is most commonly used in LAN applications where links are typically 10-ft. (3.05 m) or less
- Fiber optic distributed data interface (FDDI) rated
- OFNR (riser rated)
System Requirements
- Any fiber optic hardware or NIC card requiring multimode duplex cable with SC/LC connectors
Package Includes
- 3M Duplex MMF Cable LC/SC 62.5/125 Fiber
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 8 × 6.3 × 0.25 in |
| UPC Code | 037332097866 |
| Cord Length | 9.81 |
| Brand | |
| Technology | Multimode |
| Optical Mode | OM1 |
| Side A - Connector 1 | LC DUPLEX (MALE) |
| Side B - Connector 1 | SC DUPLEX (MALE) |
| Endface Polish | PC |
| Cable Jacket Color | Orange |
| Connector Color | White; Beige |
| Cable Jacket Material | LSZH |
| Cable Jacket Rating | OFNR |
| Clad Diameter (microns) | 125 |
| Core Diameter (microns) | 62.5 |
| Number of Fibers | 2 |
| Cable Length (m) | 2.99 |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
| Shipping Dimensions (hwd / cm) | 0.64 x 16.00 x 20.32 |
| Shipping Weight (kg) | 0.05 |
| Fiber Cable Length | 3M (9.8 ft) |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Network Compatibility | 1 Gbps (Gigabit); 10 Gbps |
| Attenuation @ 850NM | 3.0 dB/km |
| Insertion Loss | LC ≤ 0.20 dB; SC ≤ 0.20 dB |
| Product Compliance | RoHS; REACH |
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
