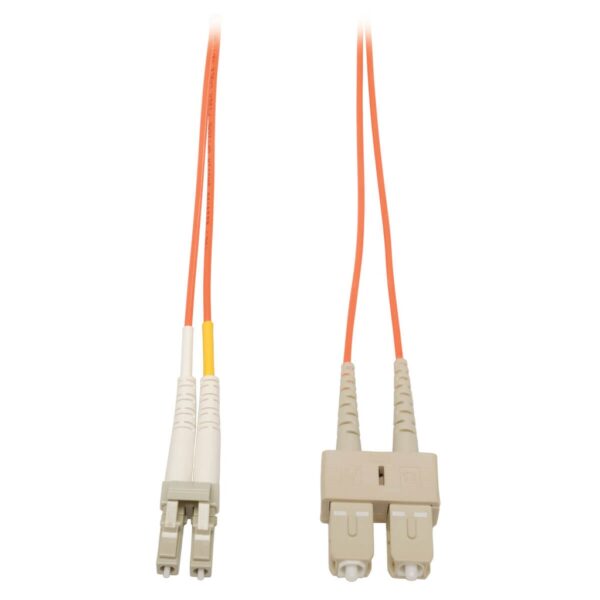

Tripp Lite series Duplex Multimode 62.5/125 Fiber Patch Cable (LC/SC), 6M (20 ft.)

Name: Tripp Lite series Duplex Multimode 62.5/125 Fiber Patch Cable (LC/SC), 6M (20 ft.)
Brand: Tripp Lite
SKU: N316-06M
Price: 19.95 CAD
Availability: InStock

$19.95

Brand: Tripp Lite

Part Number (MPN): N316-06M

UPC / GTIN: 037332123374

Datasheet: PDF

Tripp Lite series Duplex Multimode 62.5/125 Fiber Patch Cable (LC/SC), 6M (20 ft.)

Manufacturer Warehouse: 80 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Premium PVC 62.5/125µm multimode patch cables
Attenuation loss meets or exceeds the latest industry standards

Overview

This multimode duplex fiber optic LC/SC Ethernet cable is manufactured from 62.5/125 zipcord fiber. The cable has LC to SC connectors, a PVC jacket and is FDDI and OFNR rated. Duplex multimode fiber is most commonly used in LAN applications.

Features

Manufactured from 62.5/125 duplex (zipcord) fiber
PVC jacket
Length: 6-meter/Connectors: 2 LC/SC connectors
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Fiber made from glass (not a polymer)
Fiber optic distributed data interface (FDDI) rated

System Requirements

Any fiber optic hardware or NIC card requiring multimode duplex cable with SC/LC connectors

Package Includes

6-meter Duplex MMF Cable LC/SC 62.5/125 Fiber

Weight	0.2 lbs
Dimensions	6.5 × 5.6 × 0.25 in
UPC Code	037332123374
Cord Length	19.72
Brand	Tripp Lite
Technology	Multimode
Optical Mode	OM1
Side A - Connector 1	LC DUPLEX (MALE)
Side B - Connector 1	SC DUPLEX (MALE)
Endface Polish	PC
Cable Jacket Color	Orange
Connector Color	White; Beige
Cable Jacket Material	LSZH
Cable Jacket Rating	OFNR
Clad Diameter (microns)	125
Core Diameter (microns)	62.5
Number of Fibers	2
Cable Length (m)	6.01
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)
Shipping Dimensions (hwd / cm)	0.64 x 14.22 x 16.51
Shipping Weight (kg)	0.09
Fiber Cable Length	6M (19.7 ft)
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Storage Humidity Range	35% to 65% RH, Non-Condensing
Network Compatibility	1 Gbps (Gigabit); 10 Gbps
Attenuation @ 850NM	3.0 dB/km
Insertion Loss	LC ≤ 0.20 dB; SC ≤ 0.20 dB
Product Compliance	RoHS; REACH
Product Warranty Period (Worldwide)	Lifetime limited warranty
