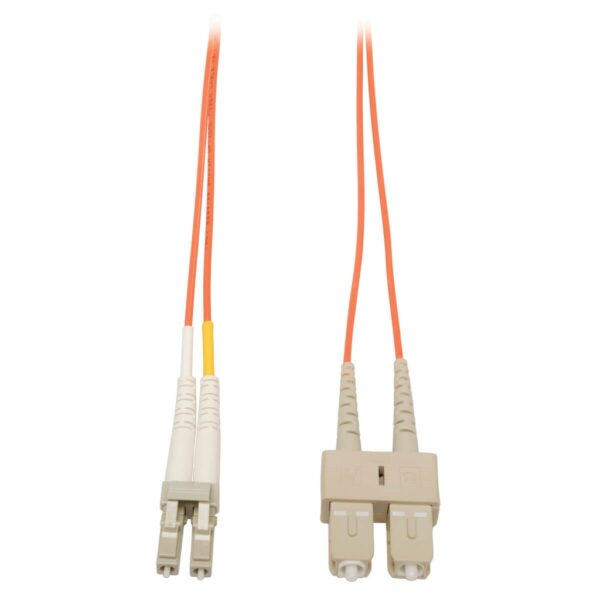

Tripp Lite series Duplex Multimode 62.5/125 Fiber Patch Cable (LC/SC), 10M (33 ft.)

Name: Tripp Lite series Duplex Multimode 62.5/125 Fiber Patch Cable (LC/SC), 10M (33 ft.)
Brand: Tripp Lite
SKU: N316-10M
Price: 24.11 CAD
Availability: InStock

$24.11

Brand: Tripp Lite

Part Number (MPN): N316-10M

UPC / GTIN: 037332122605

Datasheet: PDF

Tripp Lite series Duplex Multimode 62.5/125 Fiber Patch Cable (LC/SC), 10M (33 ft.)

Manufacturer Warehouse: 315 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Premium PVC 62.5/125µm multimode patch cables
Attenuation loss meets or exceeds the latest industry standards

Overview

This multimode duplex fiber optic SC/LC Ethernet cable is manufactured from 62.5/125 zipcord fiber. The cable has LC to SC connectors, a PVC jacket and is FDDI and OFNR rated. Duplex multimode fiber is most commonly used in LAN applications.

Features

Manufactured from 62.5/125 duplex (zipcord) fiber
PVC jacket
Length: 10M (32.8-ft.) Connectors: 2 SC/LC connectors on each end
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
Fiber made from glass (not a polymer)

System Requirements

Any fiber optic hardware or NIC card requiring multimode duplex cable with SC/LC connectors

Package Includes

10 meter ( 30-33ft ) Duplex MMF Cable LC/SC 62.5/125 Fiber

Weight	0.1294 lbs
Dimensions	0.75 × 7 × 9 in
UPC Code	037332122605
Cord Length	32.81
Brand	Tripp Lite
Technology	Multimode
Optical Mode	OM1
Side A - Connector 1	LC DUPLEX (MALE)
Side B - Connector 1	SC DUPLEX (MALE)
Endface Polish	PC
Cable Jacket Color	Orange
Connector Color	White; Beige
Cable Jacket Material	LSZH
Cable Jacket Rating	OFNR
Clad Diameter (microns)	125
Core Diameter (microns)	62.5
Number of Fibers	2
Cable Length (m)	10.00
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)
Shipping Dimensions (hwd / cm)	22.86 x 17.78 x 1.90
Shipping Weight (kg)	0.06
Fiber Cable Length	10M (32.8 ft)
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Storage Humidity Range	35% to 65% RH, Non-Condensing
Network Compatibility	1 Gbps (Gigabit); 10 Gbps
Attenuation @ 850NM	3.0 dB/km
Insertion Loss	LC ≤ 0.20 dB; SC ≤ 0.20 dB
Product Compliance	RoHS; REACH
Product Warranty Period (Worldwide)	Lifetime limited warranty
