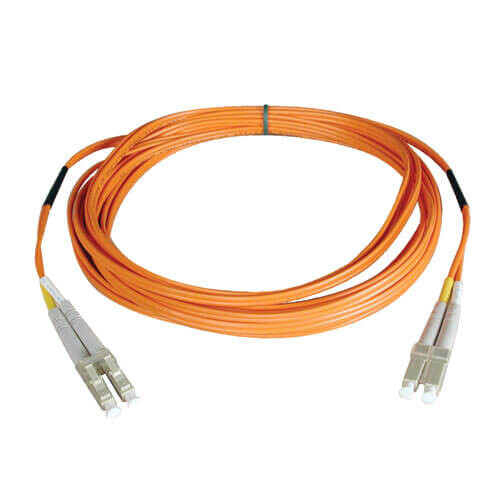

Tripp Lite series Duplex Multimode 62.5/125 Fiber Patch Cable (LC/LC), 46M (150 ft.)

Name: Tripp Lite series Duplex Multimode 62.5/125 Fiber Patch Cable (LC/LC), 46M (150 ft.)
Brand: Tripp Lite
SKU: N320-46M
Price: 72.09 CAD
Availability: InStock

$72.09

Brand: Tripp Lite

Part Number (MPN): N320-46M

UPC / GTIN: 037332134905

Datasheet: PDF

Tripp Lite series Duplex Multimode 62.5/125 Fiber Patch Cable (LC/LC), 46M (150 ft.)

Manufacturer Warehouse: 75 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Manufactured from 62.5/125 duplex (Zipcord) fiber
Insertion loss testing performed on every connector (0.2dB typical)

Overview

This multimode duplex micron fiber optic LC/LC Ethernet cable is manufactured from 62.5/125 zipcord fiber. The cable has LC connectors on each end, a PVC jacket and is FDDI and OFNR rated. Duplex multimode fiber is most commonly used in LAN applications.

Features

Manufactured from 62.5/125 duplex (zipcord) fiber
PVC jacket
Length: 46 meters ( 150ft ) Connectors: LC connector on each end
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
Fiber made from glass (not a polymer)
Fiber optic distributed data interface (FDDI) rated
OFNR (riser rated)

System Requirements

Any fiber optic hardware or NIC card requiring multimode duplex cable with LC connectors

Package Includes

46 Meter ( 150ft ) Duplex MMF Cable LC/LC 62.5/125 Micron Fiber

Weight	0.78 lbs
Dimensions	0.5 × 10.5 × 12 in
UPC Code	037332134905
Cord Length	150.95
Brand	Tripp Lite
Technology	Multimode
Optical Mode	OM1
Side A - Connector 1	LC DUPLEX (MALE)
Side B - Connector 1	LC DUPLEX (MALE)
Endface Polish	PC
Cable Jacket Color	Orange
Connector Color	Gray
Cable Jacket Material	LSZH
Cable Jacket Rating	OFNR
Clad Diameter (microns)	125
Core Diameter (microns)	62.5
Number of Fibers	2
Cable Length (m)	46.01
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)
Shipping Dimensions (hwd / cm)	30.48 x 26.67 x 1.27
Shipping Weight (kg)	0.35
Fiber Cable Length	46M (150.9 ft)
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Storage Humidity Range	35% to 65% RH, Non-Condensing
Network Compatibility	1 Gbps (Gigabit); 10 Gbps
Attenuation @ 850NM	3.0 dB/km
Insertion Loss	≤ 0.20 dB
Product Compliance	RoHS; REACH
Product Warranty Period (Worldwide)	Lifetime limited warranty
