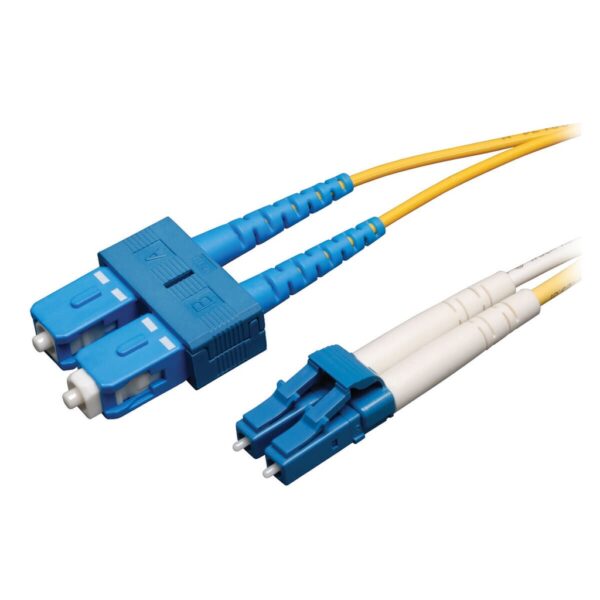

Tripp Lite series Duplex Singlemode 9/125 Fiber Patch Cable (LC/SC), 30 m (100 ft.)

Name: Tripp Lite series Duplex Singlemode 9/125 Fiber Patch Cable (LC/SC), 30 m (100 ft.)
Brand: Tripp Lite
SKU: N366-30M
Price: 37.51 CAD
Availability: InStock

$37.51

Brand: Tripp Lite

Part Number (MPN): N366-30M

UPC / GTIN: 037332156976

Datasheet: PDF

Tripp Lite series Duplex Singlemode 9/125 Fiber Patch Cable (LC/SC), 30 m (100 ft.)

Manufacturer Warehouse: 31 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Attenuation loss meets or exceeds latest industry standards
9/125 duplex (zipcord) fiber made from glass
LC and SC male connectors meet insertion loss standards
FDDI- and OFNR-rated PVC jacket
Beveled edge on glass ends for easy plug insertion

Overview

The N366-30M Duplex Singlemode 9/125 Fiber Patch Cable transmits fast, clear data signals through your LAN with a higher bandwidth than multimode cable for up to twice the throughput. Designed for network equipment that requires singlemode fiber optic patch cables, this 30-meter (100-foot) cable has attenuation loss that meets or exceeds current standards.

The N366-30M has 9/125 duplex (zipcord) fiber made from glass, instead of polymer. The sturdy LC and SC male connectors meet stringent insertion loss standards and feature beveled edges on their glass ends for easy insertion into a patch panel or switch. The FDDI- and OFNR-rated PVC jacket is yellow to easily identify it as a singlemode cable.

Features

Fast, Clear Data Transmission Through Your LAN

Twice the bandwidth throughput of multimode cable
Ideal for network equipment that requires singlemode fiber optic patch cables
Attenuation loss meets or exceeds latest industry standards

Superior Construction for Error-Free Signal Transfer

9/125 duplex (zipcord) fiber made from glass
Sturdy LC and SC male connectors meet stringent insertion loss standards
Beveled edge on glass ends for easy plug insertion
Yellow-colored for identification as singlemode

System Requirements

Fiber optic hardware or NIC card requiring singlemode duplex cable with LC/SC connectors

Package Includes

N366-30M Duplex Singlemode 9/125 Fiber Patch Cable, 30 m

Weight	0.54 lbs
Dimensions	0.5 × 12 × 10.5 in
UPC Code	037332156976
Cord Length	98.43
Brand	Tripp Lite
Technology	Singlemode
Optical Mode	OS2
Side A - Connector 1	LC DUPLEX (MALE)
Side B - Connector 1	SC DUPLEX (MALE)
Endface Polish	UPC
Polarity	A-to-B Duplex
Cable Jacket Color	Yellow
Connector Color	Blue; Blue; White
Cable Jacket Material	LSZH
Cable Jacket Rating	OFNR
Clad Diameter (microns)	125
Core Diameter (microns)	9
Number of Fibers	2
Cable Length (m)	30.00
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)
Shipping Dimensions (hwd / cm)	26.67 x 30.48 x 1.27
Shipping Weight (kg)	0.24
Fiber Cable Length	30M (98.4 ft)
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Storage Humidity Range	35% to 65% RH, Non-Condensing
Network Compatibility	1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
Attenuation @ 1310NM	0.36 dB/km
Attenuation @ 1550NM	0.22 dB/km
Insertion Loss	≤ 0.30 dB
Product Compliance	RoHS; REACH
Product Warranty Period (Worldwide)	Lifetime limited warranty
