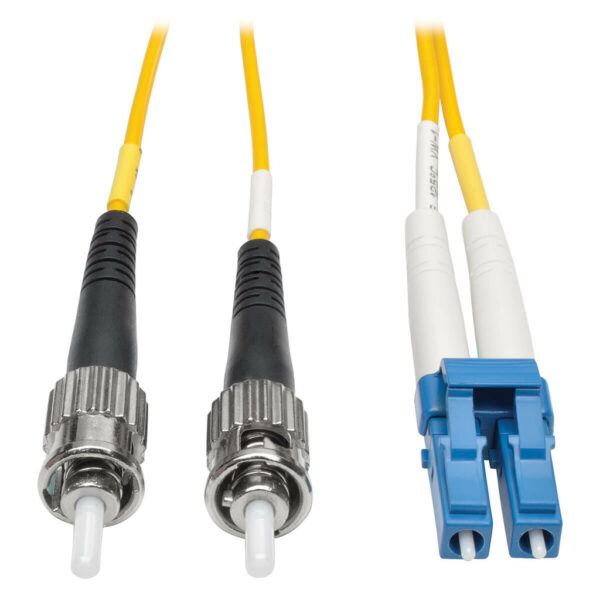

Tripp Lite series Duplex Singlemode 9/125 Fiber Plenum Rated Patch Cable (LC/ST), 5M (16 ft.)

Name: Tripp Lite series Duplex Singlemode 9/125 Fiber Plenum Rated Patch Cable (LC/ST), 5M (16 ft.)
Brand: Tripp Lite
SKU: N368-05M-P
Price: 41.47 CAD
Availability: BackOrder

$41.47

Brand: Tripp Lite

Part Number (MPN): N368-05M-P

UPC / GTIN: 037332149145

Datasheet: PDF

Tripp Lite series Duplex Singlemode 9/125 Fiber Plenum Rated Patch Cable (LC/ST), 5M (16 ft.)

Status: On Backorder (Contact us for lead times)

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Premium PLENUM rated 9/125 micron singlemode patch cables
Attenuation loss meets or exceeds the latest industry standards
Twice the bandwidth throughput of multimode cable

Overview

This plenum-rated singlemode duplex fiber optic LC/ST Ethernet cable is manufactured from 9/125 zipcord fiber. The cable has LC connectors on one end, ST connectors on the other, and is FDDI and OFNR rated. Duplex singlemode fiber is most commonly used in LAN applications. Plenum cable is used in plenum return air chambers where local fir codes dictate the use of plenum-rated cable.

Features

Manufactured from 9/125 duplex (zipcord) fiber
PLENUM Rated jacket
Length: 5M (16.4-ft.) Connectors: 2 LC and 2 ST connectors on each end
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
Fiber made from glass (not a polymer)
Fiber optic distributed data interface (FDDI) rated
OFNR (riser rated)

System Requirements

Any fiber optic hardware or NIC card requiring singlemode duplex cable with LC/SCconnectors

Package Includes

5M (16.4-ft.) Duplex Plenum Rated Singlemode Fiber Patch Cable, LC/ST

Weight	0.08 lbs
Dimensions	0.5 × 7 × 9 in
UPC Code	037332149145
Cord Length	16.4
Brand	Tripp Lite
Technology	Singlemode
Optical Mode	OS2
Side A - Connector 1	LC DUPLEX (MALE)
Side B - Connector 1	ST DUPLEX (MALE)
Endface Polish	UPC
Cable Jacket Color	Yellow
Connector Color	Black; Blue; White
Cable Jacket Material	PVC
Cable Jacket Rating	OFNR
Clad Diameter (microns)	125
Core Diameter (microns)	9
Number of Fibers	2
Cable Length (m)	5.00
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)
Shipping Dimensions (hwd / cm)	22.86 x 17.78 x 1.27
Shipping Weight (kg)	0.04
Fiber Cable Length	5M (16.4 ft)
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Storage Humidity Range	35% to 65% RH, Non-Condensing
Network Compatibility	1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
Attenuation @ 1310NM	0.36 dB/km
Attenuation @ 1550NM	0.22 dB/km
Insertion Loss	≤ 0.30 dB
Product Compliance	RoHS; REACH
Product Warranty Period (Worldwide)	Lifetime limited warranty
