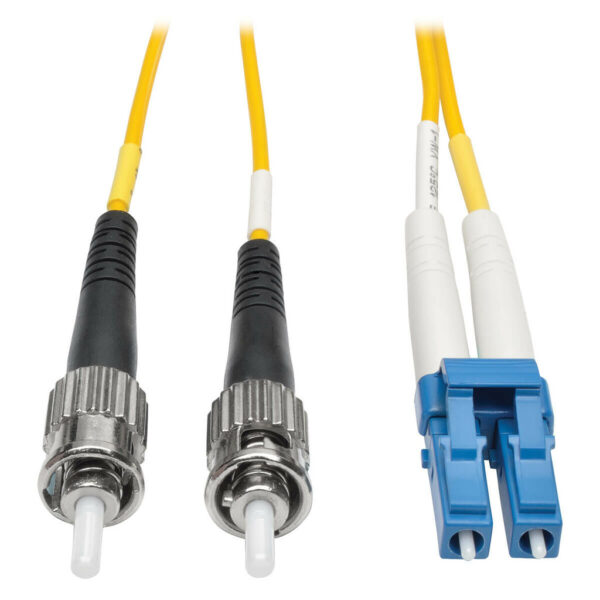

Tripp Lite series Duplex Singlemode 9/125 Fiber Patch Cable (LC/ST), 25 m (82 ft.)

Name: Tripp Lite series Duplex Singlemode 9/125 Fiber Patch Cable (LC/ST), 25 m (82 ft.)
Brand: Tripp Lite
SKU: N368-25M
Price: 39.27 CAD
Availability: InStock

$39.27

Brand: Tripp Lite

Part Number (MPN): N368-25M

UPC / GTIN: 037332138262

Datasheet: PDF

Tripp Lite series Duplex Singlemode 9/125 Fiber Patch Cable (LC/ST), 25 m (82 ft.)

Manufacturer Warehouse: 28 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Attenuation loss meets or exceeds latest industry standards
9/125 duplex (zipcord) fiber made from glass
LC and ST male connectors meet insertion loss standards
Low Smoke Zero Halogen (LSZH) jacket
Beveled edge on glass ends for easy plug insertion

Features

Fast, Clear Data Transmission Through Your LAN

Twice the bandwidth throughput of multimode cable
Ideal for network equipment that requires singlemode fiber optic patch cables
Attenuation loss meets or exceeds latest industry standards

Superior Construction for Error-Free Signal Transfer

9/125 duplex (zipcord) fiber made from glass
Sturdy LC and ST male connectors meet stringent insertion loss standards
Beveled edge on glass ends for easy plug insertion
Yellow-colored for identification as singlemode

System Requirements

Fiber optic hardware or NIC card requiring singlemode duplex cable with LC/ST connectors

Package Includes

N368-25M Duplex Singlemode 9/125 Fiber Patch Cable, 25 m

Weight	0.44 lbs
Dimensions	0.5 × 12 × 10.5 in
UPC Code	037332138262
Cord Length	82.02
Brand	Tripp Lite
Technology	Singlemode
Optical Mode	OS2
Side A - Connector 1	LC DUPLEX (MALE)
Side B - Connector 1	ST DUPLEX (MALE)
Endface Polish	UPC
Cable Jacket Color	Yellow
Connector Color	Black; Blue; White
Cable Jacket Material	LSZH
Cable Jacket Rating	OFNR
Clad Diameter (microns)	125
Core Diameter (microns)	9
Number of Fibers	2
Cable Length (m)	25.00
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)
Shipping Dimensions (hwd / cm)	26.67 x 30.48 x 1.27
Shipping Weight (kg)	0.20
Fiber Cable Length	25M (82 ft)
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Storage Humidity Range	35% to 65% RH, Non-Condensing
Network Compatibility	1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
Attenuation @ 1310NM	0.36 dB/km
Attenuation @ 1550NM	0.22 dB/km
Insertion Loss	≤ 0.30 dB
Product Compliance	RoHS; REACH
Product Warranty Period (Worldwide)	Lifetime limited warranty
