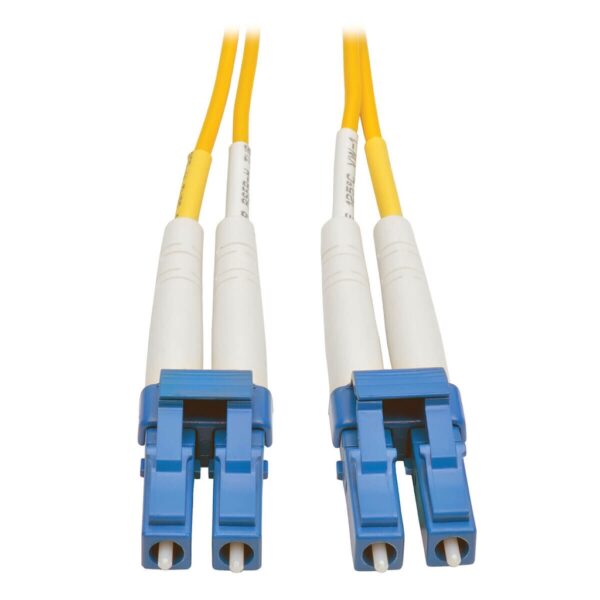

Tripp Lite series Duplex Singlemode 9/125 Fiber Patch Cable (LC/LC), 6 m (20 ft.)

Name: Tripp Lite series Duplex Singlemode 9/125 Fiber Patch Cable (LC/LC), 6 m (20 ft.)
Brand: Tripp Lite
SKU: N370-06M
Price: 25.18 CAD
Availability: InStock

$25.18

Brand: Tripp Lite

Part Number (MPN): N370-06M

UPC / GTIN: 037332195760

Datasheet: PDF

Tripp Lite series Duplex Singlemode 9/125 Fiber Patch Cable (LC/LC), 6 m (20 ft.)

Toronto Stock: 4 available

Manufacturer Warehouse: 100 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Attenuation loss meets or exceeds latest industry standards
9/125 duplex (zipcord) fiber made from glass
LC male connectors meet insertion loss standards
FDDI- and OFNR-rated
Beveled edge on glass ends for easy plug insertion

Overview

The N370-06M Duplex Singlemode 9/125 Fiber Patch Cable transmits fast, clear data signals through your LAN with data transfer speeds up to 10 Gbps. Designed for network equipment that requires singlemode fiber optic patch cables, this six-meter (20-foot) cable has attenuation loss that meets or exceeds current standards.

The FDDI-rated N370-06M has 9/125 duplex (zipcord) fiber made from glass, instead of polymer. The sturdy LC male connectors meet stringent insertion loss standards and feature beveled edges on their glass ends for easy insertion into a patch panel or switch. The OFNR-rated PVC jacket is yellow to easily identify it as a singlemode cable.

Features

Fast, Clear Data Transmission Through Your LAN

Data transfer speeds up to 10 Gbps
Ideal for network equipment that requires singlemode fiber optic patch cables
Attenuation loss meets or exceeds latest industry standards

Superior Construction for Error-Free Signal Transfer

9/125 duplex (zipcord) fiber made from glass
Sturdy LC male connectors meet stringent insertion loss standards
Beveled edge on glass ends for easy plug insertion
Yellow-colored for identification as singlemode

System Requirements

Fiber optic hardware or NIC card requiring singlemode duplex cable with LC/LC connectors

Package Includes

N370-06M Duplex Singlemode 9/125 Fiber Patch Cable, 6 m

Weight	0.12 lbs
Dimensions	0.5 × 7 × 9 in
UPC Code	037332195760
Cord Length	19.72
Brand	Tripp Lite
Technology	Singlemode
Optical Mode	OS2
Side A - Connector 1	LC DUPLEX (MALE)
Side B - Connector 1	LC DUPLEX (MALE)
Endface Polish	UPC
Cable Jacket Color	Yellow
Connector Color	Blue; White
Cable Jacket Material	LSZH
Cable Jacket Rating	OFNR
Clad Diameter (microns)	125
Core Diameter (microns)	9
Number of Fibers	2
Cable Length (m)	6.01
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)
Shipping Dimensions (hwd / cm)	22.86 x 17.78 x 1.27
Shipping Weight (kg)	0.05
Fiber Cable Length	6M (19.7 ft)
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Storage Humidity Range	35% to 65% RH, Non-Condensing
Network Compatibility	1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
Attenuation @ 1310NM	0.36 dB/km
Attenuation @ 1550NM	0.22 dB/km
Insertion Loss	≤ 0.30 dB
Product Compliance	RoHS; REACH
Product Warranty Period (Worldwide)	Lifetime limited warranty
