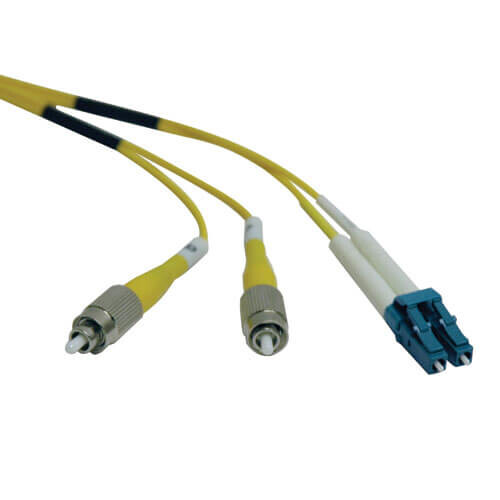

Tripp Lite series Duplex Singlemode 9/125 Fiber Patch Cable (LC/FC), 2M (6 ft.)

Tripp Lite series Duplex Singlemode 9/125 Fiber Patch Cable (LC/FC), 2M (6 ft.)

$42.27

Brand: Tripp Lite
Part Number (MPN): N378-02M
UPC / GTIN: 037332131157
Datasheet: PDF

Tripp Lite series Duplex Singlemode 9/125 Fiber Patch Cable (LC/FC), 2M (6 ft.)

Status: On Backorder (Contact us for lead times)
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Premium PVC 9/125 micron singlemode patch cables
  • Attenuation loss meets or exceeds the latest industry standards
  • Twice the bandwidth throughput of multimode cable

Features

  • Manufactured from 9/125 duplex (zipcord) fiber
  • PVC jacket
  • Length: 2-meter. Connectors: 2 LC and 2 FC connectors on each end
  • Insertion loss testing performed on every connector (0.2db typical) and provided with cable
  • Beveled edge on ends of glass makes insertion of plug a breeze
  • Fiber made from glass (not a polymer)
  • Fiber optic distributed data interface (FDDI) rated
  • OFNR (riser rated)

System Requirements

Any fiber optic hardware or NIC card requiring singlemode duplex cable with LC/SCconnectors

Package Includes

2-meter Duplex Single mode Fiber Patch Cable, LC / FC

Weight 0.042 lbs
Dimensions 0.5 × 7 × 9 in
UPC Code

037332131157
Cord Length

6.59
Brand

Technology

Singlemode
Optical Mode

OS2
Side A - Connector 1

LC DUPLEX (MALE)
Side B - Connector 1

FC DUPLEX (MALE)
Endface Polish

UPC
Cable Jacket Color

Yellow
Connector Color

Yellow; Blue; White
Cable Jacket Material

LSZH
Cable Jacket Rating

OFNR
Clad Diameter (microns)

125
Core Diameter (microns)

9
Number of Fibers

2
Cable Length (m)

2.01
Minimum Bend Radius

20 mm (Dynamic); 10 mm (Static)
Shipping Dimensions (hwd / cm)

22.86 x 17.78 x 1.27
Shipping Weight (kg)

0.02
Fiber Cable Length

2M (6.6 ft)
Operating Temperature Range

-4° to 140°F (-20° to 60°C)
Storage Temperature Range

-4° to 140°F (-20° to 60°C)
Operating Humidity Range

5% to 85% RH, Non-Condensing
Storage Humidity Range

35% to 65% RH, Non-Condensing
Network Compatibility

1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
Attenuation @ 1310NM

0.36 dB/km
Attenuation @ 1550NM

0.22 dB/km
Insertion Loss

≤ 0.30 dB
Product Compliance

RoHS; REACH
Product Warranty Period (Worldwide)

Lifetime limited warranty
