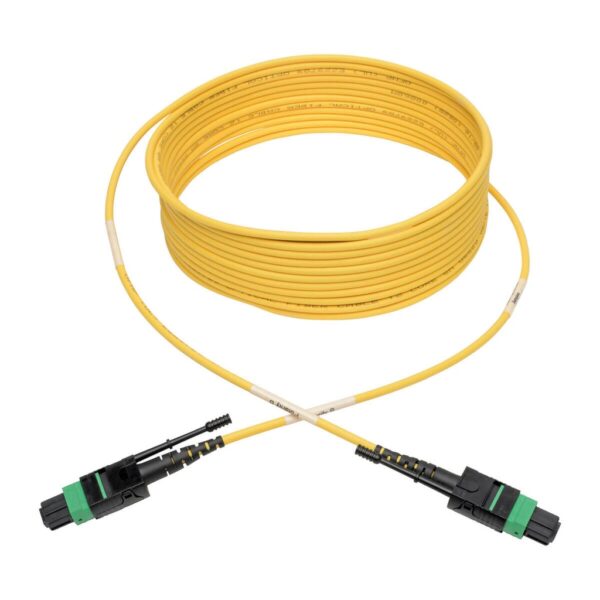

Tripp Lite series MTP/MPO (APC) Singlemode Patch Cable (F/F), 12 Fiber, 40/100 GbE, QSFP+ 40GBASE-PLR4, Plenum, Push/Pull Tab, Yellow, 5 m (16 ft.)

Name: Tripp Lite series MTP/MPO (APC) Singlemode Patch Cable (F/F), 12 Fiber, 40/100 GbE, QSFP+ 40GBASE-PLR4, Plenum, Push/Pull Tab, Yellow, 5 m (16 ft.)
Brand: Tripp Lite
SKU: N390-05M-12-AP
Price: 287.51 CAD
Availability: BackOrder

$287.51

Brand: Tripp Lite

Part Number (MPN): N390-05M-12-AP

UPC / GTIN: 037332205384

Datasheet: PDF

Tripp Lite series MTP/MPO (APC) Singlemode Patch Cable (F/F), 12 Fiber, 40/100 GbE, QSFP+ 40GBASE-PLR4, Plenum, Push/Pull Tab, Yellow, 5 m (16 ft.)

Status: On Backorder (Contact us for lead times)

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Push/pull tab connectors easily install/remove with one hand
12-fiber MTP/MPO connectors with 12x density of SC connectors
100% tested for low insertion loss and back reflection
Angled APC connectors protect laser against destabilization
Yellow color for easy singlemode identification

Features

9/125 Rated Singlemode Cable for 40/100 Gb Ethernet Applications

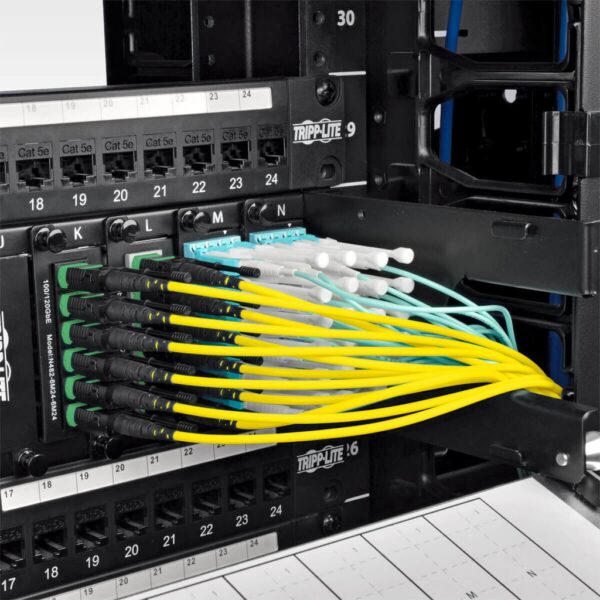

Designed for enterprise applications in wiring closets, telecom rooms and data centers
Recommended for QSFP+ applications in enterprise installations
Plenum-rated jacket suited for ceilings, walls and ducts
Yellow-colored for identification as a singlemode cable

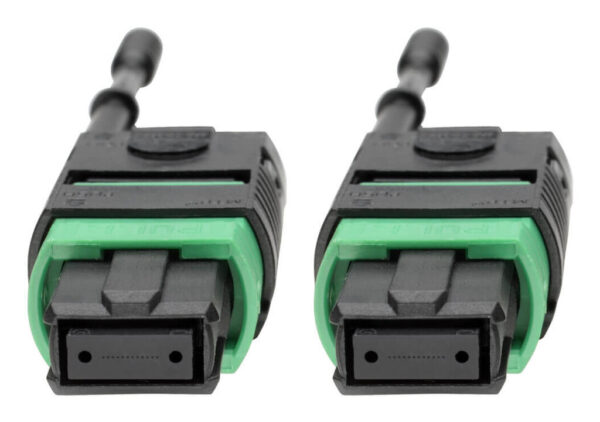

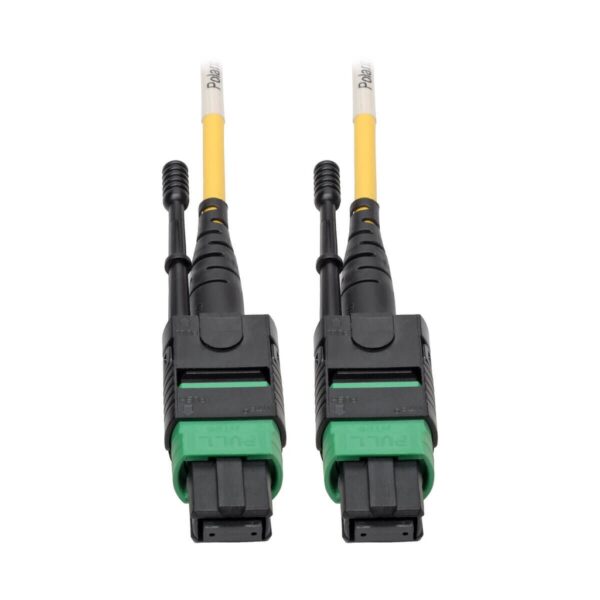

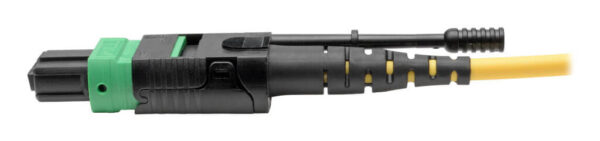

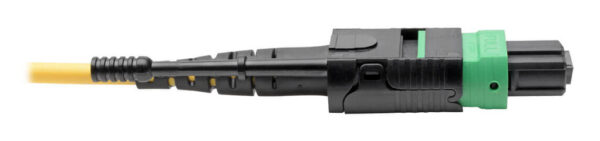

MTP/MPO APC Connectors with Push/Pull Tabs

12-fiber female connectors 12 times denser than SC connectors
APC connector angled to prevent light from reflecting back into laser
Push/pull tabs easy to install and remove with one hand
100% tested for low insertion loss and back reflection

Package Includes

N390-05M-12-AP MTP/MPO Singlemode Patch Cable (F/F), Yellow, 5 m

Weight	0.12 lbs
Dimensions	0.5 × 7 × 9 in
UPC Code	037332205384
Cord Length	16.4
Brand	Tripp Lite
Technology	Singlemode
Optical Mode	OS2
Side A - Connector 1	12F MPO (FEMALE)
Side B - Connector 1	12F MPO (FEMALE)
Endface Polish	APC
Polarity	Type B (cross)
Cable Jacket Color	Yellow
Connector Color	Green; Black
Cable Jacket Material	PVC
Cable Jacket Rating	OFNP
Clad Diameter (microns)	125
Core Diameter (microns)	9
Number of Fibers	12
Cable Length (m)	5.00
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)
Shipping Dimensions (hwd / cm)	22.86 x 17.78 x 1.27
Shipping Weight (kg)	0.05
Fiber Cable Length	5M (16.4 ft)
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Storage Humidity Range	35% to 65% RH, Non-Condensing
Network Compatibility	40 Gbps; 100 Gbps; 400 Gbps
Attenuation @ 1310NM	0.36 dB/km
Attenuation @ 1550NM	0.22 dB/km
Insertion Loss	≤ 0.70 dB
Push/Pull Tabs	Yes
Product Compliance	RoHS; REACH
Product Warranty Period (Worldwide)	Lifetime limited warranty
