Tripp Lite series 40Gb to 10Gb Breakout Cassette – (x2) 12-Fiber OM4 MTP/MPO ( Male with Pins ) to (x12) LC

Quick Specs

• High Density Fiber Cassette for use with N482-01U and N482-02U High Density Fiber Enclosure Panels
• 40Gb to 10Gb Breakout Cassette, with (x12) LC connections to Normal 0 false false false EN-US X-NONE X-NONE MicrosoftInternetExplorer4
• 12-Fiber MTP ports are Polarity B, Optimized for Parallel Optics, Base-8 Connectivity
• Guaranteed compatibility when used with recommended cabling
• Cassette designed specifically for use with cables, such as the N820-, N821-, N844- and N845-Series cables
• Internal OM4 wiring
• Factory terminated connectors reduce the time and labor required of field connector terminations
• Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements
• Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB

Overview

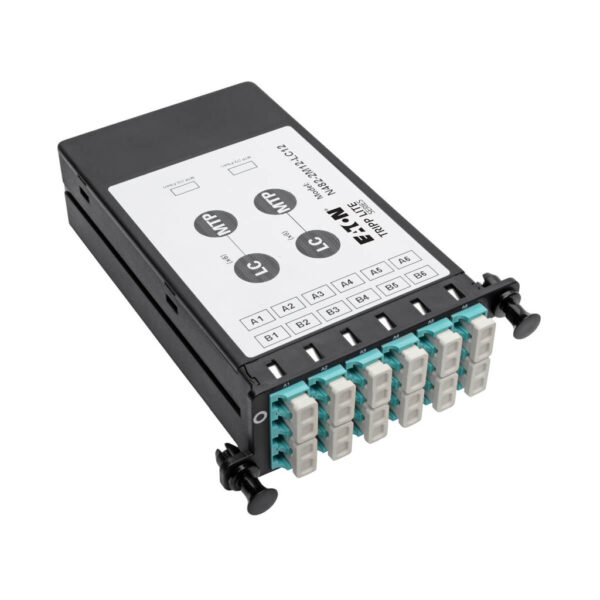

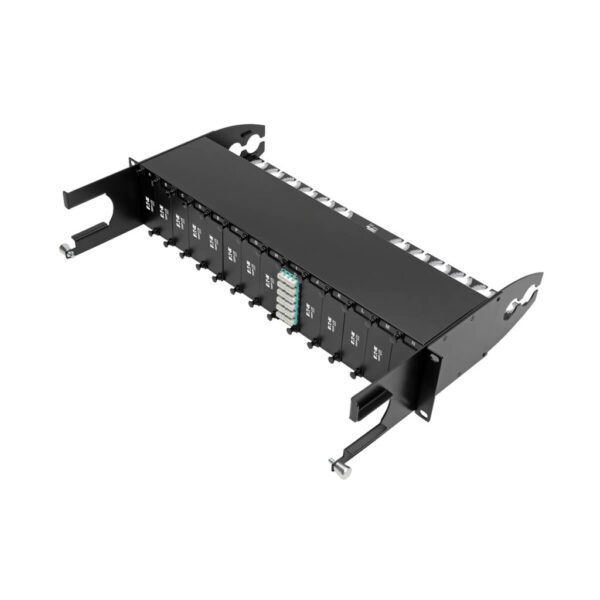

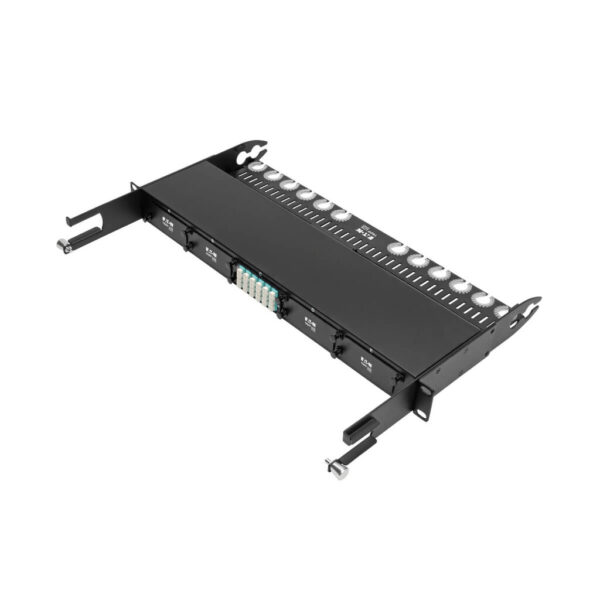

The N482-2M12-LC12 is a high-density 40 Gb to 10 Gb Breakout Cassette with (x12) LC connections to (x2) 12-Fiber, OM4, MTP/MPO connections. For use with N482-01U and N482-02U high-density Fiber Enclosure Panels. Up to five cassettes per N482-01U or up to 14 cassettes per N482-02U. 12-Fiber MTP ports are Polarity B, Optimized for Parallel Optics, Base-8 Connectivity. Guaranteed compatibility when used with recommended cabling, such as the N820-, N821-, N844- and N845-Series cables. Installation is simple, with the cassette being easily installed or removed using push/pull tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Complies with IEEE 802.3ae (10Gbe) and ANSI T11.2 (Fibre Channel) requirements, with a maximum insertion loss of 0.35dB falling well under the IEEE 802.3ae maximum channel loss spec of <25dB. Constructed of heavy-duty steel housing.

Features

• High Density Fiber Cassette for use with N482-01U and N482-02U High Density Fiber Enclosure Panels

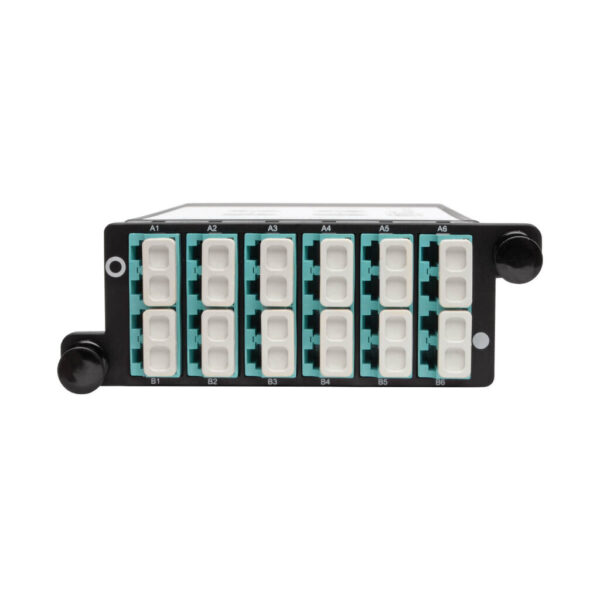

• 40 Gb to 10 Gb Breakout Cassette, with (x12) LC connections to (x2) 12-Fiber OM4 MTP/MPO connections

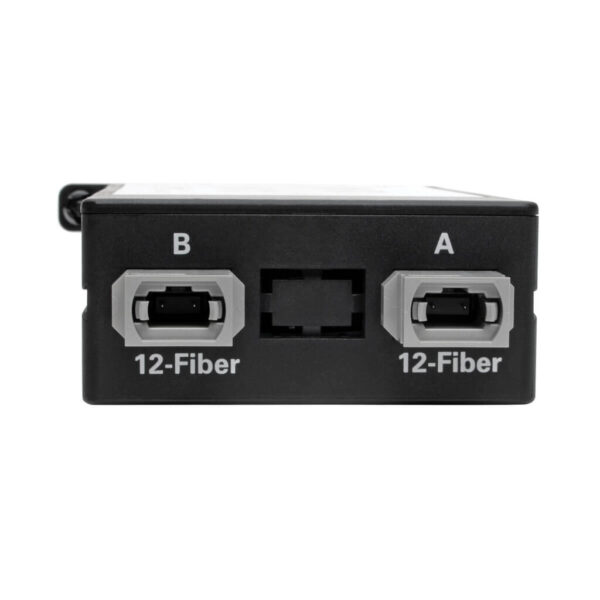

• 12-Fiber MTP ports are Polarity B, Optimized for Parallel Optics, Base-8 Connectivity
• Guaranteed compatibility when used with recommended cabling
• Cassette designed specifically for use with cables, such as the N820-, N821-, N844- and N845-Series cables

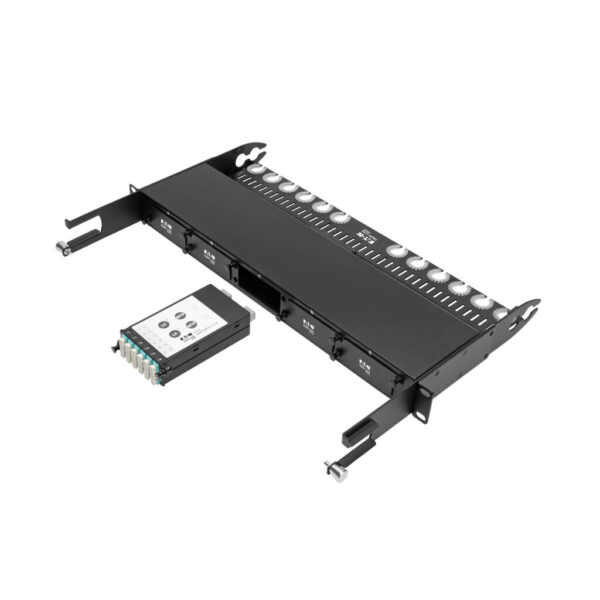

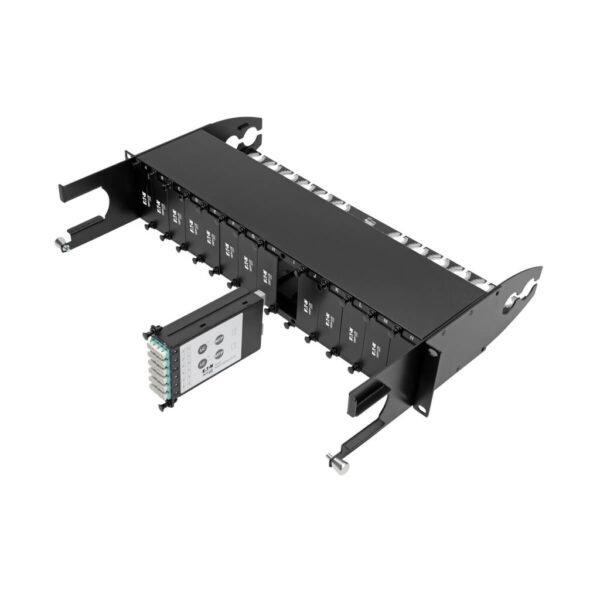

• Installation is simple, with the cassette being easily installed or removed using push / pull tabs to lock or unlock it from the panel; no tools required.
• Factory terminated connectors reduce the time and labor required of field connector terminations
• Complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements
• Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB
• Constructed of heavy-duty steel housing

System Requirements

• 12-Fiber MTP Ports are Polarity B, Optimized for Parallel Optics, Base-8 Connectivity
• Guaranteed compatibility when used with recommended cabling
• Cassette designed specifically for use with N820-, N821-, N844- and N845-Series cables

Package Includes

• N482-2M12-LC12 40Gb to 10Gb Breakout Cassette – (x2) 12-Fiber OM4 MTP/MPO to (x12) LC
• Quick Start Guide
