Tripp Lite series 10GbE Pass-Through Cassette – (x12) LC Duplex

Quick Specs

• High Density Fiber Cassette for use with the N484-00U and N484-01U chassis’
• 10GbE Pass-Through Cassette, with (x12) LC Duplex connections
• Guaranteed compatibility when used with recommended cabling
• Compatible with both singlemode and multimode fiber cables.
• Designed specifically for use with cables, such as the N820- and N821-Series cables
• Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements

Overview

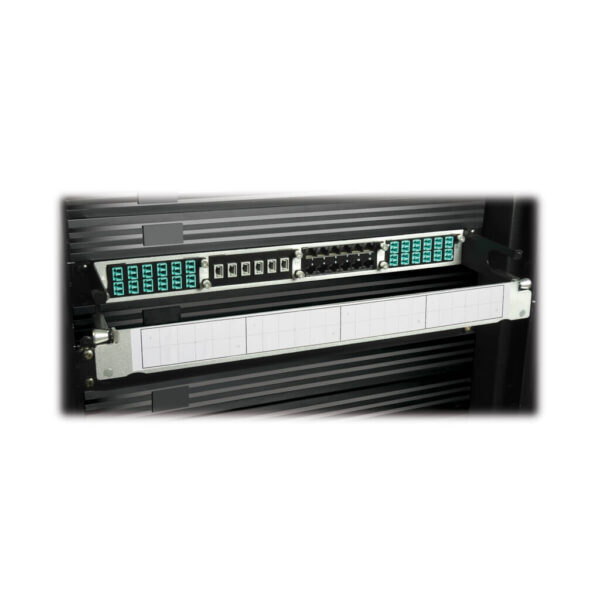

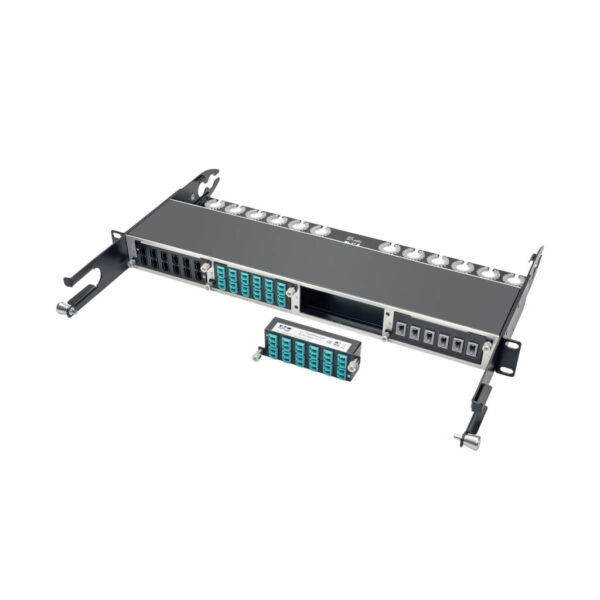

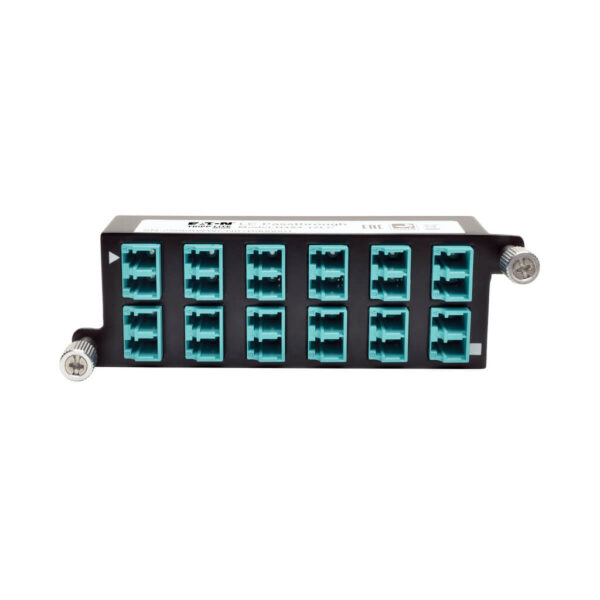

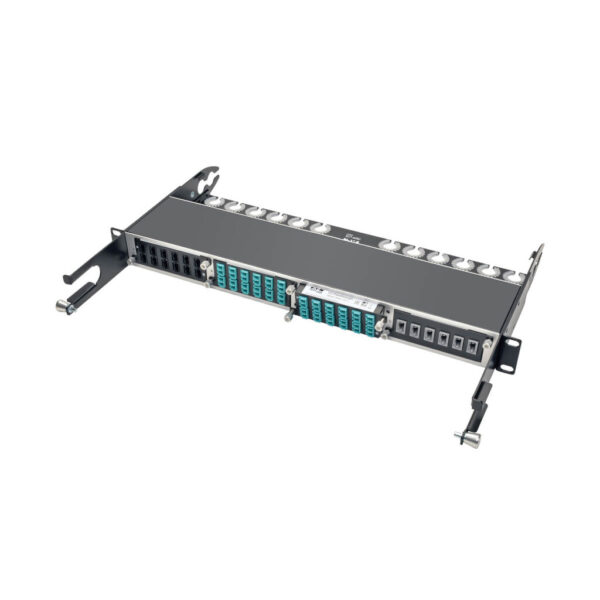

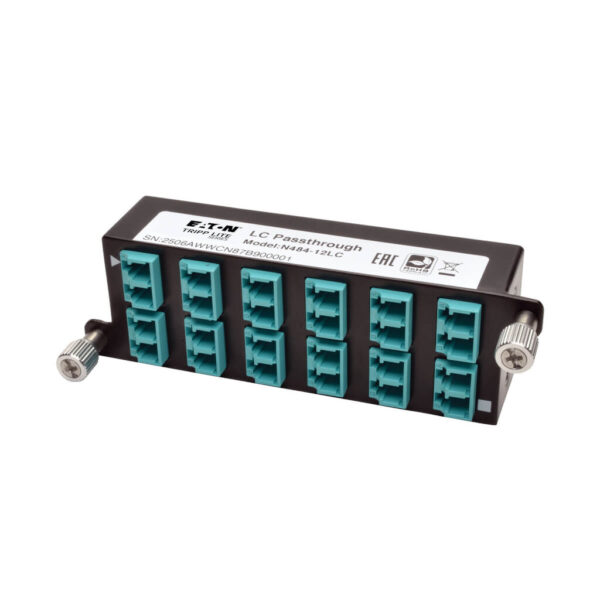

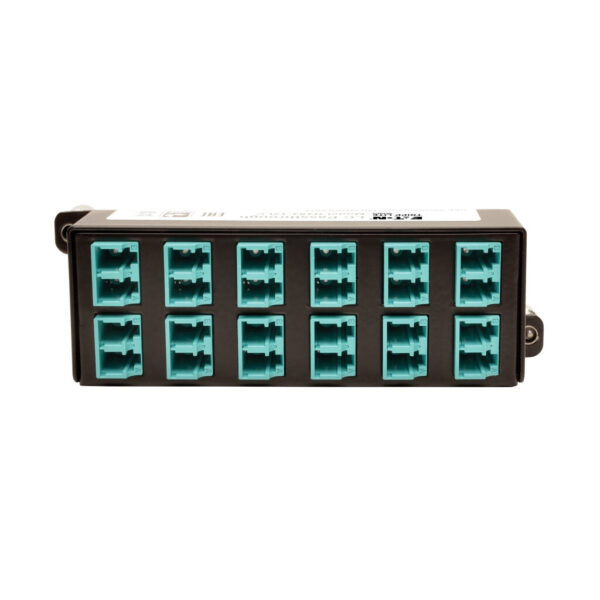

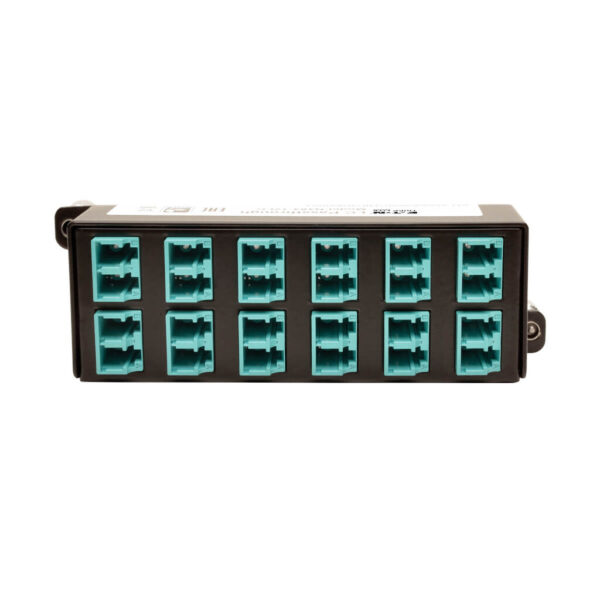

The N484-12LC is a high-density 10 Gb Pass-through Cassette with (x12) LC Duplex connections. Designed specifically for use with N484-00U and N484-01U chassis. Up to four cassettes per N484-01U or one cassette per N484-00U. Each duplex LC connection is rated for 10 GbE, with an extremely low max insertion loss of 0.35db, well under the IEEE 802.3ae maximum channel loss spec of <25db. Guaranteed compatibility when used with recommended cabling. Compatible with both singlemode and multimode fiber cables. Designed specifically for use with N820- and N821-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing is manufactured with heavy-duty 1.0mm cold-rolled steel.

Features

• High Density Fiber Cassette for use with the N484-00U and N484-01U chassis’
• 10 GbE Pass-Through Cassette, with (x12) LC Duplex connections
• Complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements
• Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB
• Guaranteed compatibility when used with recommended cabling
• Compatible with both singlemode and multimode fiber cables.
• Designed specifically for use with cables, such as the N820- and N821-Series cables
• Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required
• Each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations.
• Housing made of heavy duty, 1.0mm Cold Rolled Steel
• Includes dust caps for unused ports

System Requirements

• Guaranteed compatibility when used with recommended cabling
• Compatible with both singlemode and multimode fiber cables
• Designed specifically for use with N820- and N821-Series cables

Package Includes

• N484-12LC 10Gb Pass-Through Cassette – (x12) LC Duplex
• Quick Start Guide
