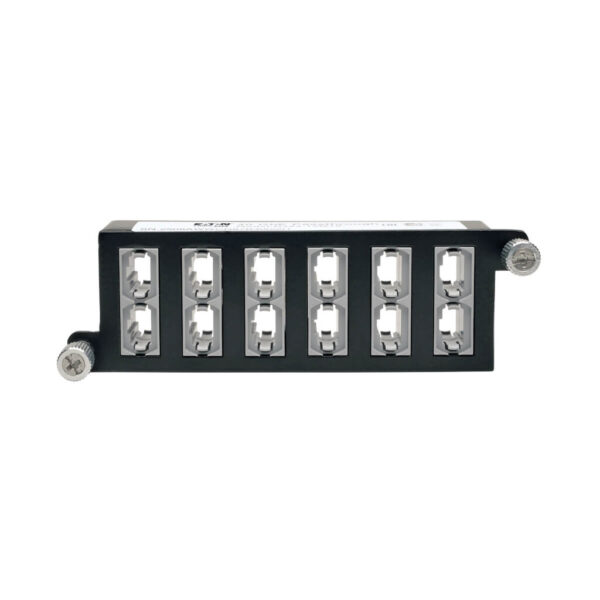

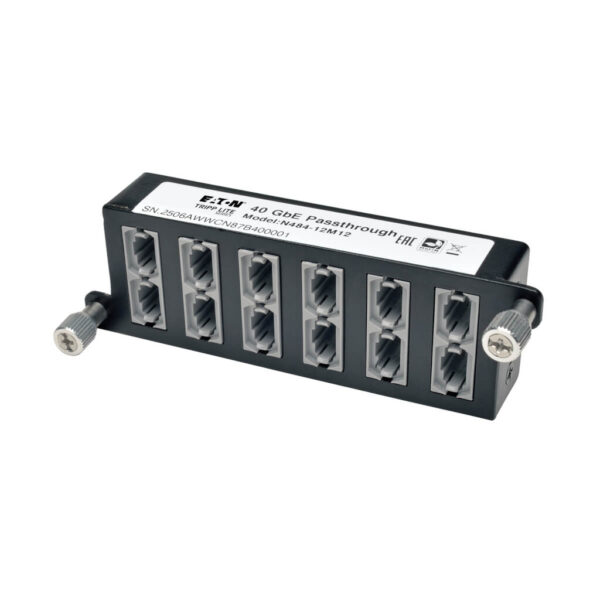

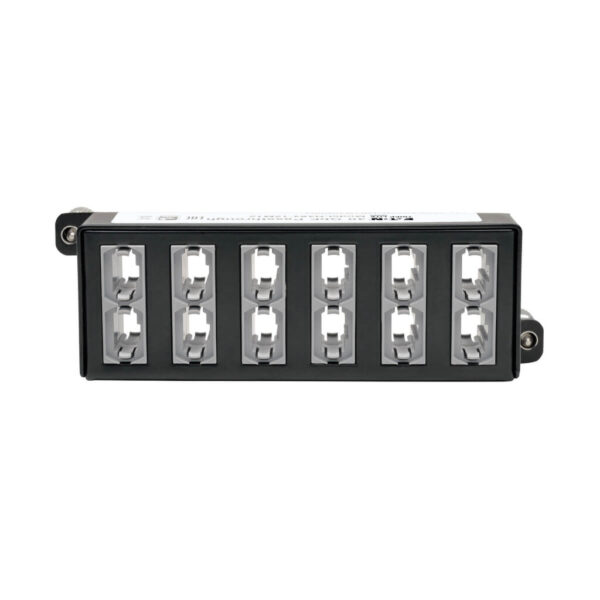

Tripp Lite series 40Gb Pass-Through Cassette – (x12) 12-Fiber MTP/MPO ( Female )

Quick Specs

• High Density Fiber Cassette for use with N484-00U and N484-01U chassis’
• 40Gb Pass-through Cassette, with (x12) 12-Fiber MTP/MPO connections ( Female )
• Guaranteed compatibility when used with recommended cabling
• Designed specifically for use with cables, such as the N842-, N844- and N845-Series cables
• Factory terminated connectors reduce the time and labor required of field connector terminations

Overview

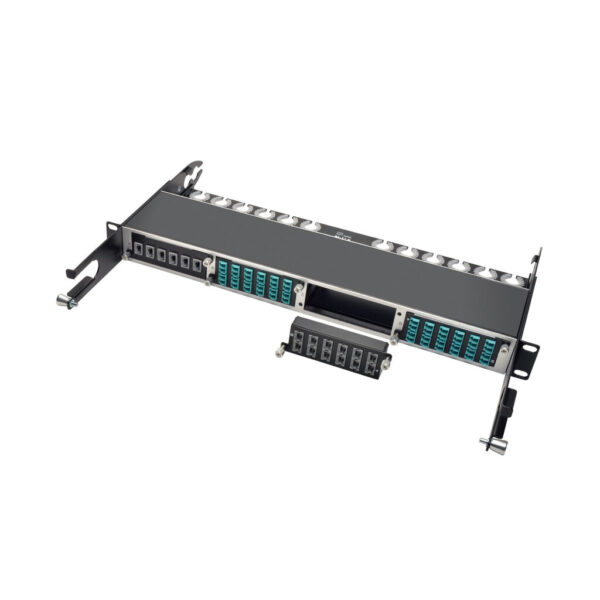

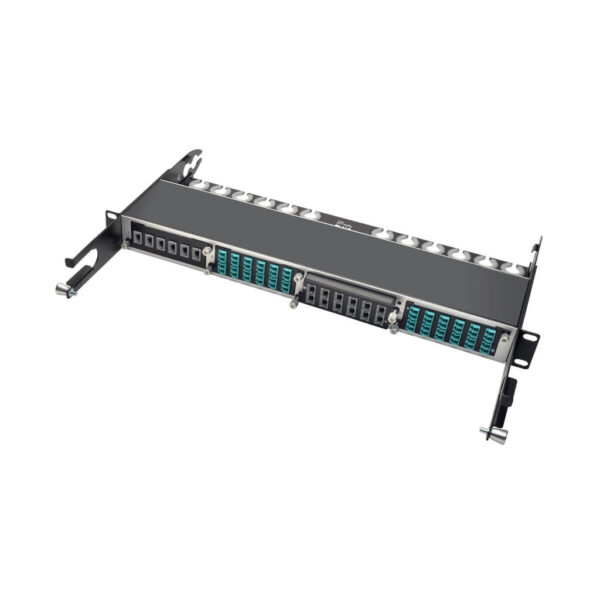

The N484-12M12 is a high-density 40 Gb pass-through cassette, with (x12) 12-Fiber MTP/MPO connections. Designed specifically for use with N484-00U and N484-01U chassis. Up to four cassettes per N484-01U or one cassette per N484-00U. Each MTP/MPO connector is rated for up to 40 GbE, with an extremely low insertion loss of 0.35db, well under the IEEE 802.3ae maximum channel loss spec of <25db. Guaranteed compatibility when used with recommended cabling. Designed specifically for use with N842-, N844- and N845-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy-duty 1.0mm cold-rolled steel.

Features

• High Density Fiber Cassette for use with N484-00U and N484-01U chassis’
• 40 Gb Pass-through Cassette, with (x12) 12-Fiber MTP/MPO connections
• Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB
• Guaranteed compatibility when used with recommended cabling
• Designed specifically for use with cables, such as the N842-, N844- and N845-Series cables
• Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required
• Factory terminated connectors reduce the time and labor required of field connector terminations
• Housing made of heavy duty, 1.0mm Cold Rolled Steel
• Includes dust caps for unused ports

System Requirements

• Guaranteed compatibility when used with recommended cabling
• Designed specifically for use with N842-, N844- and N845-Series cables

Package Includes

• N484-12M12 40GbE Pass-Through Cassette – (x12) 12-Fiber MTP/MPO ( Female )
• Quick Start Guide
