Tripp Lite series 100Gb/120Gb to 40Gb Breakout Cassette, (x2) 24-Fiber MTP/MPO (Male with Pins) to (x6) 12-Fiber MTP/MPO (Male with Pins)

Quick Specs

• High Density Fiber Cassette for use with N484-00U and N484-01U chassis’
• 100/120Gb to 40Gb Breakout Cassette, with (x2) 24-Fiber MTP/MPO ( Male w/Pins ) connections to (x6) 12-Fiber MTP/MPO connections ( Male w/Pins )
• Polarity B, Optimized for Parallel Optics, Base-8 Connectivity
• Guaranteed compatibility when used with recommended cabling
• Designed specifically for use with cables, such as the N844- and N846-Series cables
• Supports 100/120 GbE, internally using OM4 fiber optic cable
• Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB

Overview

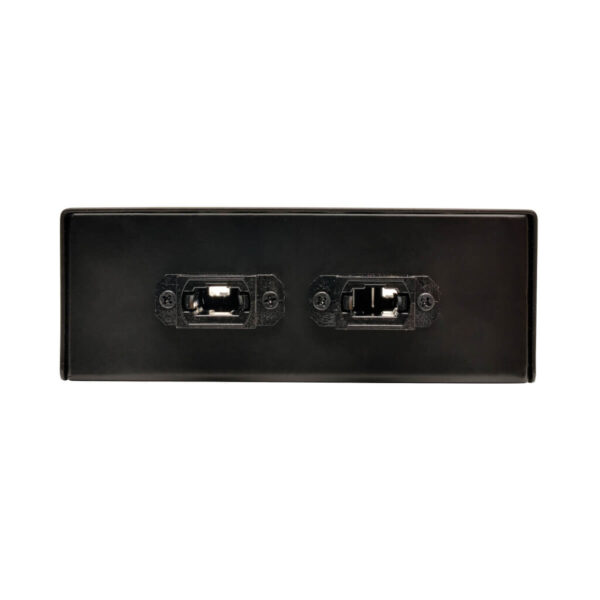

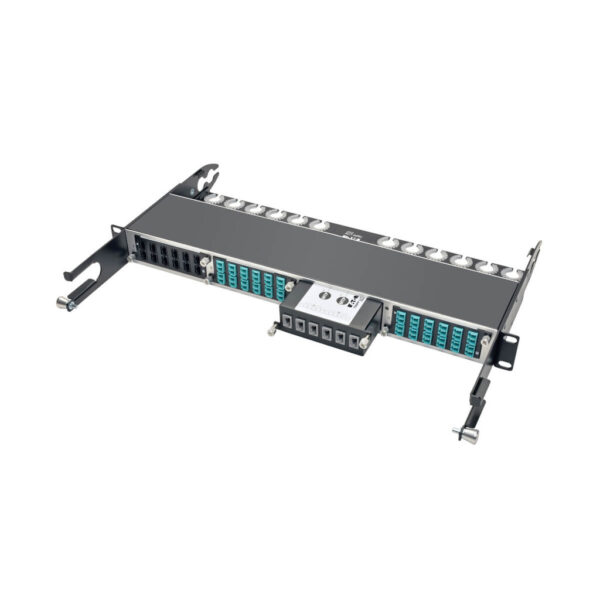

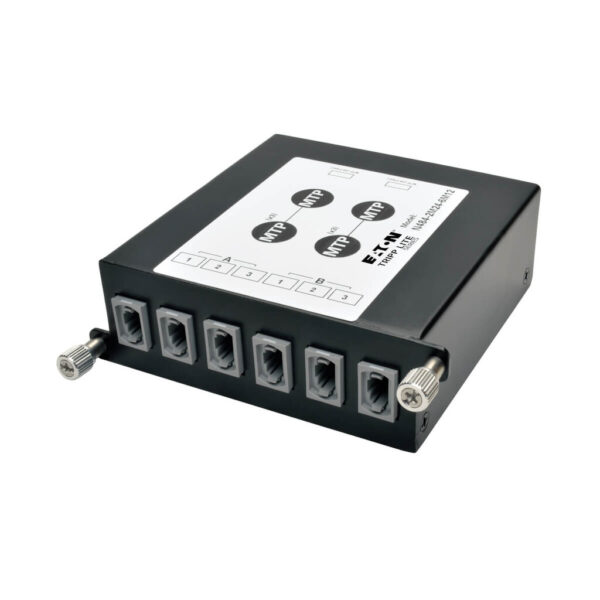

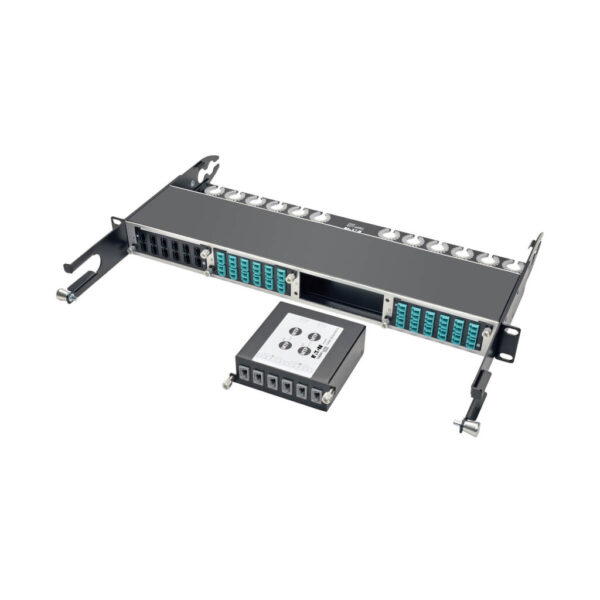

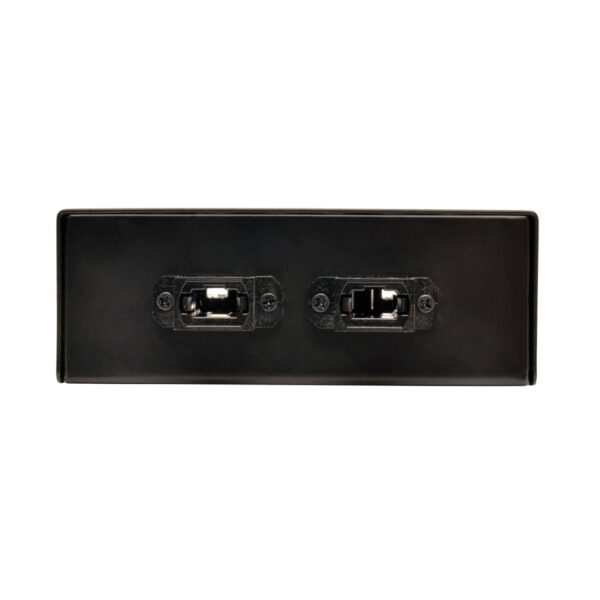

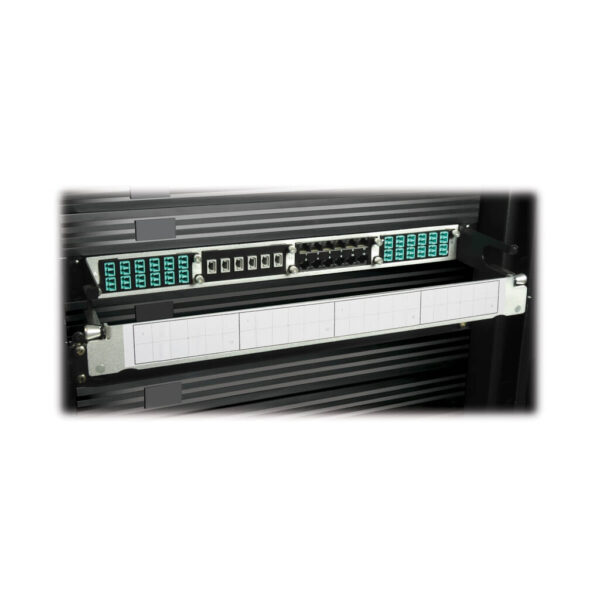

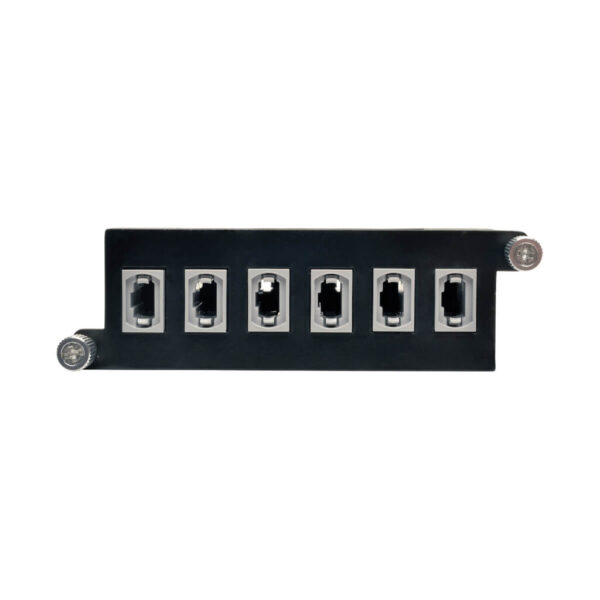

The N484-2M24-6M12 is a high-density 100/120 Gb to 40 Gb Breakout Cassette with (x2) 24-Fiber MTP/MPO connections to (x6) 12-Fiber MTP/MPO connections. Designed specifically for use with N484-00U and N484-01U chassis. Up to four cassettes per N484-01U or one cassette per N484-00U. Supports 100/120 GbE, internally using OM4 fiber optic cable, with an extremely low insertion loss of 0.35db that is well under the IEEE-802.3ae maximum channel loss spec of <25db. Effectively trunks 48-fibers between IDF’s and MDF’s with (x2) 24-Fiber MTP/MPO cables, breaking out to (x6) 12-fiber MTP/MPO connections. Polarity B, Optimized for Parallel Optics, Base-8 Connectivity. Guaranteed compatibility when used with recommended cabling. Designed specifically for use with N844- and N846-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy-duty 1.0mm cold-rolled steel.NOTE: Each 24-fiber cable breaks out to three 12-fiber MTP ports, with only eight of the 12 pins populated (four inner pins unused). QSFP+ and QSFP28 support.

Features

• High Density Fiber Cassette for use with N484-00U and N484-01U chassis’
• 100/120Gb to 40 Gb Breakout Cassette, with (x2) 24-Fiber MTP/MPO connections to (x6) 12-Fiber MTP/MPO connections
• Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB
• Complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements
• Polarity B, Optimized for Parallel Optics, Base-8 Connectivity
• Guaranteed compatibility when used with recommended cabling
• Designed specifically for use with N844- and N846-Series cables
• Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required
• Each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations
• Housing made of heavy duty, 1.0mm Cold Rolled Steel
• Includes dust caps for unused ports

System Requirements

• Polarity B, Optimized for Parallel Optics, Base-8 Connectivity
• Guaranteed compatibility when used with recommended cabling
• Designed specifically for use with N844- and N846-Series cables

Package Includes

• N484-2M24-6M12 100/120Gb to 40Gb Breakout Cassette, (x2) 24-Fiber MTP/MPO to (x6) 12-Fiber MTP/MPO
• Quick Start Guide
