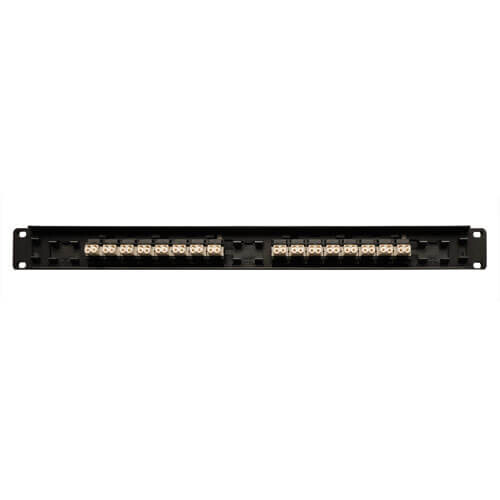

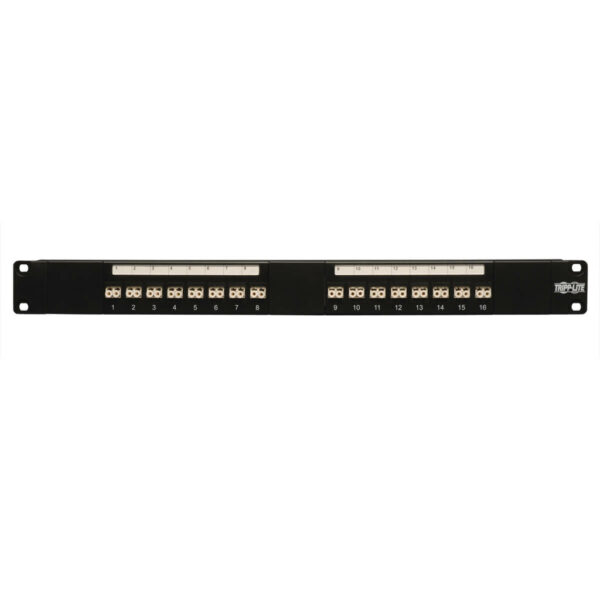

Tripp Lite series 16-Port Fiber Patch Panel, 1U (LC/LC), Multimode or Singlemode
$239.85
Tripp Lite series 16-Port Fiber Patch Panel, 1U (LC/LC), Multimode or Singlemode
Status: On Backorder (Contact us for lead times)
Need project pricing? Add items to your cart to request a custom project quote.
Quick Specs
- Simplified Fiber Optic Patching
- Multimode 62.5/125 or 50/125, Singlemode 9/125
- 16 ports in 1U of rackspace
Overview
This 16-port 1U rack-mount LC/LC Fiber Optic Patch Panel provides efficient and easy management of fiber optic cables in the rack or cabinet. Pre-loaded, feed-through duplex multimode connectors are mounted on a 16-gauge, cold-rolled, black powder-coated steel panel. Use with 62.5/125 or 50/125 Multimode and 9/125 Singlemode fiber Ethernet cables. Panel measures 19 inches wide by 1.75 inches high.
Features
- 16 ports LC/LC
- Only 1U of rack-space
- Use with 62.5/125 or 50/125 fiber patch cables, and 9/125 Singlemode
- Available in ST/ST, SC/SC, LC/LC
Package Includes
- 16 Port LC/LC Duplex Multimode / Singlemode Fiber Optic Patch Panel
| Weight | 1.3 lbs |
|---|---|
| Dimensions | 19.6 × 3 × 2.8 in |
| UPC Code | 037332135360 |
| Number of Ports | 16 |
| Brand | |
| Product Type | Feed-Through |
| Technology | Multimode |
| Side A - Connector 1 | LC DUPLEX (FEMALE) |
| Side B - Connector 1 | LC DUPLEX (FEMALE) |
| Shipping Dimensions (hwd / cm) | 7.11 x 7.62 x 49.78 |
| Shipping Weight (kg) | 0.59 |
| Panel Style | Pass-Through |
| Product Compliance | RoHS |
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
