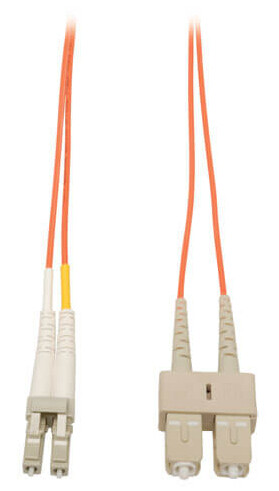

Tripp Lite series Duplex Multimode 50/125 Fiber Patch Cable (LC/SC), 15M (50 ft.)

Name: Tripp Lite series Duplex Multimode 50/125 Fiber Patch Cable (LC/SC), 15M (50 ft.)
Brand: Tripp Lite
SKU: N516-15M
Price: 32.77 CAD
Availability: BackOrder

$32.77

Brand: Tripp Lite

Part Number (MPN): N516-15M

UPC / GTIN: 037332119551

Datasheet: PDF

Tripp Lite series Duplex Multimode 50/125 Fiber Patch Cable (LC/SC), 15M (50 ft.)

Status: On Backorder (Contact us for lead times)

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Premium PVC 50/125 multimode patch cables
Attenuation loss meets or exceeds the latest industry standards
Higher bandwidth optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications

Overview

This 15-meter multimode duplex Fibre Channel SC/LC Ethernet cable is manufactured from 50/125 zipcord fiber. The cable has SC connectors on one end and LC at the other, a PVC jacket, and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10 Gbps networks as well. Also available in 1, 2, 3, 5, 10, 20, 30 and 50 meter lengths. Search “N516-” to bring up all lengths. Also search “N506-” for SC-SC cables, and “N520-” for LC-LC cables.

Features

Constructed with 50/125 micron cable
Length – 15M
Use on fiber and fiber channel installations
SC male to LC male connectors
Higher bandwidth optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications
Number of fibers: 2
Fiber type: all glass graded index
Core diameter: two 50+/-3 microns
CLAD diameter: 125+/-2 microns
Primary coating diameter: 245+/-15 microns
Primary coating material: acrylate
Secondary coating diameter: 900+/-50 microns
Secondary coating material: PVC
Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Numeric aperture: .275 nominal
Proof test level: 100,000 PSI
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze

System Requirements

Any fiber optic hardware or NIC card requiring multimode duplex cable with LC/SC connectors

Package Includes

15M duplex MMF cable LC/SC 50/125 fiber

Weight	0.4 lbs
Dimensions	7.3 × 6.4 × 1 in
UPC Code	037332119551
Cord Length	49.21
Brand	Tripp Lite
Technology	Multimode
Optical Mode	OM2
Side A - Connector 1	LC DUPLEX (MALE)
Side B - Connector 1	SC DUPLEX (MALE)
Endface Polish	PC
Cable Jacket Color	Orange
Connector Color	White; Beige
Cable Jacket Material	LSZH
Cable Jacket Rating	OFNR
Clad Diameter (microns)	125
Core Diameter (microns)	50
Number of Fibers	2
Cable Length (m)	15.00
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)
Shipping Dimensions (hwd / cm)	2.54 x 16.26 x 18.54
Shipping Weight (kg)	0.18
Fiber Cable Length	15M (49.2 ft)
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Storage Humidity Range	35% to 65% RH, Non-Condensing
Network Compatibility	1 Gbps (Gigabit); 10 Gbps; 25 Gbps
Attenuation @ 850NM	3.0 dB/km
Insertion Loss	LC ≤ 0.20 dB; SC ≤ 0.20 dB
Product Compliance	RoHS; REACH
Product Warranty Period (Worldwide)	Lifetime limited warranty
