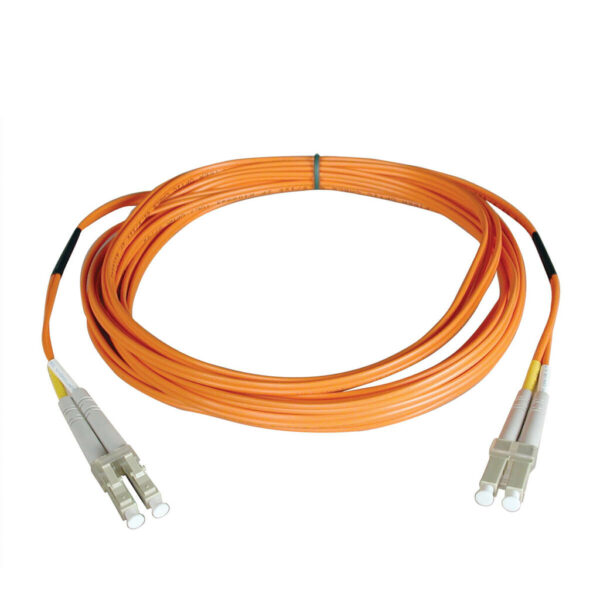

Tripp Lite series Duplex Multimode 50/125 Fiber Patch Cable (LC/LC), 6M (20 ft.)

Name: Tripp Lite series Duplex Multimode 50/125 Fiber Patch Cable (LC/LC), 6M (20 ft.)
Brand: Tripp Lite
SKU: N520-06M
Price: 19.17 CAD
Availability: InStock

$19.17

Brand: Tripp Lite

Part Number (MPN): N520-06M

UPC / GTIN: 037332149244

Datasheet: PDF

Tripp Lite series Duplex Multimode 50/125 Fiber Patch Cable (LC/LC), 6M (20 ft.)

Manufacturer Warehouse: 62 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Premium PVC multimode patch cables
Attenuation loss meets or exceeds the latest industry standards
Higher bandwidth optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications

Overview

This multimode duplex Fibre Channel optic LC/LC Ethernet cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10 Gbps networks as well. Also available in 1, 2, 3, 10, 15, 20, 25, 30 and 50 meter lengths. Enter “N520-” in the search field to bring up all lengths. For LC-SC cables, search “N516-“, and for SC-SC, search “N506-“.

Features

Constructed with 50/125 micron cable
Length – 6 Meters ( 20ft )
Use on fiber and fibre channel installations
LC male to LC male connectors
Higher bandwidth optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications
Number of fibers: 2
Fiber type: all glass graded index
Core diameter: two 50+/-3 microns
CLAD diameter: 125+/-2 microns
Primary coating diameter: 245+/-15 microns
Primary coating material: acrylate
Secondary coating diameter: 900+/-50 microns
Secondary coating material: PVC
Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Numeric aperture: .275 nominal
Proof test level: 100,000 PSI
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze

System Requirements

Any fiber optic hardware or NIC card requiring multimode duplex cable with LC/LC connectors

Package Includes

6 Meters ( 20ft ) duplex MMF cable LC/LC 50/125 fiber

Weight	0.1 lbs
Dimensions	0.5 × 7 × 9 in
UPC Code	037332149244
Cord Length	19.72
Brand	Tripp Lite
Technology	Multimode
Optical Mode	OM2
Side A - Connector 1	LC DUPLEX (MALE)
Side B - Connector 1	LC DUPLEX (MALE)
Endface Polish	PC
Cable Jacket Color	Orange
Connector Color	Gray
Cable Jacket Material	LSZH
Cable Jacket Rating	OFNR
Clad Diameter (microns)	125
Core Diameter (microns)	50
Number of Fibers	2
Cable Length (m)	6.01
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)
Shipping Dimensions (hwd / cm)	22.86 x 17.78 x 1.27
Shipping Weight (kg)	0.05
Fiber Cable Length	6M (19.7 ft)
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Storage Humidity Range	35% to 65% RH, Non-Condensing
Network Compatibility	1 Gbps (Gigabit); 10 Gbps; 25 Gbps
Attenuation @ 850NM	3.0 dB/km
Insertion Loss	≤ 0.20 dB
Product Compliance	RoHS; REACH
Product Warranty Period (Worldwide)	Lifetime limited warranty
